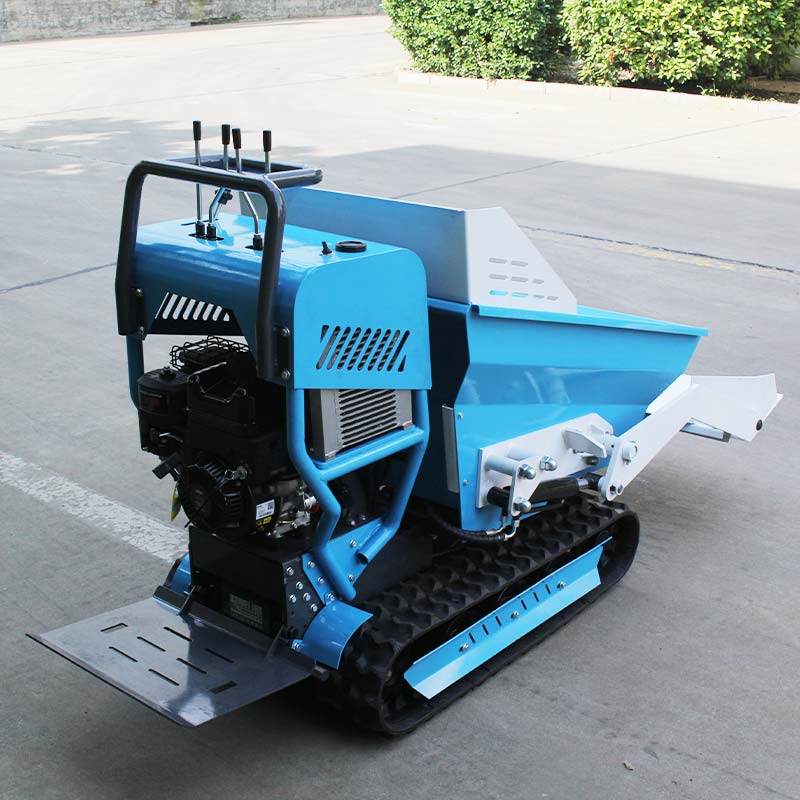

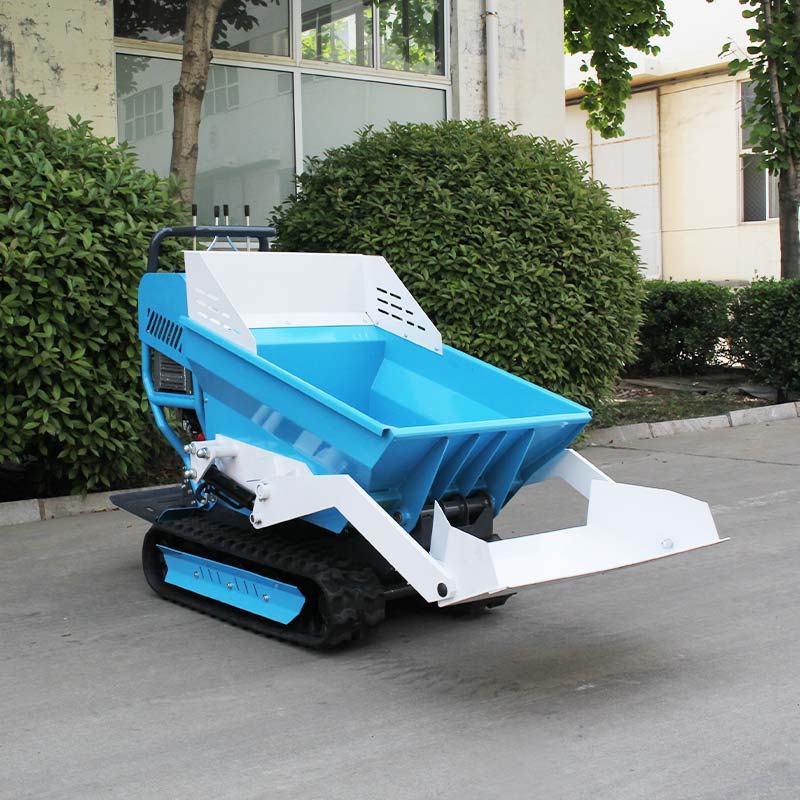

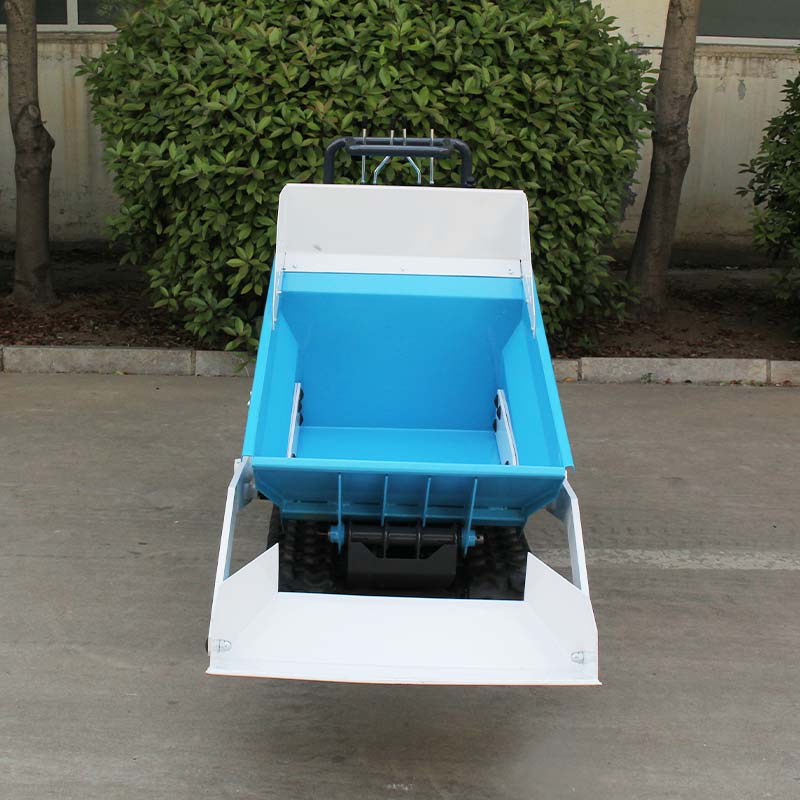

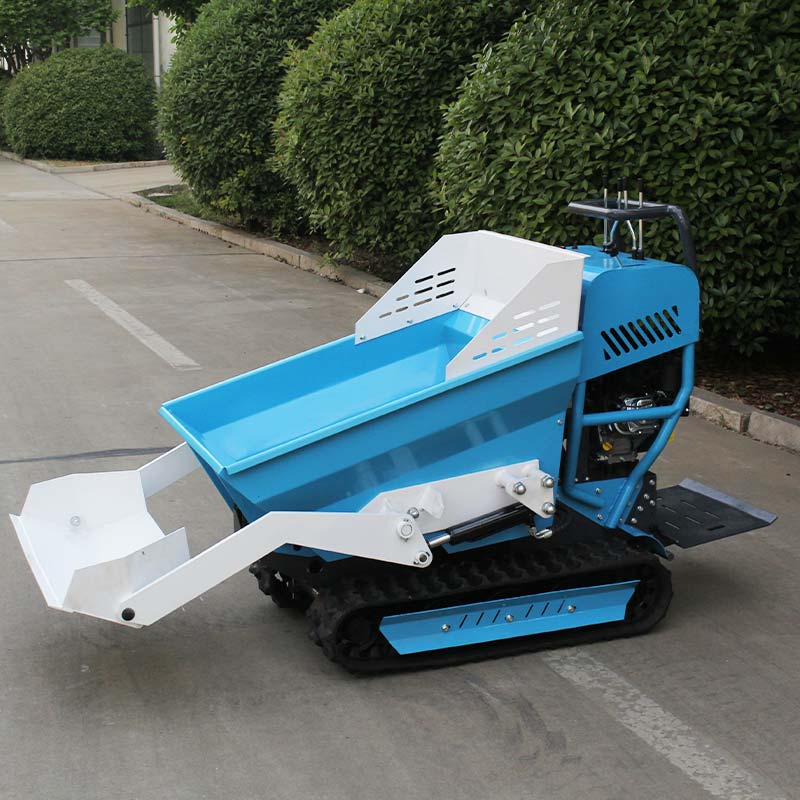

The CSTAR CSG-T500 Mini Tracked Dumper has a
500 kg rated payload and a 0.22 m³ dump body capacity.
Its tracked chassis is intended for material transport on sites where ground conditions and access are more important than road travel speed.
CSG-T500 Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| General | Brand / Model | CSTAR CSG-T500 |
| Capacity | Rated Payload | 500 kg |
| Weight | Operating Weight | 500 kg |
| Dump Body | Capacity | 0.22 m³ |
| Performance | Climbing Ability | 20° |
| Chassis | Running Gear | Tracked Chassis |
500 kg Payload vs. 500 kg Operating Weight
These two 500 kg figures describe different things.
Rated payload is the material load the dumper is specified to carry,
while operating weight is the weight of the machine itself.
They should not be added together or treated as the same specification when comparing dumpers.
Where the T500 Fits
The T500 makes the most sense when the job calls for moving loads up to 500 kg through ground conditions where a tracked chassis is preferred.
Before ordering, compare the machine dimensions and dump-body size with the site’s access width and unloading point.
Common Ordering Questions
Should I choose a tracked dumper or a wheeled dumper?
Start with the working surface. A tracked chassis is usually the more relevant comparison where the route includes loose, soft or uneven ground and low-speed site movement.
Is the 0.22 m³ body always able to carry 500 kg of material?
Not necessarily. Material density matters. A full body of dense material can reach the payload limit before the body is filled to its full volume.
Send the material type, typical load weight, site access width, working surface and destination country.
