The CSTAR CSGW-06Q 0.6 ton mini excavator is the narrowest machine in this group, with a listed width of 700 mm, height of 1,684 mm, and operating weight of 660 kg. These dimensions make it relevant for gates, garden paths, interior access, and lightweight transport situations that exclude conventional compact excavators.

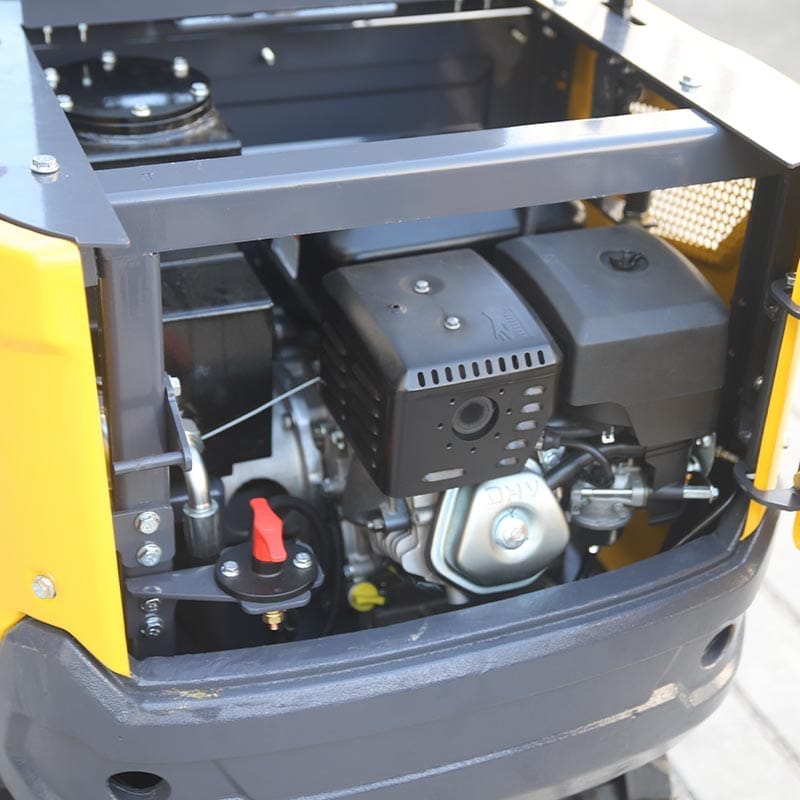

Powered by a Zongcheng TR306 engine rated at 6.3 kW, the CSGW-06Q provides a 1,200 mm digging depth, 2,354 mm digging radius, and 7.2 kN digging force. It uses rubber tracks and includes an adjustable dozer blade, standard bucket, and canopy.
Use the 700 mm Width Where Access Is the Main Constraint
Measure every gate, doorway, corner, and surface transition between unloading and the work area. The 700 mm width is useful only when there is sufficient side clearance for controlled travel and when the 1,684 mm height also clears overhead obstacles.
The 660 kg operating weight can reduce transport demands and ground loading, but the machine’s reach must still fit the task. The 1,200 mm digging depth is suited to shallow trenches and small landscape work; deeper excavation should not be assumed from the compact footprint.
Attachment selection should remain proportional to the machine. Provide material type and intended tool when requesting a breaker, auger, grapple, rake, ripper, or alternative bucket so working clearance and compatibility can be considered together.
CSGW-06Q Specifications
| Parameter | Specification |
|---|---|
| Model | CSGW-06Q |
| Operating Weight | 660 kg |
| Overall Length | 2,287 mm |
| Overall Width | 700 mm |
| Overall Height | 1,684 mm |
| Maximum Digging Radius | 2,354 mm |
| Maximum Digging Depth | 1,200 mm |
| Maximum Digging Height | 2,214 mm |
| Maximum Loading Height | 1,486 mm |
| Maximum Digging Force | 7.2 kN |
| Engine Brand | Zongcheng |
| Engine Model | TR306 |
| Maximum Power | 6.3 kW |
| Travel Speed | 0–4 km/h |
| Gradeability | 30° |
Standard and Optional Equipment
Standard Equipment
- Zongcheng TR306 engine
- Imported cylinders and oil pipes with NOK seals
- Twin gear pump
- Adjustable dozer blade
- Wear-resistant engineering rubber tracks
- Adjustable operator seat
- Standard bucket
- Standard canopy
Optional Equipment
- Hydraulic breaker
- Ripper
- Log grapple
- Rake
- Auger
- Large-capacity bucket
- Mud bucket
Request a Quote for the CSGW-06Q
Send CSTAR Machinery the complete access route, required excavation depth, surface condition, material, attachments, transport limits, and destination.
