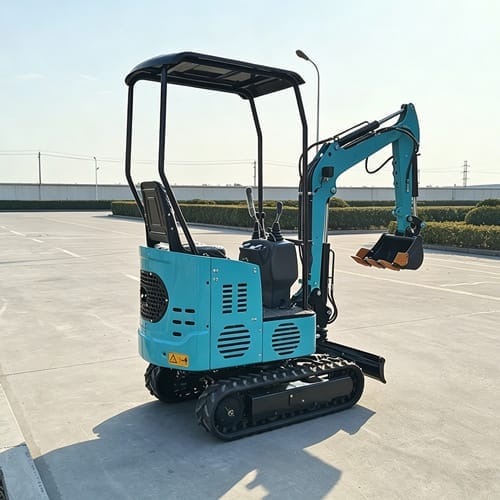

The CSTAR CSGW-12K mini excavator has a listed operating weight of 1,000 kg and a 930 mm transport width. It is sized for narrow-access excavation, landscaping, utility trenches, and property work where a larger machine may be unable to reach the work area.
The machine provides a 1,650 mm maximum digging depth, 2,400 mm digging radius, and 7.2 kN digging force. Briggs & Stratton XR13.5 and KOOP 192F engine options are listed for this model.
Start Selection with the 930 mm Access Width
For backyards, narrow gates, and interior renovation routes, measure the tightest clear opening rather than the nominal doorway size. The machine width is 930 mm, but additional clearance is needed for safe travel, surface irregularities, and operator visibility.
The excavator is 2,200 mm long and 2,200 mm high for transport. Its 1,000 kg listed operating weight can simplify trailer selection, but the transport calculation must include attachments, fuel, tie-down equipment, and the trailer’s legal payload.
Choose the engine option according to destination-market support and the planned duty cycle. For trenching or loading work, also verify that the 1,650 mm digging depth and 1,850 mm loading height suit the job before specifying buckets or other tools.
CSGW-12K Specifications
| Parameter | Specification |
|---|---|
| Model | CSGW-12K |
| Operating Weight | 1,000 kg |
| Transport Length | 2,200 mm |
| Transport Width | 930 mm |
| Transport Height | 2,200 mm |
| Maximum Digging Radius | 2,400 mm |
| Maximum Digging Depth | 1,650 mm |
| Maximum Digging Height | 2,550 mm |
| Maximum Loading Height | 1,850 mm |
| Maximum Digging Force | 7.2 kN |
| Engine Brand | Briggs & Stratton / KOOP |
| Engine Model | XR13.5 / 192F |
| Maximum Power | 13.5 hp / 10 hp |
| Travel Speed | 0–4 km/h |
| Gradeability | 30° |
Request a Quote for the CSGW-12K
Send the narrowest access measurement, excavation depth, soil condition, preferred engine, attachments, trailer limits, and destination to CSTAR Machinery.
