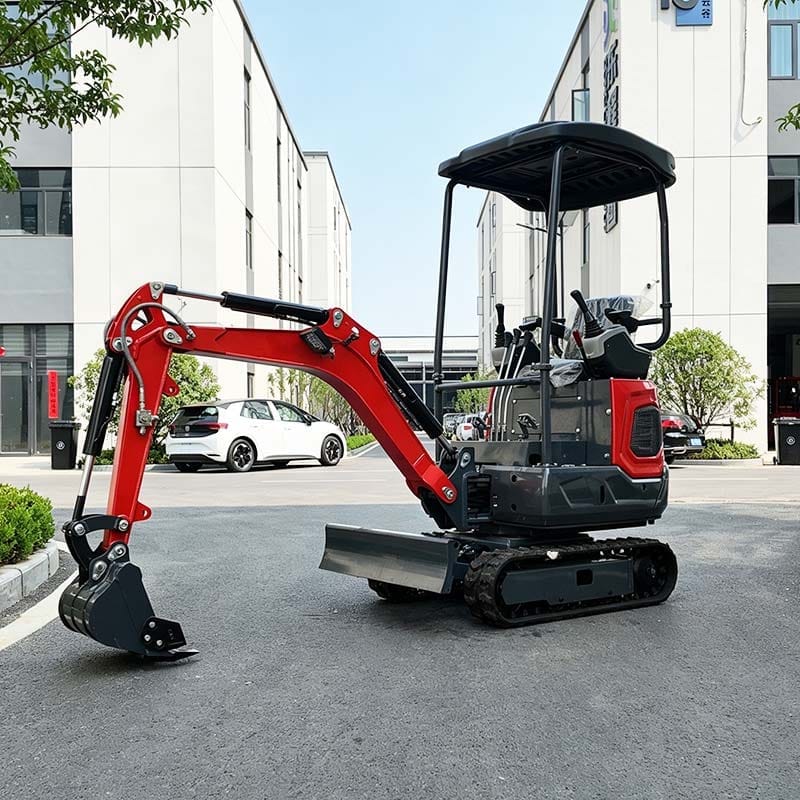

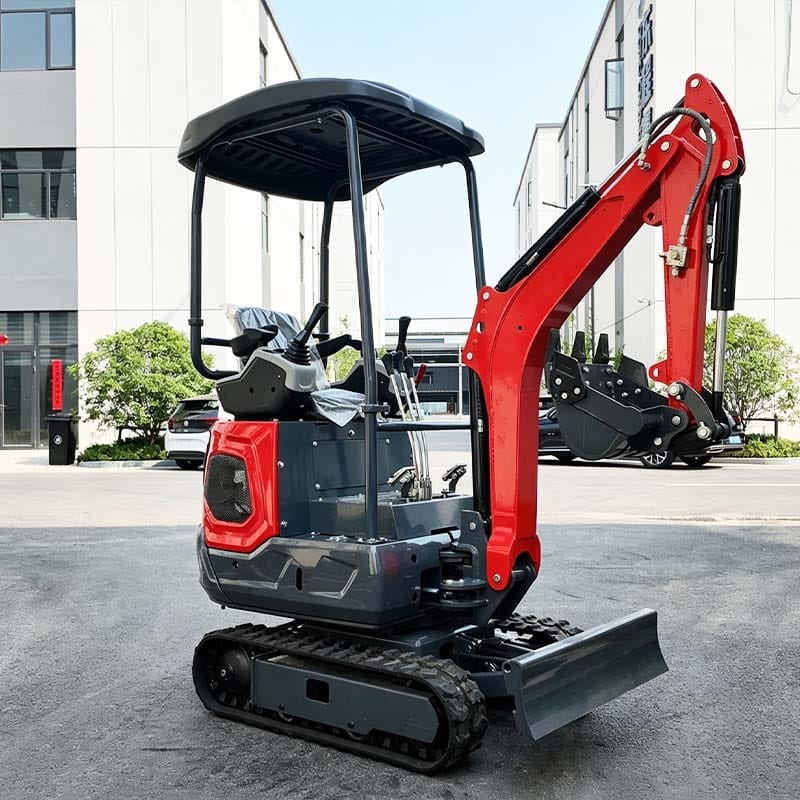

The CSTAR CSGW-12Q 1.2 ton mini excavator uses an adjustable-width undercarriage with a listed overall width of 930–1,105 mm. This allows the machine to contract for restricted access and expand for a wider working stance once it reaches the excavation area.
The 1,250 kg excavator provides a 1,717 mm digging depth, 3,057 mm digging radius, and 9 kN digging force. KOOP 192F and Briggs & Stratton XR13.5 engine options are listed, while the standard configuration specifies the KOOP engine.
Contract for Access, Expand for the Working Position
The 930 mm minimum width should be compared with the narrowest gate or passage on the delivery route. The 1,105 mm expanded width is relevant at the work face, where available space, ground condition, excavation edge distance, and intended attachment affect machine positioning.
Overall length is 2,981 mm and height is 2,287 mm. These dimensions need to be checked separately from track width because a route that accepts the retracted undercarriage may still contain height restrictions or corners that limit the upper structure.
With a 1,717 mm digging depth and 3,057 mm radius, the machine is suited to compact trenching and landscape work within its stated envelope. Select the engine and attachments according to local service support, material type, hydraulic duty, and transport limits.
CSGW-12Q Specifications
| Parameter | Specification |
|---|---|
| Model | CSGW-12Q |
| Operating Weight | 1,250 kg |
| Overall Length | 2,981 mm |
| Overall Width | 930–1,105 mm |
| Overall Height | 2,287 mm |
| Maximum Digging Radius | 3,057 mm |
| Maximum Digging Depth | 1,717 mm |
| Maximum Digging Height | 2,717 mm |
| Maximum Loading Height | 1,866 mm |
| Maximum Digging Force | 9 kN |
| Engine Brand | KOOP / Briggs & Stratton |
| Engine Model | 192F / XR13.5 |
| Maximum Power | 10 hp / 13.5 hp |
| Travel Speed | 0–6 km/h |
| Gradeability | 30° |
Standard and Optional Equipment
Standard Equipment
- KOOP 192F engine

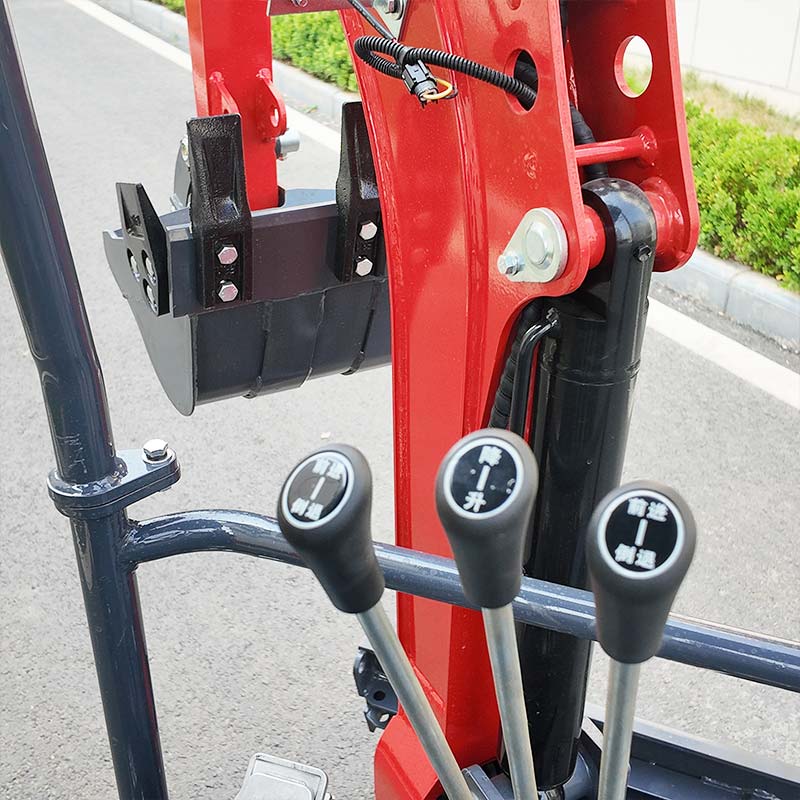

- Imported cylinders and oil pipes with NOK seals
- Twin gear pump
- Adjustable dozer blade
- Wear-resistant engineering rubber tracks
- Adjustable operator seat
- Standard bucket
- Standard canopy
Optional Equipment
- Hydraulic breaker
- Ripper
- Log grapple
- Rake
- Auger
- Large-capacity bucket
- Mud bucket
Request a Quote for the CSGW-12Q
Share the minimum access width, available working width, trench profile, preferred engine, attachments, ground condition, transport method, and destination with CSTAR Machinery.
