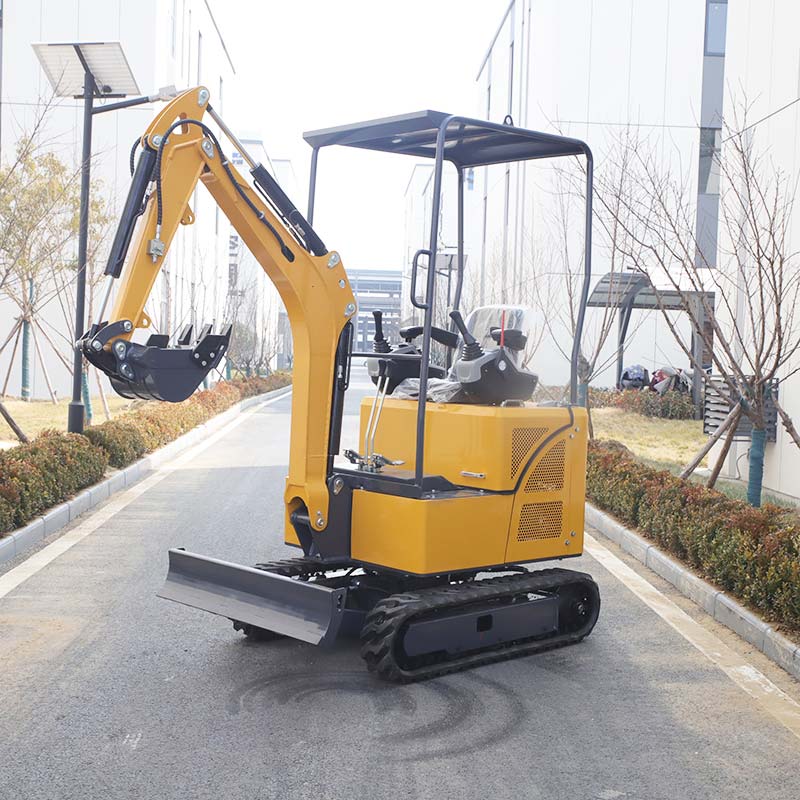

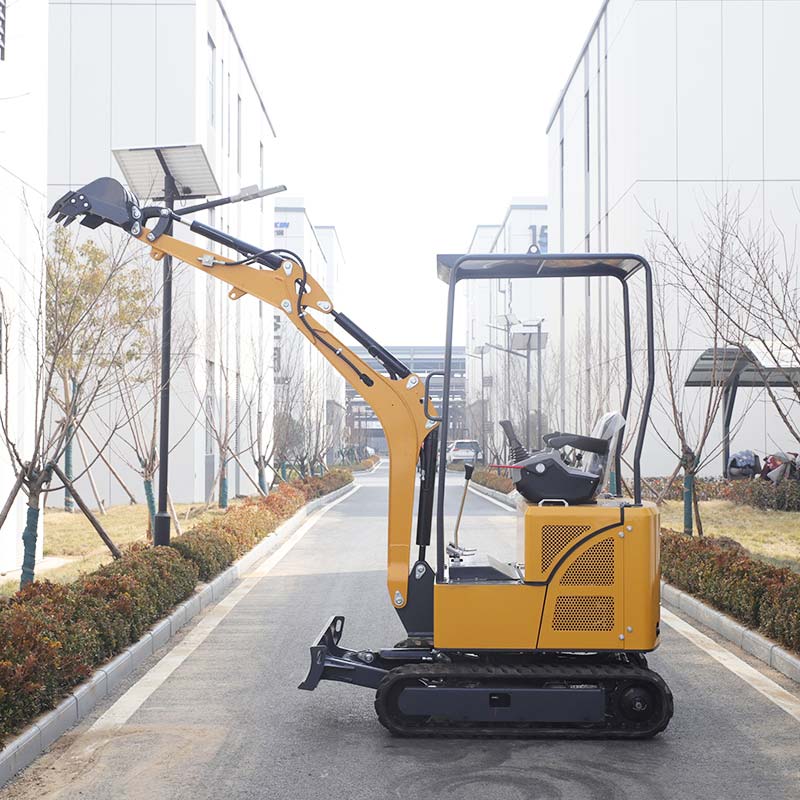

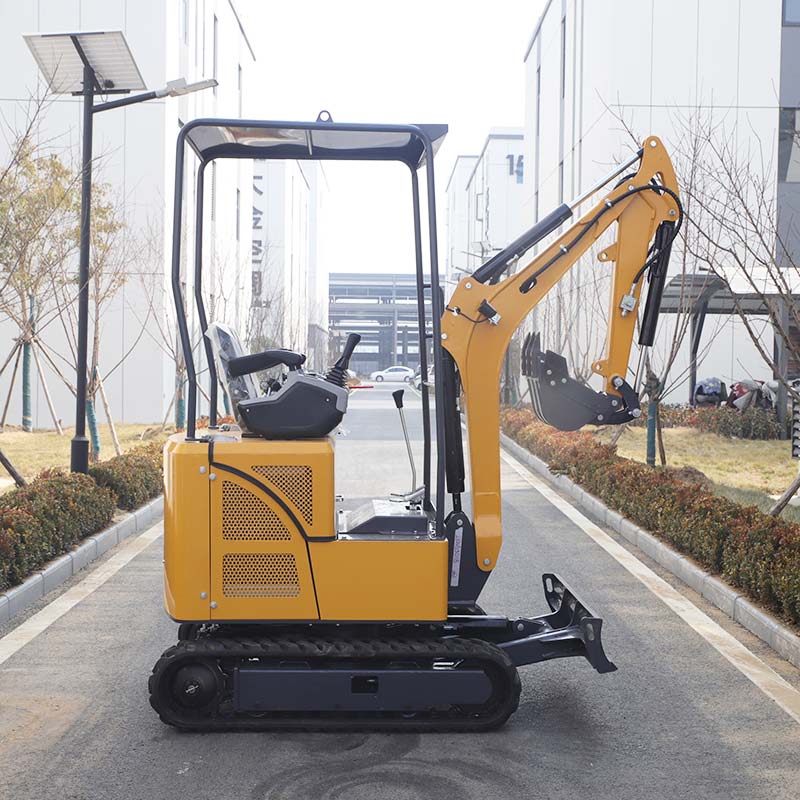

The CSTAR CSGW-17Q mini excavator is a 1,500 kg crawler machine powered by a 24 hp Laidong KM385B engine. It is configured for compact earthmoving, utility installation, landscaping, concrete-breaking support, and drainage work.
The hydraulic package includes a Taifeng variable-displacement piston pump and Taifeng multi-way valve. A hinged engine-compartment hood supports service access, while the adjustable dozer blade and rubber tracks suit mixed small-site duties.
Hydraulic Layout and Service Access Define This Configuration
For buyers planning frequent attachment changes or daily multi-task operation, the pump, valve, hose routing, and service access deserve the same attention as digging depth. The hinged hood provides access to the engine area, while the listed Taifeng hydraulic components identify the core system to discuss during parts planning.
The machine measures 3,260 mm long, 1,100 mm wide, and 2,400 mm high. Its working data lists a 1,880 mm digging depth and 3,448 mm digging radius, so the machine should be positioned according to the whole excavation profile rather than the deepest point only.
Available tools include a breaker, ripper, grapple, rake, auger, and alternative buckets. State which tools will be used most often and what material they will handle; this helps align the hydraulic configuration and bucket choice with the daily workload.
CSGW-17Q Specifications
| Parameter | Specification |
|---|---|
| Model | CSGW-17Q |
| Operating Weight | 1,500 kg |
| Overall Length | 3,260 mm |
| Overall Width | 1,100 mm |
| Overall Height | 2,400 mm |
| Maximum Digging Radius | 3,448 mm |
| Maximum Digging Depth | 1,880 mm |
| Maximum Digging Height | 2,910 mm |
| Maximum Loading Height | 2,150 mm |
| Maximum Digging Force | 10 kN |
| Engine Brand | Laidong |
| Engine Model | KM385B |
| Maximum Power | 24 hp |
| Travel Speed | 0–6 km/h |
| Gradeability | 30° |
Standard and Optional Equipment
Standard Equipment
- Laidong KM385B engine
- Imported cylinders and oil pipes with NOK seals
- Hinged engine-compartment hood
- Taifeng variable-displacement piston pump
- Taifeng multi-way valve
- Adjustable dozer blade
- Wear-resistant engineering rubber tracks
- Adjustable operator seat
- Standard bucket
- Standard canopy
Optional Equipment
- Hydraulic breaker
- Ripper
- Log grapple
- Rake
- Auger
- Large-capacity bucket
- Mud bucket
Request a Quote for the CSGW-17Q
Share the excavation task, material, attachments, access route, working gradient, daily hours, parts requirements, and destination with CSTAR Machinery.
