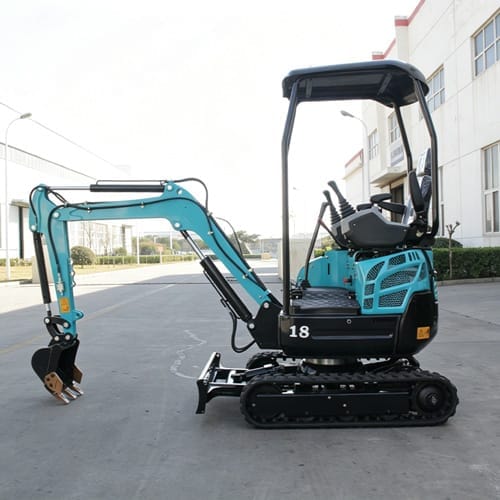

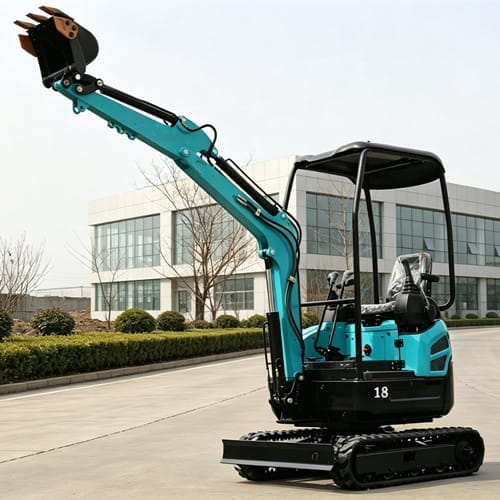

The CSTAR CSGW-18K mini excavator packages a 1,910 mm maximum digging depth into a listed transport length of 2,200 mm. With a 1,450 kg operating weight, 1,100 mm width, and Kubota D722 engine, it is intended for compact excavation work where machine access and transport size matter.
Its working envelope includes a 3,200 mm digging radius, 2,850 mm digging height, and 1,900 mm loading height. The specification also lists 15 kN digging force and travel speeds up to 8 km/h.
A Short Transport Envelope for Restricted Sites
The 2,200 mm transport length is the first figure to check when a project involves a small trailer, limited storage space, or confined access. Width and height still need independent checks: the machine is listed at 1,100 mm wide and 2,200 mm high.
At the excavation point, confirm that the 1,910 mm depth and 3,200 mm radius cover the full trench profile without forcing the machine too close to an unsupported edge. The 1,900 mm loading height must also match the receiving vehicle or material pile.

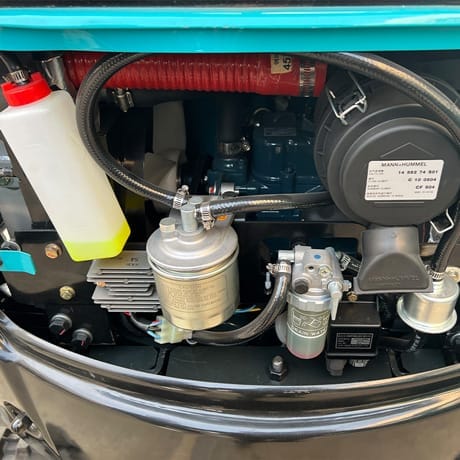

The Kubota D722 is the specified engine for this model. For projects involving breakers, augers, or other hydraulic tools, include attachment type and duty cycle in the inquiry because attachment compatibility cannot be determined from engine power alone.
CSGW-18K Specifications
| Parameter | Specification |
|---|---|
| Model | CSGW-18K |
| Operating Weight | 1,450 kg |
| Transport Length | 2,200 mm |
| Transport Width | 1,100 mm |
| Transport Height | 2,200 mm |
| Maximum Digging Radius | 3,200 mm |
| Maximum Digging Depth | 1,910 mm |
| Maximum Digging Height | 2,850 mm |
| Maximum Loading Height | 1,900 mm |
| Maximum Digging Force | 15 kN |
| Engine Brand | Kubota |
| Engine Model | D722 |
| Maximum Power | 14 hp |
| Travel Speed | 0–8 km/h |
| Gradeability | 30° |
Request a Quote for the CSGW-18K
Share your access limits, required digging depth, loading method, soil type, attachments, trailer capacity, and destination with CSTAR Machinery.
