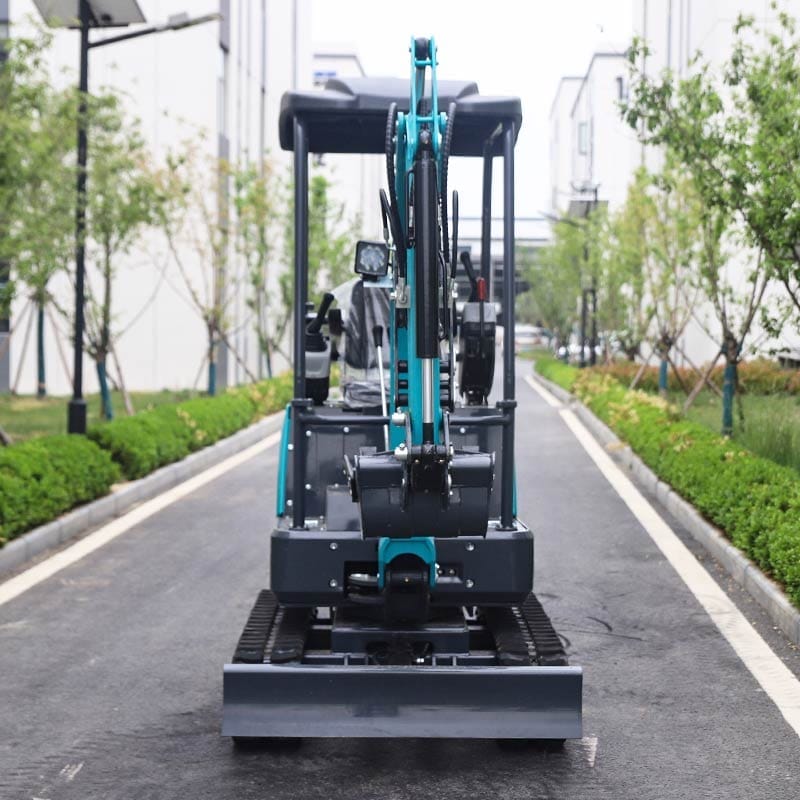

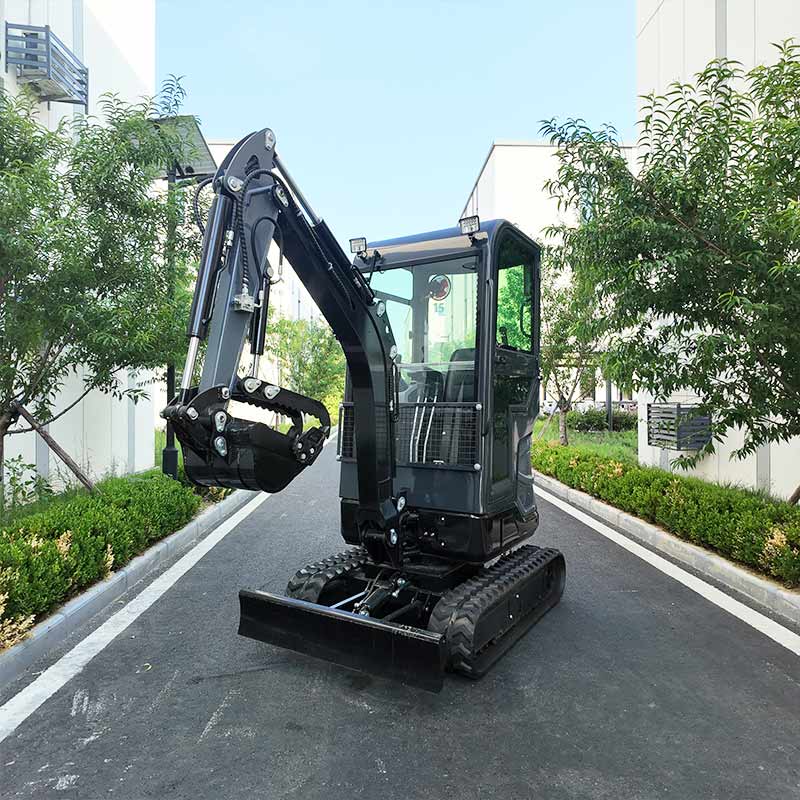

The CSTAR CSGW-18Q mini excavator is a 1,500 kg compact crawler excavator for utility work, landscaping, renovation, ditch cleaning, and small construction projects. Its listed working range includes a 2,091 mm digging depth, 3,496 mm digging radius, and 10 kN digging force.
The standard equipment list specifies the Laidong KM385B engine, while the powertrain table also lists a Kubota D722 option. A twin gear pump, adjustable dozer blade, rubber tracks, canopy, and standard bucket form the core working configuration.
Configure the Hydraulic Tools Around the Actual Task
The CSGW-18Q can be quoted with tools including a hydraulic breaker, ripper, grapple, rake, auger, large-capacity bucket, or mud bucket. Each tool changes the machine’s working geometry, hydraulic demand, transport mass, and ground-pressure requirements, so the attachment should be selected with the base machine.
For access planning, use the complete 3,249 × 1,120 × 2,314 mm machine envelope. At the work face, compare the 2,091 mm digging depth and 3,496 mm radius with the trench profile, then check that the receiving position falls within the machine’s loading range.
Engine selection should reflect local service coverage and project requirements. Buyers should also provide the material type, attachment duty cycle, operating gradient, and daily working hours so the hydraulic and cooling requirements can be reviewed together.
CSGW-18Q Specifications
| Parameter | Specification |
|---|---|
| Model | CSGW-18Q |
| Operating Weight | 1,500 kg |
| Overall Length | 3,249 mm |
| Overall Width | 1,120 mm |
| Overall Height | 2,314 mm |
| Maximum Digging Radius | 3,496 mm |
| Maximum Digging Depth | 2,091 mm |
| Maximum Digging Height | 3,028 mm |
| Maximum Loading Height | 2,190 mm |
| Maximum Digging Force | 10 kN |
| Engine Brand | Laidong / Kubota |
| Engine Model | KM385B / D722 |
| Maximum Power | 24 hp / 13.9 hp |
| Travel Speed | 0–6 km/h |
| Gradeability | 30° |
Standard and Optional Equipment
Standard Equipment
- Laidong KM385B engine
- Imported cylinders and oil pipes with NOK seals
- Twin gear pump

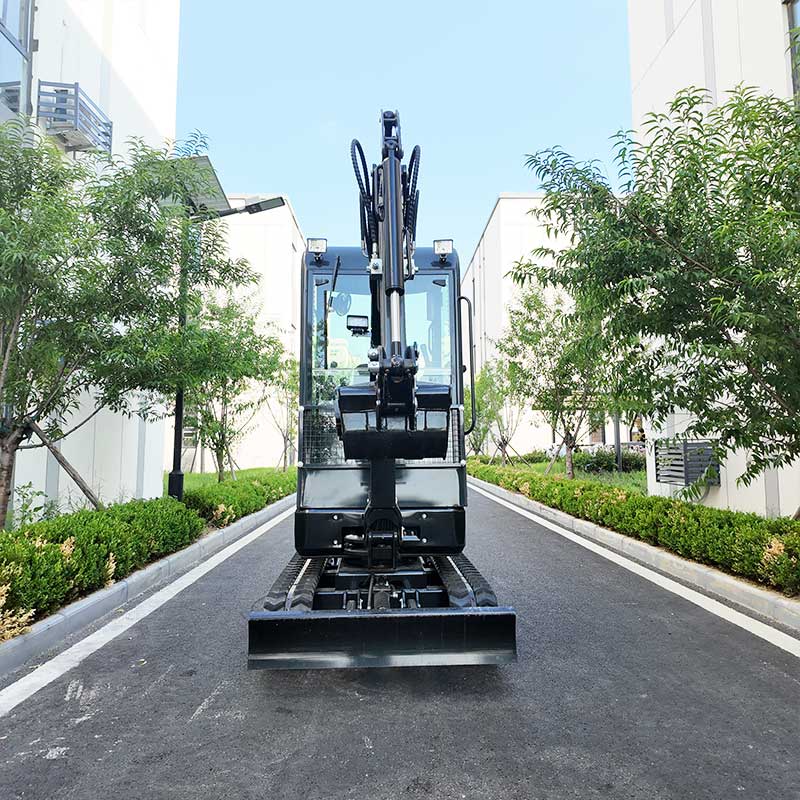

- Adjustable dozer blade
- Wear-resistant engineering rubber tracks
- Adjustable operator seat
- Standard bucket
- Standard canopy
Optional Equipment
- Hydraulic breaker
- Ripper
- Log grapple
- Rake
- Auger
- Large-capacity bucket
- Mud bucket
Request a Quote for the CSGW-18Q
Tell CSTAR Machinery the excavation profile, access dimensions, preferred engine, material, attachments, gradient, daily hours, and destination for a project-specific quotation.
