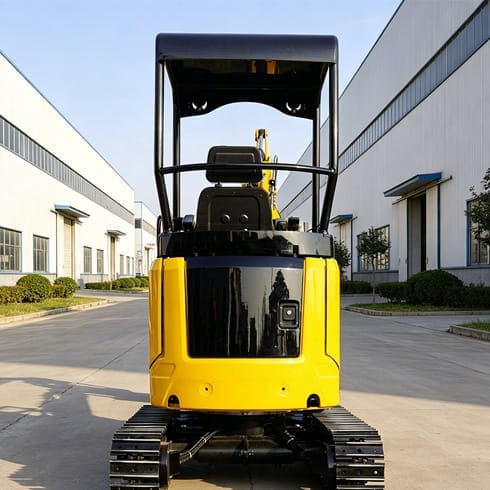

The CSTAR CSGW-22K 2.2 ton mini excavator is powered by a Yanmar 3TNV80 engine rated at 20 hp. The supplied specification lists a 2,100 kg operating weight, 2,050 mm maximum digging depth, and 15 kN maximum digging force.
A travel speed of up to 8 km/h distinguishes this model for sites where the excavator must reposition frequently between work areas. Its 1,100–1,400 mm adjustable transport width also allows access width and working stance to be considered separately.
Evaluate the Complete Work Cycle, Not Digging Depth Alone
The 2,050 mm digging depth should be reviewed together with the 3,800 mm digging radius and 2,133 mm loading height. This combination determines whether the machine can reach the excavation line and place material into the intended truck, skip, or stockpile position.

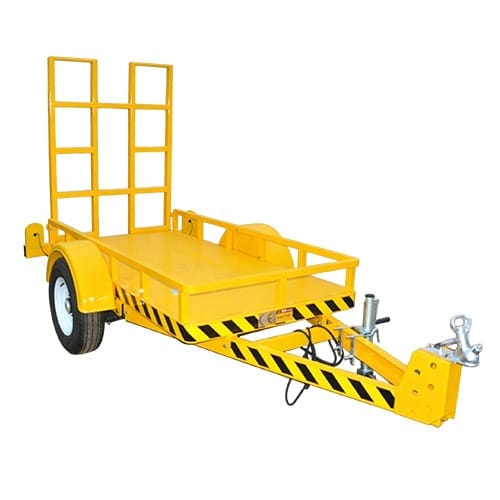

For transport planning, allow for a 3,550 mm length and 2,200 mm height. Trailer capacity must be based on the listed operating weight plus the bucket, optional attachments, fuel, and any transport accessories.
The Yanmar-only engine listing simplifies powertrain selection, but buyers should still confirm local parts and service availability. Ground bearing capacity, slope, working radius, and attachment mass remain central to safe jobsite planning.
CSGW-22K Specifications
| Parameter | Specification |
|---|---|
| Model | CSGW-22K |
| Operating Weight | 2,100 kg |
| Transport Length | 3,550 mm |
| Transport Width | 1,100–1,400 mm |
| Transport Height | 2,200 mm |
| Maximum Digging Radius | 3,800 mm |
| Maximum Digging Depth | 2,050 mm |
| Maximum Digging Height | 3,155 mm |
| Maximum Loading Height | 2,133 mm |
| Maximum Digging Force | 15 kN |
| Engine Brand | Yanmar |
| Engine Model | 3TNV80 |
| Maximum Power | 20 hp |
| Travel Speed | 0–8 km/h |
| Gradeability | 30° |
Request a Quote for the CSGW-22K
Provide the trench dimensions, loading height, site access, ground condition, attachment list, working hours, and destination so CSTAR Machinery can prepare the appropriate offer.
