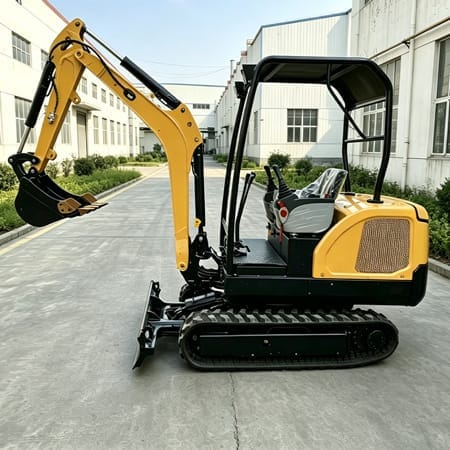

The CSTAR CSGW-25K mini excavator has a listed operating weight of 2,500 kg and combines a 2,241 mm digging depth with 16 kN of digging force. Its transport width can be adjusted from 1,100 to 1,400 mm, allowing the undercarriage width to be matched to access and working-stability requirements.
Three engine configurations are listed: Laidong KM385, Perkins 403D-11, and Yanmar 3TNV80. This gives buyers a practical choice based on local fuel requirements, parts availability, and service support rather than treating the engine as a secondary specification.
Match Engine Choice and Undercarriage Width to the Jobsite
For restricted entrances, begin with the 1,100 mm minimum transport width. Once the excavator is inside the working area, the listed 1,400 mm maximum width can provide a broader stance where ground conditions and site layout permit.
The 3,700 mm transport length and 2,200 mm height must be checked against trailer dimensions, gates, and overhead restrictions. At the work face, plan around the 3,800 mm maximum digging radius and 2,290 mm loading height rather than using digging depth alone.
Engine availability may vary by destination. When requesting a quotation, specify the preferred engine, local emissions requirements, expected attachment use, soil condition, and service network so the machine can be configured for the actual operating environment.
CSGW-25K Specifications
| Parameter | Specification |
|---|---|
| Model | CSGW-25K |
| Operating Weight | 2,500 kg |
| Transport Length | 3,700 mm |
| Transport Width | 1,100–1,400 mm |
| Transport Height | 2,200 mm |
| Maximum Digging Radius | 3,800 mm |
| Maximum Digging Depth | 2,241 mm |
| Maximum Digging Height | 3,200 mm |
| Maximum Loading Height | 2,290 mm |
| Maximum Digging Force | 16 kN |
| Engine Brand | Laidong / Perkins / Yanmar |
| Engine Model | KM385 / 403D-11 / 3TNV80 |
| Maximum Power | 25 hp / 24 hp / 24 hp |
| Travel Speed | 0–6 km/h |
| Gradeability | 30° |
Request a Quote for the CSGW-25K
Send CSTAR Machinery your preferred engine, access width, digging depth, ground condition, attachments, and destination. We will prepare a configuration and quotation for your project.
