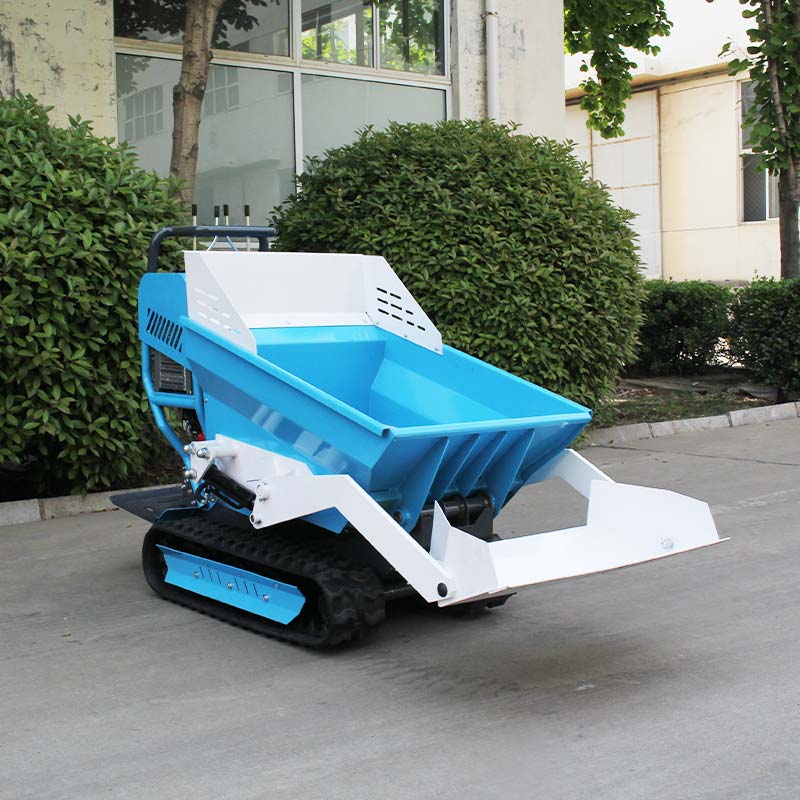

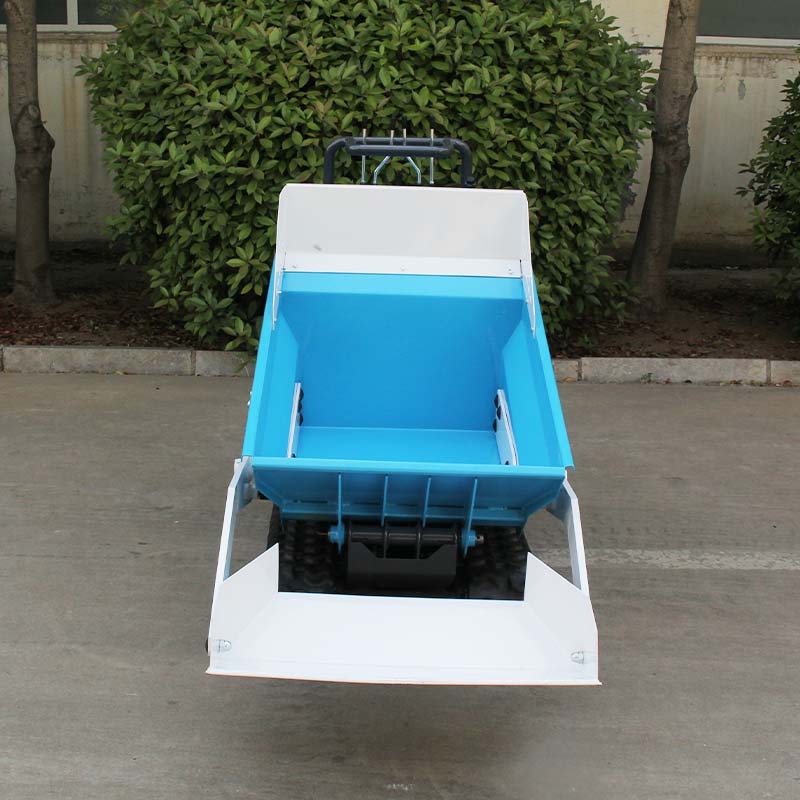

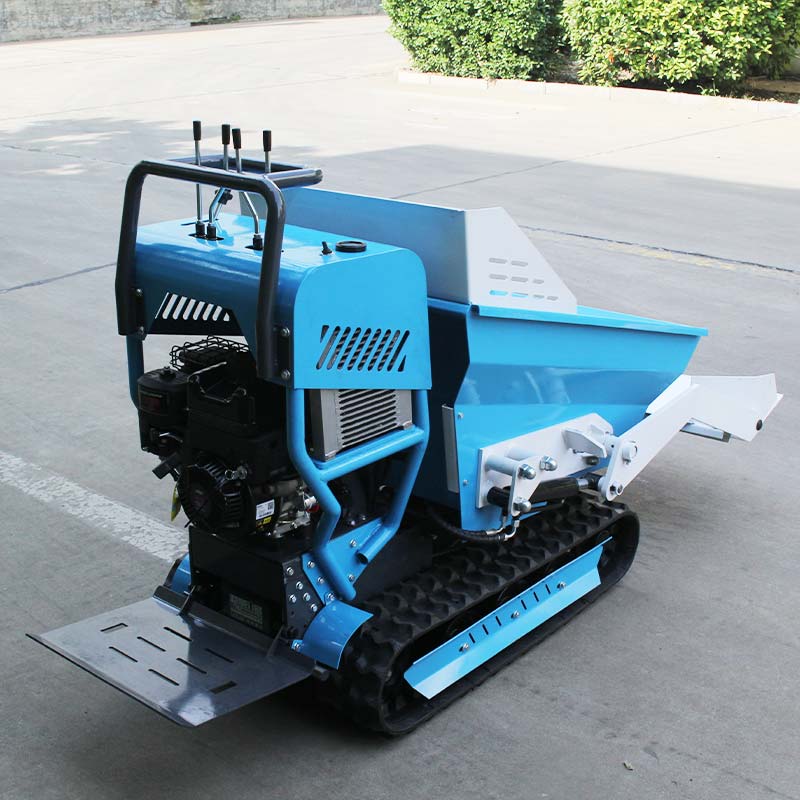

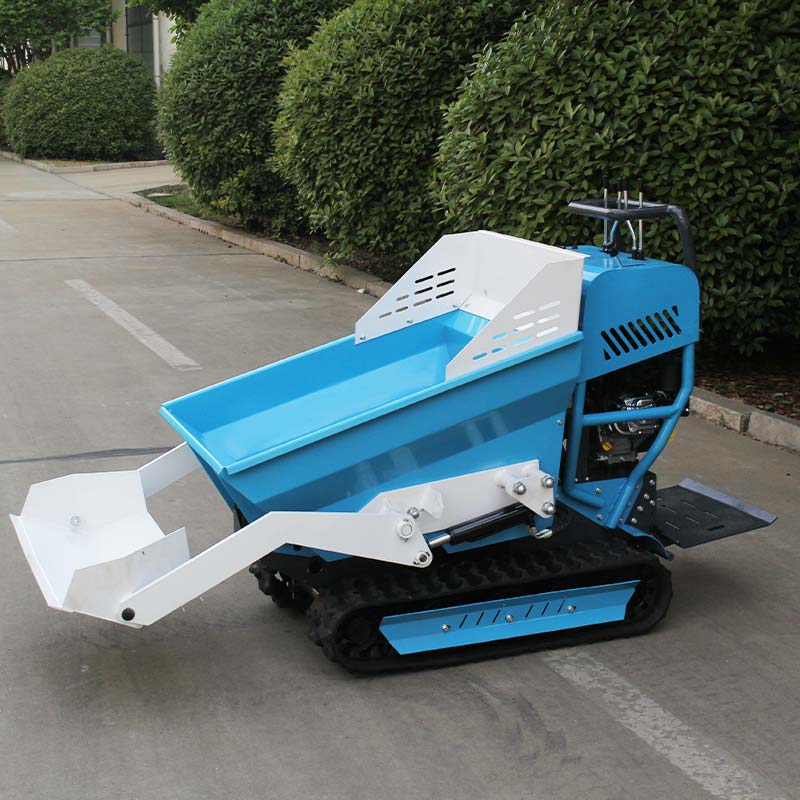

Parameters
| Parameter | Specification |
|---|---|
| Basic performance parameters | |
| Operating weight | 500kg |
| Cargo box capacity | 0.22m³ |
| Climbing ability | 20° |
| Maximum load | 500kg |
| Travel speed | 1.7-3.5km/h |
| Minimum turning radius | 95mm |
| Track center distance | 509mm |
| Minimum ground clearance | 85mm |
| Track contact length | 811mm |
| Cargo box tilting angle | 86° |
| Bucket tilting angle | 109° |
| Travel motor | |
| Brand | Northern Hydraulics |
| Displacement | 200cc |
| Maximum working pressure | 20Mpa |
| Maximum torque | 805Nm |
| Dimensions | |
| Overall dimensions | 1735*844*1255mm |
| Overall height | 1255mm |
| Overall width | 844mm |
| Overall length | 1735mm |
| Engine | |
| Brand | Koop/Rato/B&S |
| Model | 178F/R210/RX6.5 |
| Rated power | 4.2/4.8/4.78kw |
| Cylinder | 1 |
| Intake method | Naturally aspirated |
| Emission standard | EPA/ERUO5 |
| Fuel tank capacity | 3.1L |

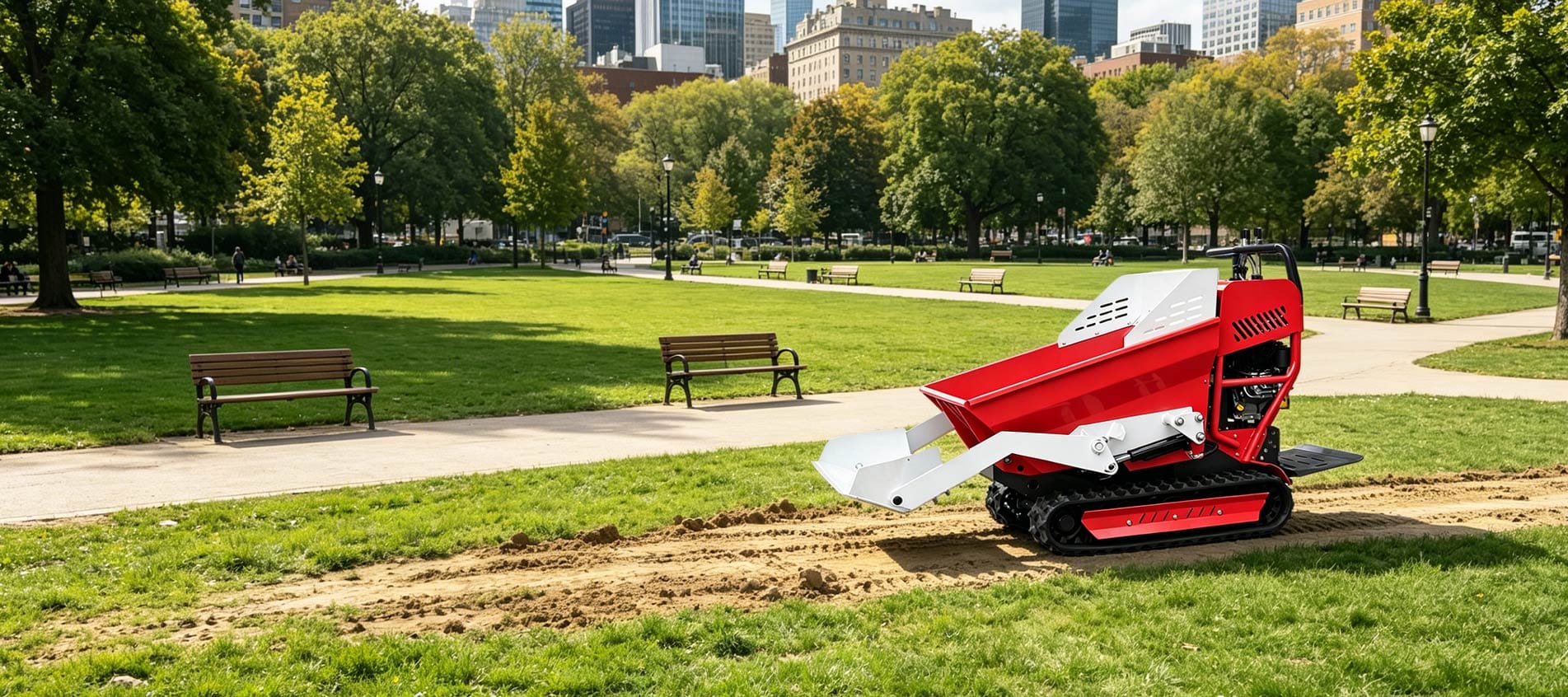

PRODUCT APPLICATION
It is mainly used in situations where the working site is small, the ground is uneven, and the work content changes frequently. It is suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residential buildings, barns, livestock sheds, airport runways, etc. It can also be used as auxiliary equipment for large-scale engineering construction machinery.
FEATURE
- Compact and flexible, suitable for operations on small terrain and in narrow spaces.
- Simple and convenient operation, easy to transport.
- Made of high-quality thickened steel with plastic spraying treatment, anti-rust and corrosion-resistant.
- 360° free body rotation, flexible structure brings convenience to outdoor work.
