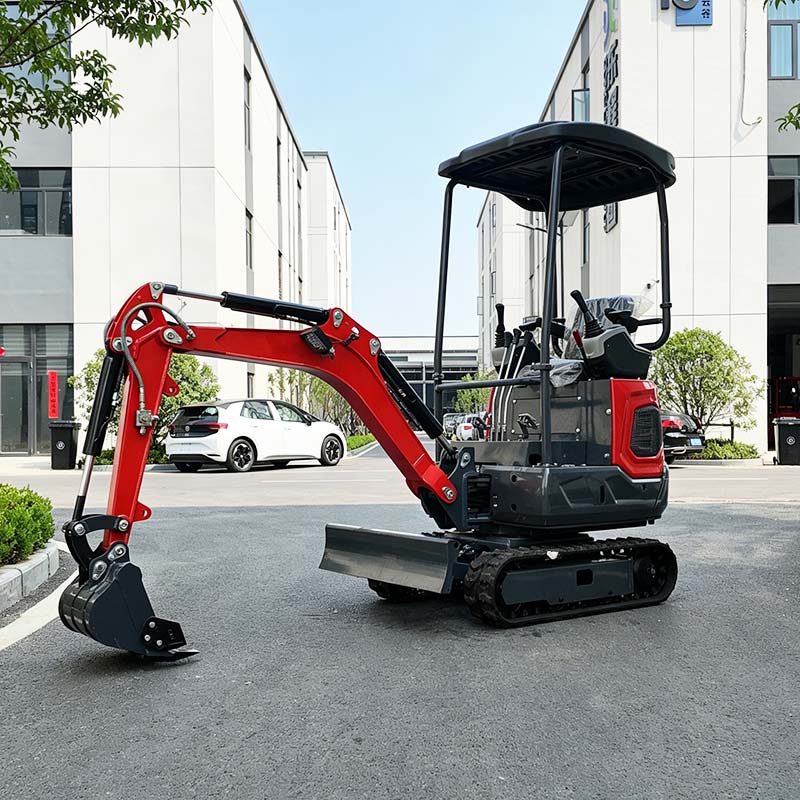

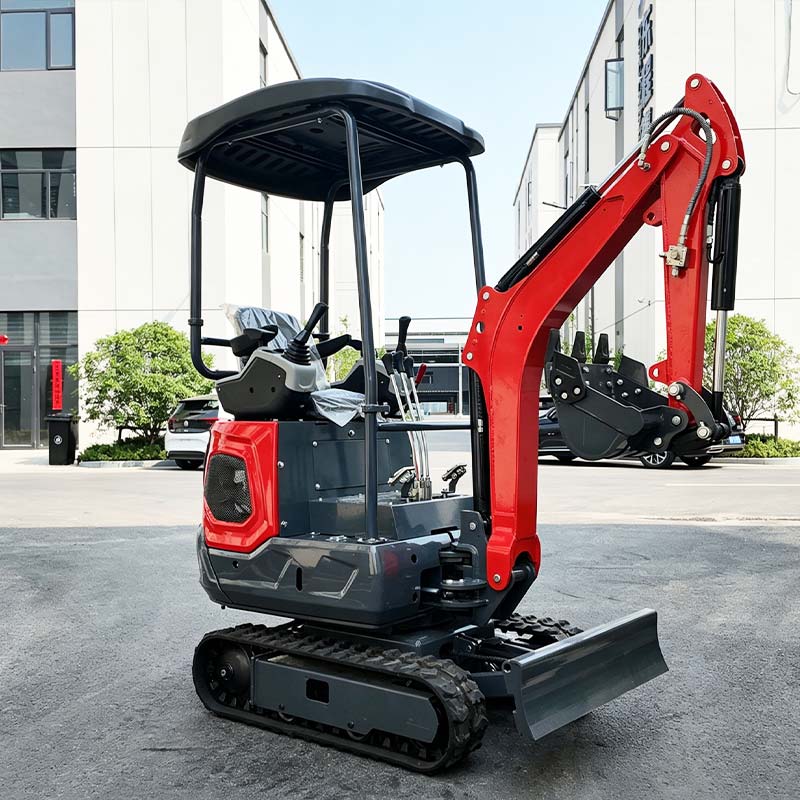

CSGW-12Q
| Item | Specification |
|---|---|
| MODEL | CSGW-12Q |
| WEIGHT | |
| Operating weight | 1250kg |
| SIZE | |
| Total length | 2981mm |
| Total width | 930-1105mm |
| Total height | 2287mm |
| Max. digging radius | 3057mm |
| Max. digging depth | 1717mm |
| Max. digging height | 2717mm |
| Counterweight ground clearance | 1866mm |
| Max. digging force | 9KN |
| DRIVE | |
| Engine brand | KOOP / B&S |
| Engine model | 192F / XR13.5 |
| Maximum power | 10HP / 13.5HP |
| WALKING CHARACTERISTICS | |
| Walking speed | 0-6km/h |
| Climbing angle | 30° |
Product Application
It is suitable for various working scenarios, including road repair, concrete breaking, cable laying, water pipe installation, landscaping, river/ditch dredging, and construction projects. It features multiple functions such as excavation, breaking, ditch cleaning, drilling, and bulldozing.
Features
- Compact & Flexible: Ideal for operation in small terrain and narrow spaces.
- Easy to Operate & Transport: Simple operation design for convenient use and transportation.
- Durable Construction: Made of high-quality thickened steel with plastic-sprayed finish, offering excellent rust and corrosion resistance.
- High Reliability: Equipped with internationally renowned brand reducers for smooth and stable operation.
- 360° Rotation: The 360° rotating body brings greater flexibility and convenience to outdoor work.
Standard Configuration
- KOOP 192F engine
- Imported oil cylinders and oil pipes with built-in NOK sealing rings
- Twin gear pump
- Adjustable bulldozer blade
- Wear-resistant engineering rubber track
- Adjustable driving seat
- Standard bucket
- Standard canopy
Optional Configuration
- Hydraulic hammer
- Ripper
- Log grapple
- Rake
- Auger drill
- Large capacity bucket
- Mud bucket
Application
Applicable to indoor demolition, toilet upgrading, engineering dismantling, barren land reclamation, small earthwork projects, municipal engineering, concrete breaking, river dredging, and other working environments.
