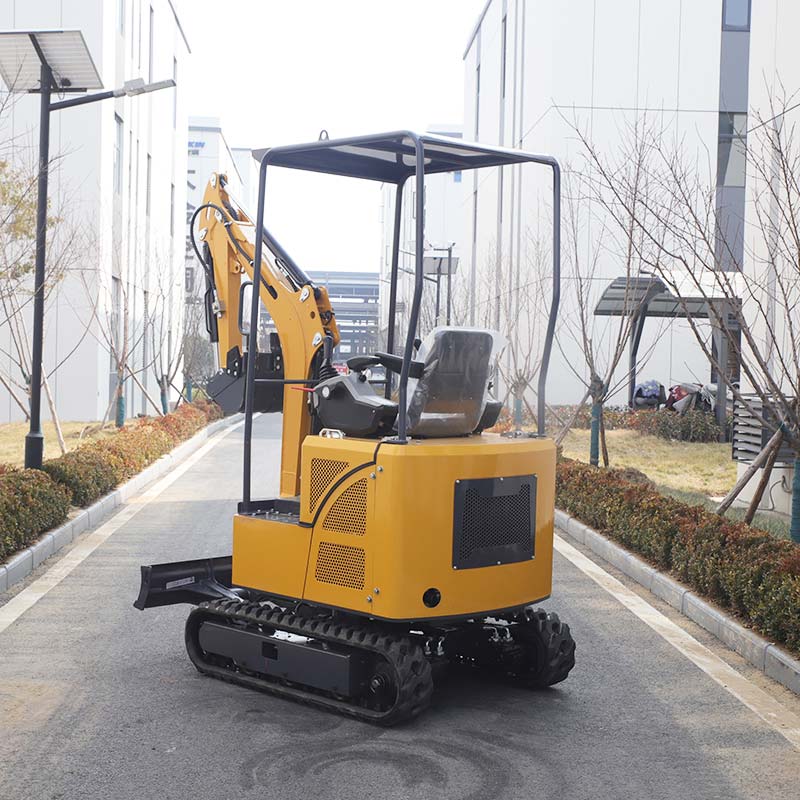

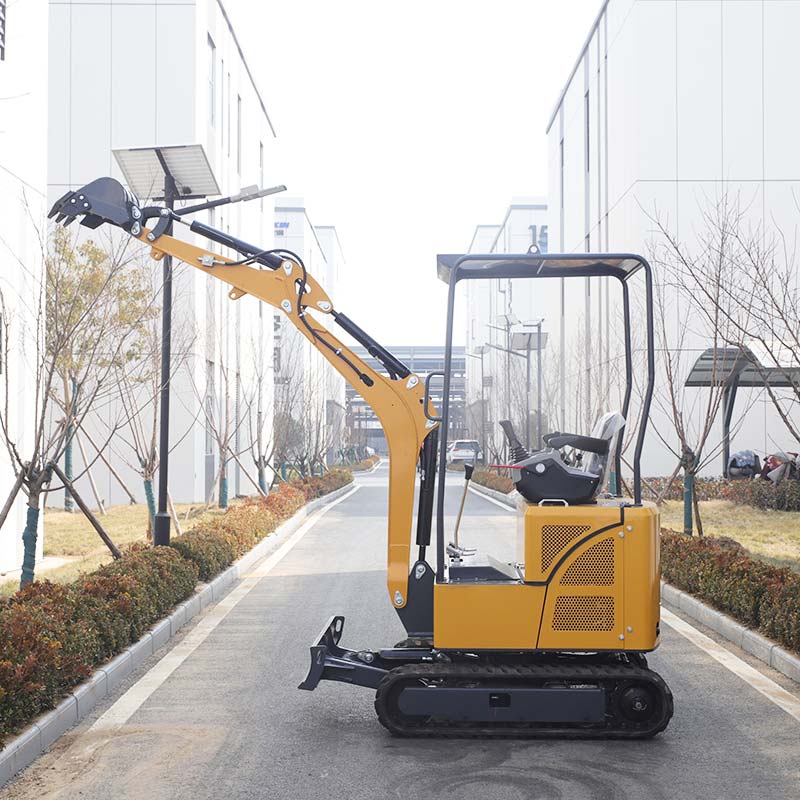

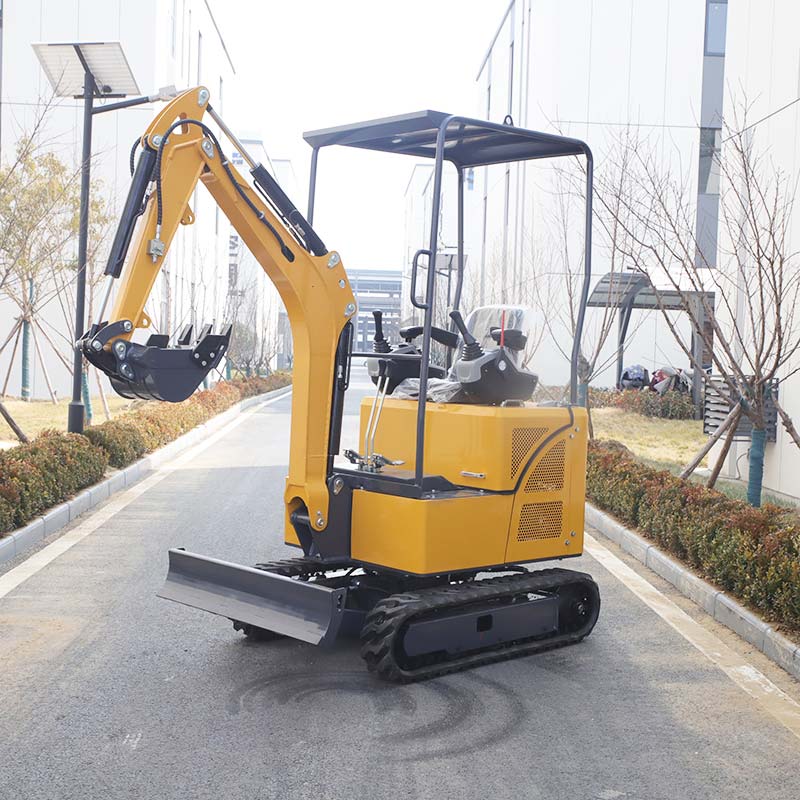

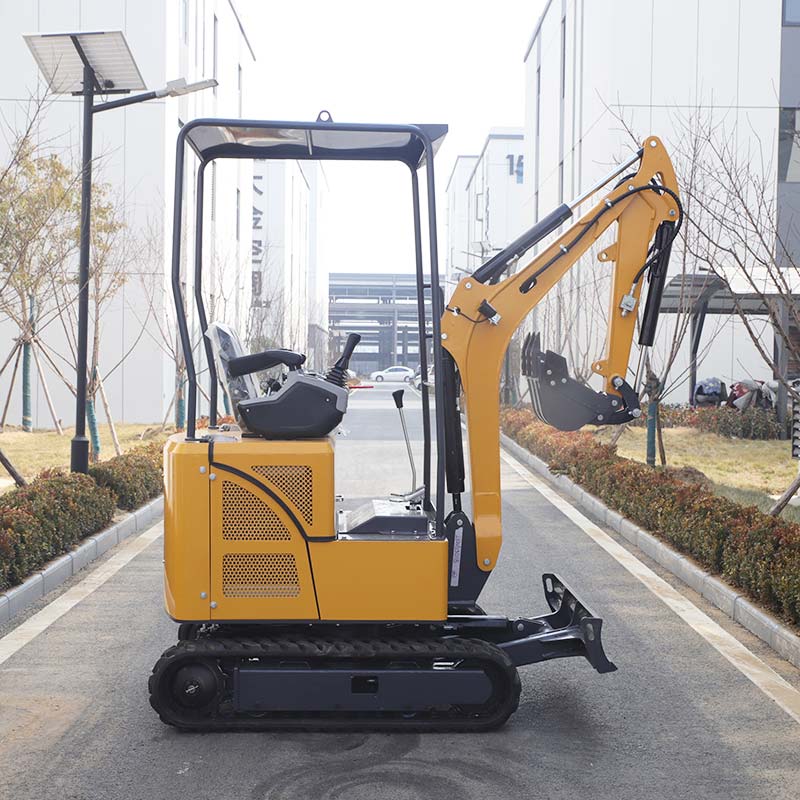

CSGW-17Q

Item	Specification
MODEL	CSGW-17Q
WEIGHT
Operating weight	1500kg
SIZE
Total length	3260mm
Total width	1100mm
Total height	2400mm
Max. digging radius	3448mm
Max. digging depth	1880mm
Max. digging height	2910mm
Counterweight ground clearance	2150mm
Max. digging force	10KN
DRIVE
Engine brand	LAIDONG
Engine model	KM385B
Maximum power	24HP
WALKING CHARACTERISTICS
Walking speed	0-6km/h
Climbing angle	30°

Product Application

It is used in various working environments, including road repair, concrete breaking, cable laying, water pipe installation, landscaping, river and ditch dredging, and construction projects. It is equipped with multiple functions such as excavation, breaking, ditch cleaning, drilling, and bulldozing.

Features

Compact and flexible: Suitable for operation in small terrain and narrow spaces.
Simple and convenient operation: Easy to transport.
Durable construction: Made of high-quality thickened steel with plastic spraying treatment, offering excellent rust and corrosion resistance.
High reliability: Equipped with internationally renowned brand reducers for smooth and stable operation.
360° free body rotation: The flexible design brings greater convenience to outdoor work.

Standard Configuration

LAIDONG KM385B engine
Imported oil cylinders and oil pipes with built-in NOK sealing rings
Hinged engine compartment hood
Taifeng variable displacement piston pump
Taifeng multi-way valve
Adjustable bulldozer blade
Wear-resistant engineering rubber track
Adjustable driving seat
Standard bucket
Standard canopy

Optional Configuration

Hydraulic hammer
Ripper
Log grapple
Rake
Auger drill
Large capacity bucket
Mud bucket

Application

Suitable for indoor demolition, toilet upgrading, engineering dismantling, barren land reclamation, small earthwork projects, municipal engineering, concrete breaking, river dredging, and other working scenarios.
