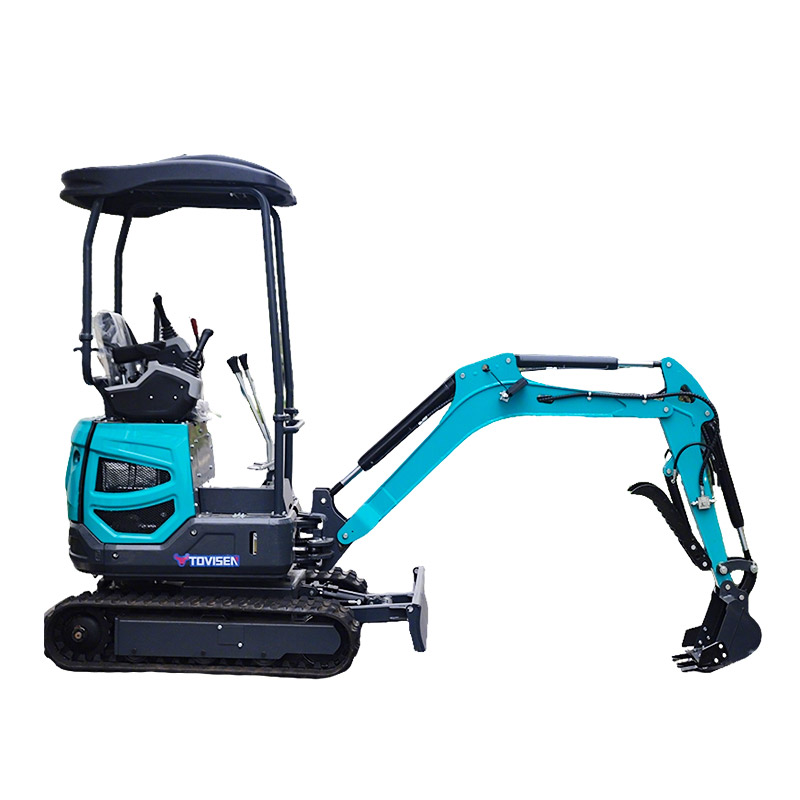

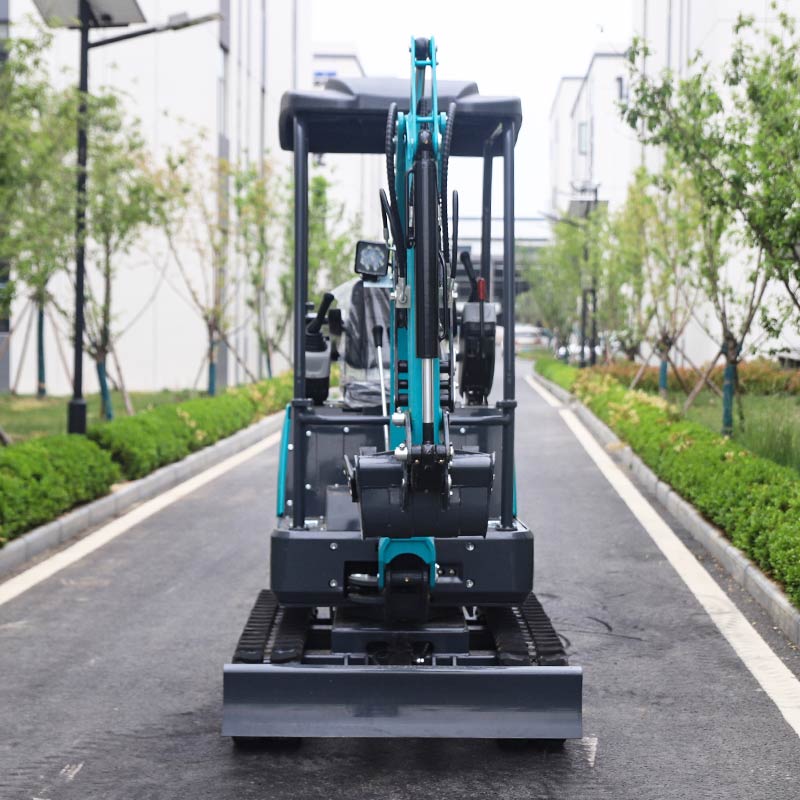

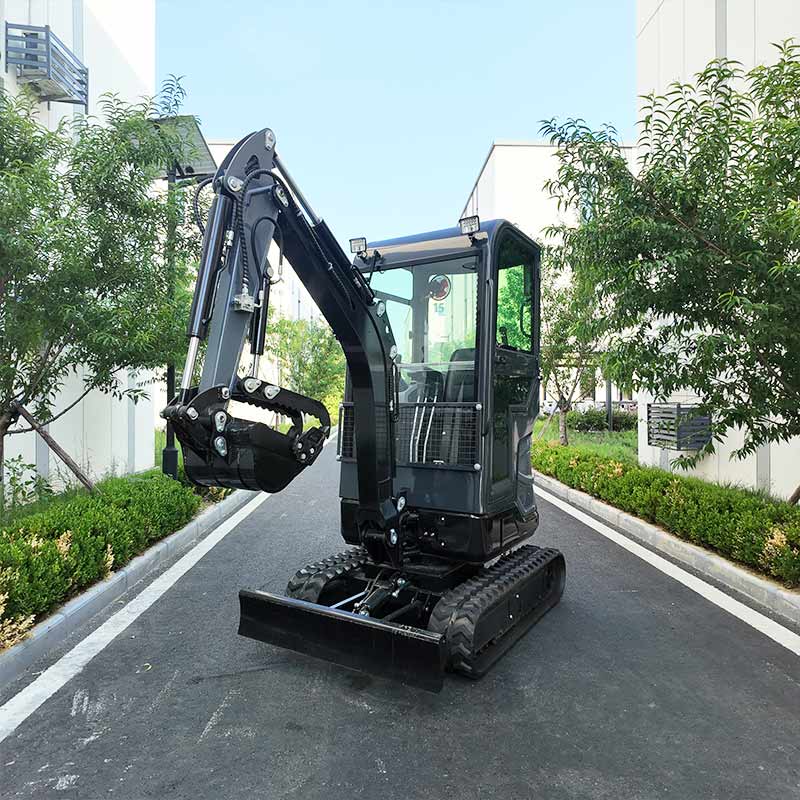

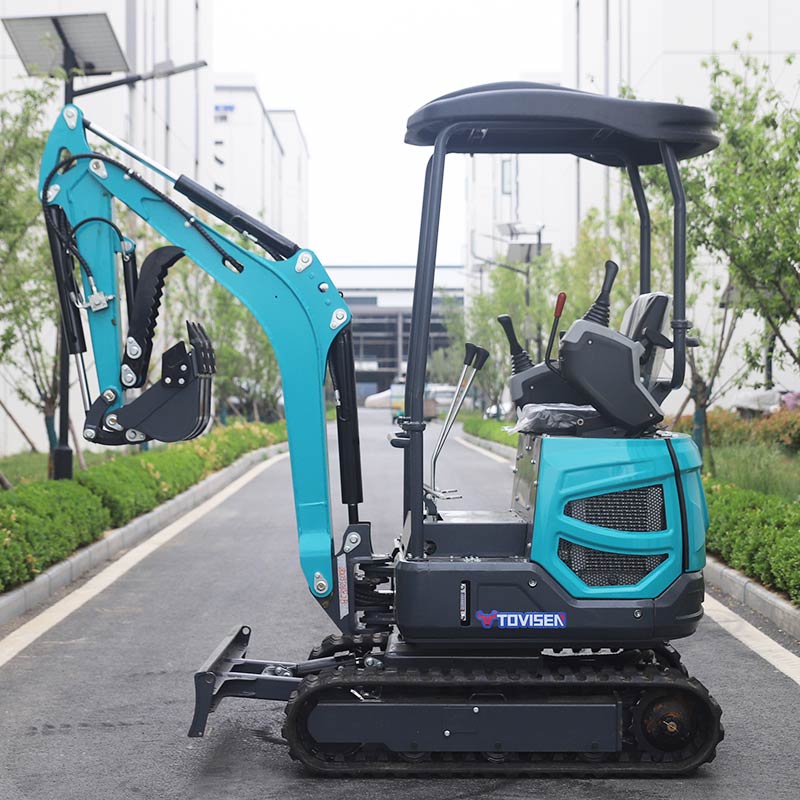

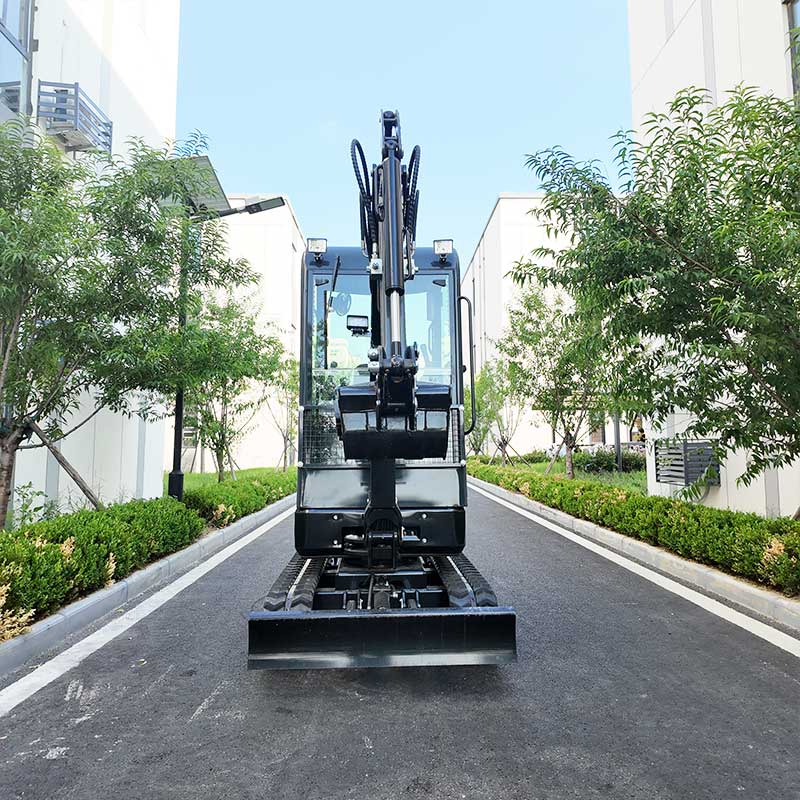

CSGW-18Q
| Item | Specification |
|---|---|
| MODEL | CSGW-18Q |
| WEIGHT | |
| Operating weight | 1500kg |
| SIZE | |
| Total length | 3249mm |
| Total width | 1120mm |
| Total height | 2314mm |
| Max. digging radius | 3496mm |
| Max. digging depth | 2091mm |
| Max. digging height | 3028mm |
| Counterweight ground clearance | 2190mm |
| Max. digging force | 10KN |
| DRIVE | |
| Engine brand | LAIDONG / KUBOTA |
| Engine model | KM385B / D722 |
| Maximum power | 24HP / 13.9HP |
| WALKING CHARACTERISTICS | |
| Walking speed | 0-6km/h |
| Climbing angle | 30° |
Product Application
It is suitable for various working scenarios, including road repair, concrete breaking, cable laying, water pipe installation, landscaping, river/ditch dredging, and construction projects. It features multiple functions such as excavation, breaking, ditch cleaning, drilling, and bulldozing.
Features
- Compact & Flexible: Designed for operations in small terrain and narrow spaces.
- Easy to Operate & Transport: Simple and convenient operation, easy for transportation.
- Durable Construction: Made of high-quality thickened steel with plastic-sprayed finish, ensuring excellent rust and corrosion resistance.
- High Reliability: Equipped with internationally renowned brand reducers for stable and reliable performance.
- 360° Rotation: Free 360° body rotation, bringing greater flexibility to outdoor work.
Standard Configuration
- LAIDONG KM385B engine
- Imported oil cylinders and oil pipes with built-in NOK sealing rings
- Twin gear pump
- Adjustable bulldozer blade
- Wear-resistant engineering rubber track
- Adjustable driving seat
- Standard bucket
- Standard canopy
Optional Configuration
- Hydraulic hammer
- Ripper
- Log grapple
- Rake
- Auger drill
- Large capacity bucket
- Mud bucket
Application
Suitable for indoor demolition, toilet upgrading, engineering renovation, barren land reclamation, small earthwork projects, municipal engineering, concrete breaking, river dredging, and other working scenarios.
