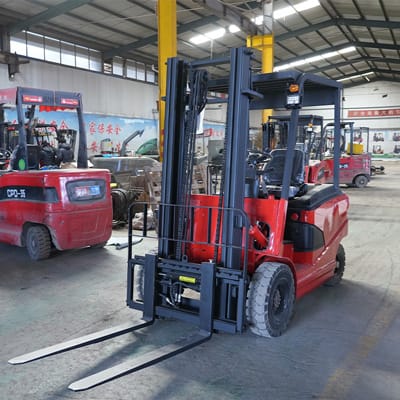

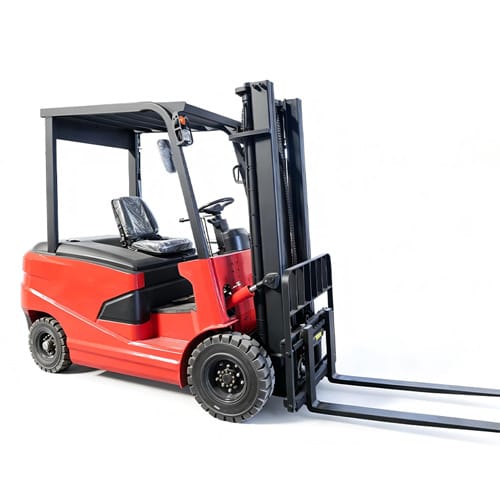

The CSAE-10 1 ton electric forklift is the smallest-capacity model in the CSAE electric forklift range. It is intended for warehouses, workshops, retail logistics, and other indoor operations that handle loads of up to 1,000 kg and need a compact machine for restricted working areas.
Its chassis measures 2,000 mm long excluding the forks and 1,200 mm wide. A 60V electrical system, 2,500W AC travel motor, and selectable 2,000–3,000 mm lifting height give the CSAE-10 the core specifications required for light-duty pallet movement without moving up to a larger forklift.
Where the CSAE-10 Fits in the Electric Forklift Range
Choose the CSAE-10 when normal unit loads remain comfortably below 1,000 kg and maneuvering space is a higher priority than reserve capacity. Its compact body is particularly relevant where aisle width, door clearance, or storage layout makes a longer chassis difficult to use.
Rated capacity should not be the only selection criterion. Load center, pallet dimensions, attachments, and lifting height can all affect the usable capacity of a forklift. If daily loads regularly approach 1,000 kg, or the operation is expected to handle heavier goods in the future, compare the next CSAE capacity level rather than planning around the maximum rating.
The stated 6–7 hour continuous working time and 8–10 hour charging time make this configuration most suitable for a planned single-shift or intermittent-duty schedule. For multi-shift use, confirm the actual duty cycle, charging window, travel distance, gradient, and lifting frequency before ordering.
CSAE-10 Specifications
| Parameter | Specification |
|---|---|
| Model | CSAE-10 |
| Maximum Lifting Capacity | 1,000 kg |
| Length | 2,000 mm (excluding fork length) |
| Width | 1,200 mm |
| Height | 2,100 mm |
| Total Vehicle Weight | 1,900 kg |
| Lifting Height | 2,000–3,000 mm |
| Body Material | Thickened steel plate body |
| Travel Motor | 2,500W AC travel motor |
| Voltage | 60V |
| Vehicle Power | Pure electric |
| Battery | 5 × 70Ah maintenance-free lead-acid batteries |

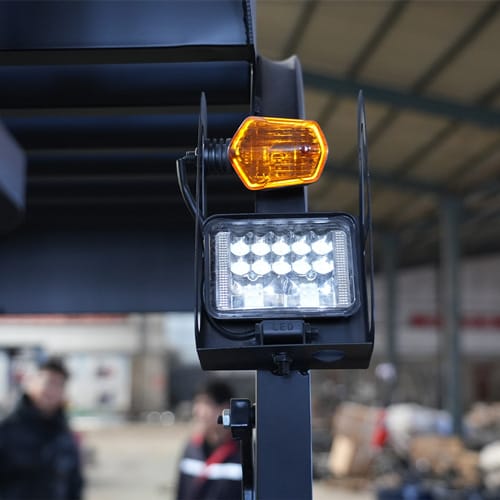

| Lights & Signals | Headlights, horn, etc. |
| Drive Axle | 1-ton solid axle |
| Tires | Front 500-8; rear 400-8; C-grade solid tires |
| Steering Axle | Thickened square-tube steering axle |
| Brake Type | Mechanical brake |

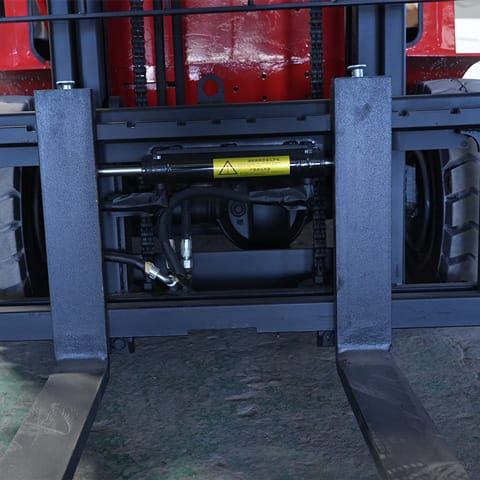

| Fork Length | 1,220 mm forged forks |
| Hydraulic Lifting Motor | 2,500W AC hydraulic lifting motor |
| Mast Material | Small C-section steel mast |

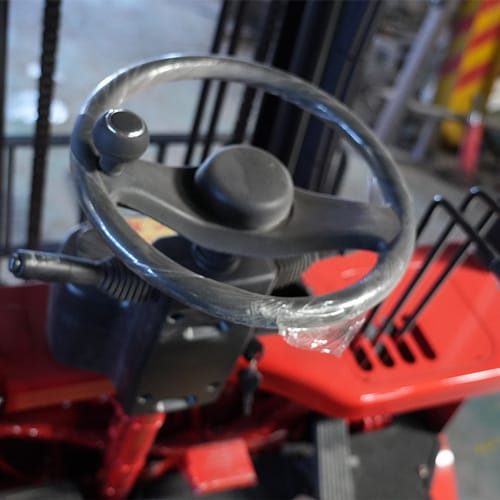

| Steering Type | Hydraulic power steering |
| Steering Capability | 90° in-situ steering |
| Charging Time | 8–10 hours |
| Continuous Working Time | 6–7 hours |
| Gradeability | 15° |
Request a Quote for the CSAE-10
Send us your maximum load, pallet dimensions, required lifting height, aisle width, daily working hours, and site gradient. We will help confirm whether the CSAE-10 has the right capacity and configuration for your operation.
