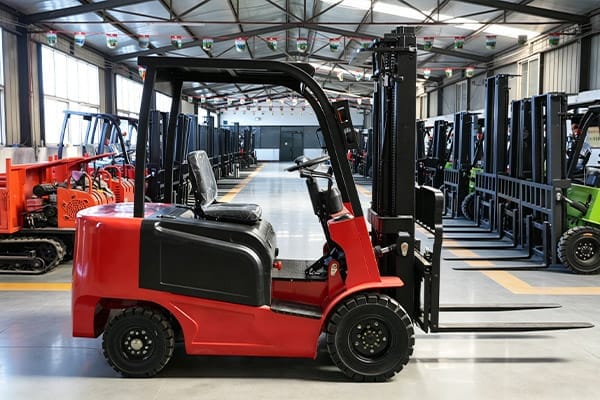

The CSAE-15 1.5 ton electric forklift provides a 1500kg lifting capacity with a standard 3000mm lifting height. Its overall dimensions are 2300mm long, 1200mm wide and 2150mm high, with a vehicle weight of 2300kg.
It uses a 5kW travel motor and 5kW hydraulic motor. The listed 60V electrical system and battery configuration can be customized according to the order requirements.
CSAE-15 or CSAE-20: Which Size Fits the Job?
The CSAE-15 is the smaller of the two CSAE models. Compared with the CSAE-20, it is 200mm shorter and 500kg lighter while keeping the same 1200mm overall width and 3000mm lifting height.
| Specification | CSAE-15 | CSAE-20 |
|---|---|---|
| Lifting Capacity | 1500kg | 2000kg |
| Overall Length | 2300mm | 2500mm |
| Vehicle Weight | 2300kg | 2800kg |
| Travel Motor | 5kW | 7.5kW |
If normal loads remain within 1500kg, the CSAE-15 gives the buyer the shorter and lighter chassis. If the operation regularly approaches 2 tons, the CSAE-20 provides the additional rated capacity and higher motor output.
CSAE-15 Specifications
| Category | Parameter | Specification |
|---|---|---|
| Vehicle Parameters | Model | CSAE-15 |
| Lifting weight | 1500kg | |
| Total length | 2300mm | |
| Total width | 1200mm | |
| Total height | 2150mm | |
| Vehicle weight | 2300kg | |
| Lifting height | 3000mm | |
| Electrical System | Travel motor | 5kW |
| Hydraulic motor | 5kW | |
| Voltage | 60V (customizable) | |
| Battery | 60V 120AH*5 (customizable) | |
| Charger | 220V | |
| Chassis System | Front axle | 180 suspended cast steel front axle |

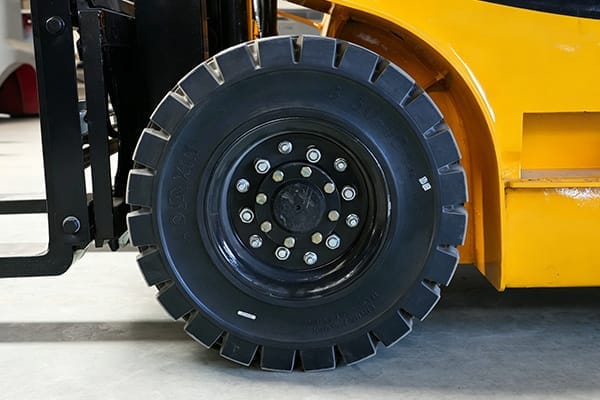

| Tire | Front wheel 650-10 / Rear wheel 500-8 |
Send us your required lifting height, battery configuration, destination country and order quantity.
