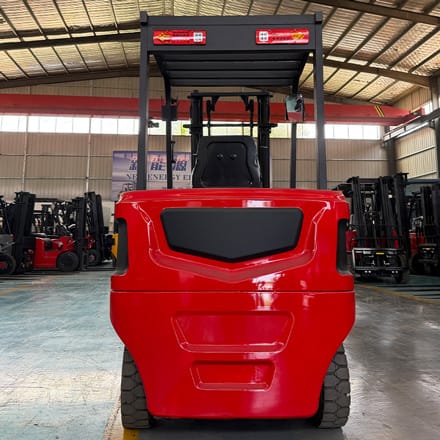

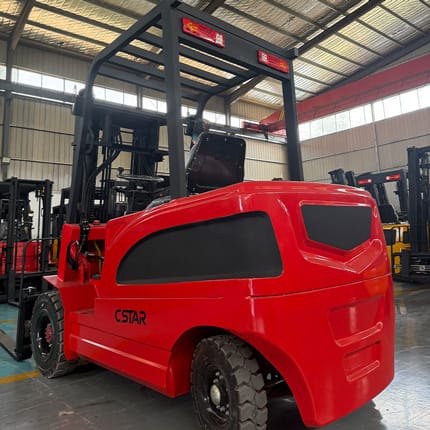

The CSAK-30 3 ton electric forklift has a maximum lifting capacity of 3000kg and a 3m lifting height. Chassis length is 2600mm excluding the forks and total vehicle weight is 4000kg.
Its electrical system operates at 72V with ten 70Ah maintenance-free lead-acid batteries, a 7500W AC travel motor and a 5000W AC hydraulic lifting motor.
CSAK-30 Specifications
| Category | Parameter | Specification |
|---|---|---|
| Technical Parameters | Max. Lifting Capacity | 3000kg |
| Length | 2600mm (excluding fork length) | |
| Width | 1200mm | |
| Height | 2150mm | |
| Total Vehicle Weight | 4000kg | |
| Lifting Height | 3m | |
| Body Material | New stamped steel body | |
| Electrical System | Travel Motor | 7500W AC travel motor |
| Voltage | 72V | |
| Controller | Anti-slope high-power controller | |
| Battery | 10 pieces of 70Ah maintenance-free lead-acid batteries | |

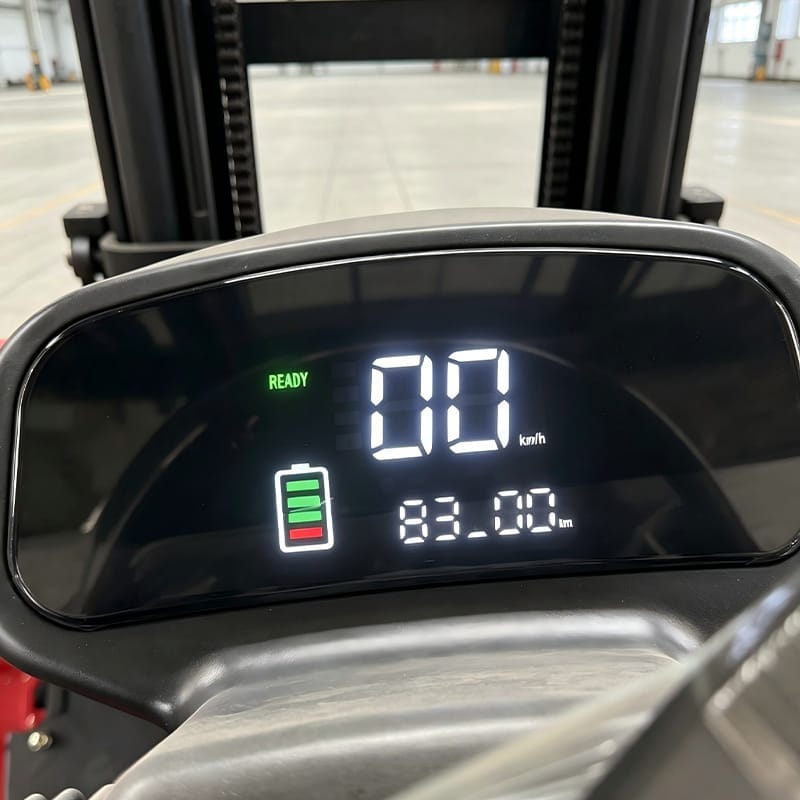

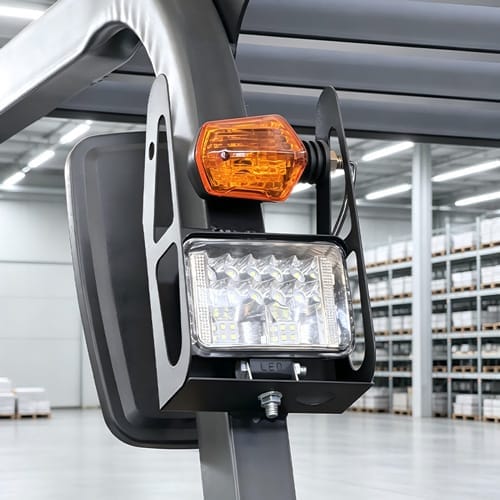

| Lights & Signals | Headlights, left/right turn signals, brake lights, driving lights, instrument panel, horn, etc. | |
| Chassis System | Drive Axle | Cast steel 310 axle |
| Tires | Front 650-10, Rear (C-grade solid tires) | |
| Steering Axle | Heavy-duty forklift-specific rear axle | |
| Brake Type | Hand brake + hydraulic brake | |
| Lifting Cylinder | Reinforced sealed dual cylinders | |
| Other Configurations | Fork Length | 1220mm extra-thick forged forks |
| Hydraulic Lifting Motor | 5000W AC hydraulic lifting motor | |
| Mast Material | Widened special steel mast | |
| Steering Type | Hydraulic power steering | |
| Turning Radius | 90° in-situ steering | |
| Charging Time | 4-6 hours | |
| Continuous Working Time | 6-8 hours | |
| Climbing Angle | 15° |
Request CSAK-30 Details
Send us the required load, lift height, operating schedule, destination and order quantity.
