The CSDS-20 2 ton electric forklift is designed for warehouse, manufacturing, and logistics applications handling loads of up to 2,000 kg at a 500 mm load center. It provides a higher-capacity step from the CSDS-15 while retaining the same 1,150 mm overall width.
The forklift combines 4 kW AC drive and lifting motors with a 60V 70Ah battery system. It offers a 3,000 mm unloaded lifting height, a 1,550 mm minimum turning radius, and a listed unloaded vehicle weight of 2,600 kg.
When to Move from the CSDS-15 to the CSDS-20
Compared with the CSDS-15, the CSDS-20 adds 500 kg of rated capacity and increases both drive and lifting motor output from 3 kW to 4 kW. Chassis length increases by 150 mm and unloaded weight increases by 200 kg.
Both models retain the same 1,150 mm width, 1,550 mm turning radius, travel speeds, lifting speeds, 3,000 mm lift height, and 60V 70Ah battery specification. The CSDS-20 also lists a cast-steel heavy-duty drive axle instead of the sheet-metal drive axle specified for the CSDS-15.
Choose the CSDS-20 when normal loads exceed the practical range of the 1.5-ton model but remain below 2,000 kg. Capacity selection should still account for load center, attachments, pallet dimensions, and lifting height.
CSDS-20 Specifications
| Parameter | Specification |
|---|---|
| Model | CSDS-20 |
| Rated Load Capacity | 2,000 kg |
| Overall Length (Without Forks) | 2,350 mm |
| Overall Length (With Forks) | 3,420 mm |
| Overall Width | 1,150 mm |
| Mast Lowered Height | 2,100 mm |
| Overhead Guard Height | 2,080 mm |
| Maximum Working Height | 3,750 mm |
| Wheelbase | 1,580 mm |
| Minimum Ground Clearance — Mast Bottom | 100 mm (empty/laden) |
| Minimum Ground Clearance — Chassis Center | 130 mm (empty/laden) |
| Mast Type | 120 mm C-section |
| Maximum Lift Height (Unloaded) | 3,000 mm |
| Mast Tilt Angle (Front/Rear) | 5° / 13° |
| Overall Weight (Standard Unloaded) | 2,600 kg |
| Maximum Lifting Speed (Unloaded, Adjustable) | 120 mm/s |
| Maximum Lifting Speed (Laden, Adjustable) | 150 mm/s |
| Minimum Turning Radius | 1,550 mm |
| Maximum Travel Speed (Unloaded, Adjustable) | 14 km/h |
| Maximum Travel Speed (Laden, Adjustable) | 12 km/h |
| Maximum Gradeability (Laden) | 15% |
| Maximum Gradeability (Unloaded) | 20% |
| Load Center Distance | 500 mm |

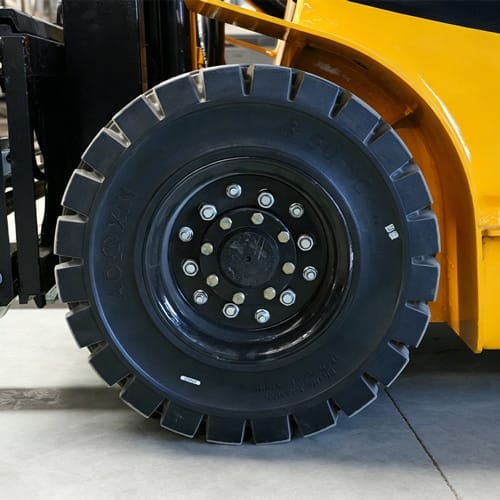

| Front Tire | 650-10 |
| Rear Tire | 500-8 |
| Lifting Motor Power | 4 kW AC |
| Drive Motor Power | 4 kW AC |
| Steering Type | Hydraulic power steering |
| Charger Input Voltage | 220V |
| Charging Time | 8–10 hours |
| Battery Capacity | 70Ah |
| Rated Voltage | 60V |
| Battery Brand | Chaowei |
| Number of Batteries | 5 |
| Drive Axle | 220-100 cast-steel heavy-duty drive axle |
| Steering Axle | 920-160 cast-steel suspension integrated heavy-duty steering axle |
| Lighting System | LED |
| Wheel Type | Solid tires |
| Body Color | Customizable |
Request a Quote for the CSDS-20
Share your normal and maximum loads, pallet dimensions, required lifting height, aisle width, operating hours, and site conditions. We will help determine whether the CSDS-15 or CSDS-20 is the better fit.
