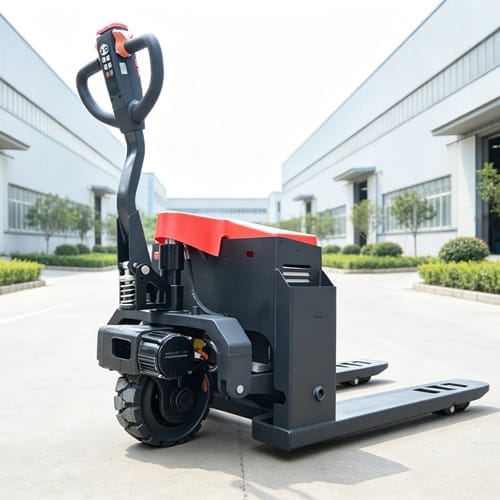

The CSTAR CSHP-YJ30 3 ton full-electric pallet truck combines powered travel and lifting with a large solid-rubber drive wheel. The 300 × 100 mm wheel format distinguishes it from the compact polyurethane-wheel indoor models.
The supplied description also identifies an integrated controller arrangement and sealed gear transmission, making both route conditions and drivetrain configuration relevant to selection.
CSHP-YJ30 Specifications
| Parameter | Specification |
|---|---|
| Model | CSHP-YJ30 |
| Rated Load Capacity | 3,000 kg |
| Operation Type | Full electric |
| Load Center Distance | 500 mm |
| Drive Wheel Type | Rubber |
| Drive Wheel Size | Φ300 × 100 mm |

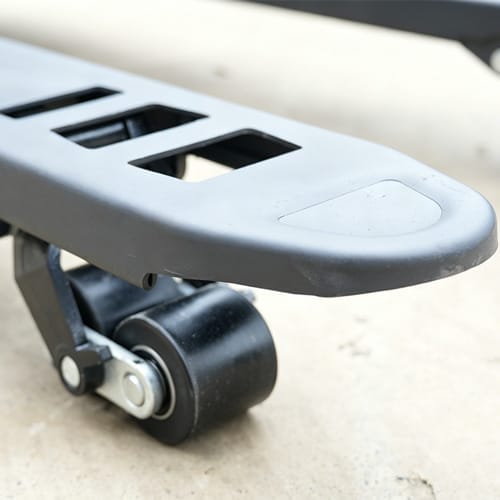

| Load Wheel Size | Φ80 × 70 mm |
| Minimum Fork Height | 85 mm |
| Maximum Fork Height | 200 mm |
| Inner Width Between Forks | 230 / 365 mm |
| Outer Width Between Forks | 550 / 685 mm |
| Fork Length | 1,150 mm |
| Single Fork Width | 160 mm |
| Fork Thickness | 40 mm |
| Overall Length | 1,750 mm |
| Overall Width | 685 mm |
| Overall Height with Handle | 1,280 mm |
| Overall Height without Handle | 680 mm |
| Minimum Turning Radius | 1,550 mm |
| Maximum Travel Speed — Laden/Unladen | 4 / 4.5 km/h |
| Gradeability — Laden/Unladen | 7% / 16% |
| Battery | 48V / 20A |
| Drive Motor Power | 1,500 W |
| Lifting Motor Power | 1,200 W |
| Overall Weight | 195 kg |
| Lifting Speed — Laden/Unladen | 2.2 / 3.3 cm/s |
Large Drive Wheel for Outdoor Transitions
The larger rubber drive wheel is intended for routes that include yard paving, joints, and uneven transitions. It does not remove the need to check slope, potholes, loose material, drainage channels, and the 85 mm minimum fork height along the actual route.
With a 1,550 mm turning radius and 685 mm overall width, maneuvering space must still be measured at gates, corners, and loading points.
Controller and Transmission as a Service Package
For maintenance planning, confirm the controller, sealed transmission, motor ratings, and local parts support together. These components should be identified on the final order rather than described only as general product advantages.
Request a Quote for the CSHP-YJ30
Send the load weight, pallet dimensions, outdoor route condition, gradients, turning space, charging arrangement, and destination country.
