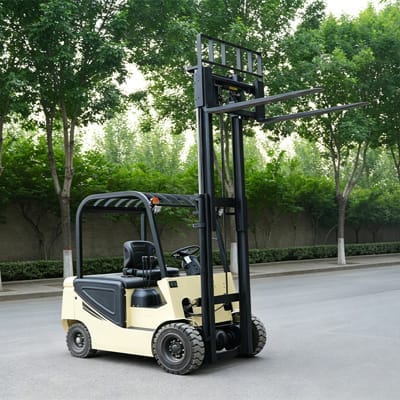

The CSHZ-15 1.5 ton electric forklift is the entry-capacity model in the CSHZ series. It is designed for warehouses, workshops, production areas, and indoor logistics operations handling loads of up to 1,500 kg at a 600 mm load center.
The forklift uses a compact 2,320 mm chassis excluding the forks, a 72V 70Ah Tianneng battery, a 4 kW permanent-magnet synchronous traction motor, and a 3 kW lifting motor. Its maximum lifting height is 3,000 mm.
When the CSHZ-15 Is the Right Capacity
Choose the CSHZ-15 when normal loads remain comfortably below 1,500 kg and keeping vehicle weight down is important. It shares the same 2,320 mm chassis length, 1,160 mm width, and 2,680 mm turning radius as the CSHZ-20 and CSHZ-25, but its 2.25-ton curb weight is 700 kg lower than the CSHZ-20.
Moving to the CSHZ-20 adds 500 kg of rated capacity while retaining the same listed external dimensions and 72V 70Ah battery configuration. If everyday loads frequently approach 1,500 kg, that additional capacity may be more useful than selecting the lightest model in the range.
Final selection should account for pallet dimensions, load center, attachments, lifting height, floor capacity, aisle geometry, and site gradient. Confirm the required capacity against the approved load chart rather than relying on the rated load alone.
CSHZ-15 Specifications
| Technical Parameter | Specification |
|---|---|
| Model | CSHZ-15 |
| Rated Load Capacity | 1,500 kg |
| Load Center Distance | 600 mm |
| Overall Length (Without Forks) | 2,320 mm |
| Overall Length (With Forks) | 3,520 mm |
| Overall Width | 1,160 mm |
| Overall Height | 2,160 mm |
| Wheelbase | 1,530 mm |
| Minimum Ground Clearance | 92 mm |
| Minimum Turning Radius | 2,680 mm |
| Maximum Lifting Height | 3,000 mm |
| Mast Tilt Angle | 6° / 15° |
| Gradeability | 15% |
| Traction Motor | 4 kW permanent-magnet synchronous motor |
| Lifting Motor | 3 kW permanent-magnet synchronous motor |
| Battery | Tianneng 72V 70Ah |
| Curb Weight | 2.25 t |
| Front Axle | 256 cast-steel axle |
| Rear Axle | Double-layer steering axle |
| Front Tire | 650-10 (Grade A) |
| Rear Tire | 500-8 (Grade A) |
Request a Quote for the CSHZ-15
Send us your typical and maximum load weights, pallet dimensions, lifting height, aisle width, daily operating hours, and site conditions. We will help confirm whether the CSHZ-15 or CSHZ-20 is the better fit.
