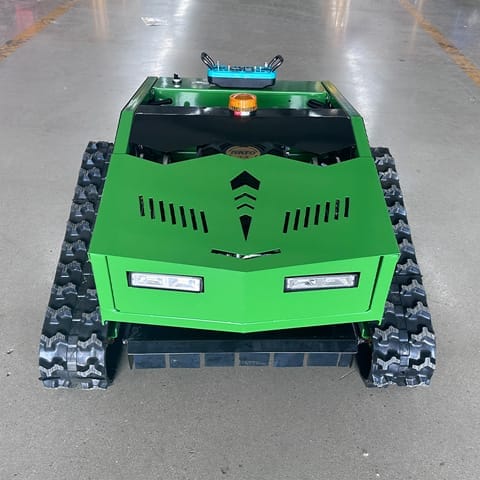

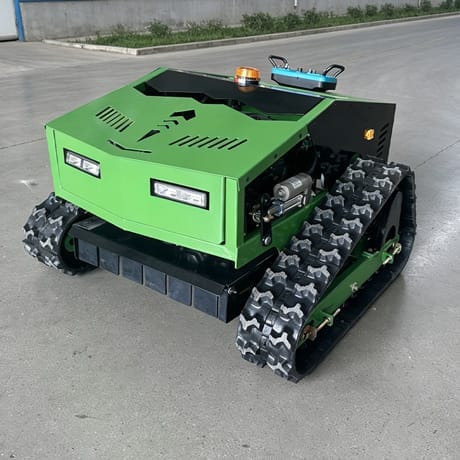

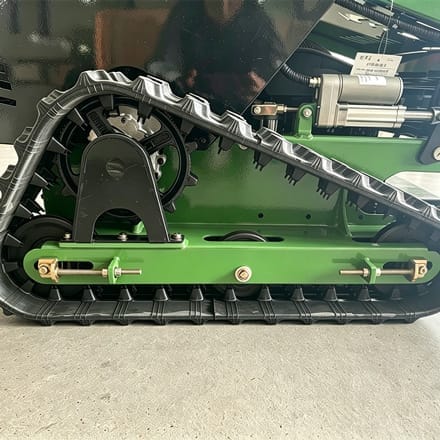

The CSTAR Machinery CSJ-HB500 crawler lawn mower uses a 500 mm cutting platform for routes where access and maneuvering space take priority over maximum pass width. It measures 930 × 900 × 640 mm, weighs 180 kg, and provides a listed cutting-height range of 20–150 mm.
With remote start and stop plus remote cutter-head lifting and lowering, the HB500 is configured for controlled mowing on confined or sloped ground. Its listed mowing efficiency is 1,500 m²/h, so it is better matched to restricted routes and moderate work areas than to jobs selected solely for the highest hourly coverage.
Select the 500 mm Platform for Access, Not Just Capacity
The HB500’s 500 mm cutting width is useful where paths, planted areas, solar-site rows, gates, or obstacles limit the route. Clearance still has to be checked against the complete machine dimensions rather than the cutting width. Space for turning and safe separation from edges or obstacles should be included in that check.
Compared with the CSJ-HB800 specification, the HB500 trades working width and listed hourly output for a smaller machine envelope. It also reaches a higher listed cutting setting: 150 mm rather than 100 mm. The HB500 is therefore the more relevant option when the route is restricted or a taller remaining cut is required; the HB800 is the stronger candidate when wider coverage is the main priority.
The machine’s 180 kg working weight and 216 kg packing weight must remain separate in logistics planning. Use 990 × 990 × 810 mm and 216 kg for the packed unit when checking crate space, unloading capacity, and onward transport.
HB500 or LB500: Choose the Operating System, Not the Shared Deck Width
The CSJ-HB500 and CSJ-LB500 both cut a 500 mm pass, but they should not be treated as duplicate models. The HB500 is the heavier, remotely adjustable configuration: it lists a 20–150 mm cutting-height range, remote cutter-head lifting and lowering, a self-powered continuous-operation system and 1,500 m²/h mowing efficiency. The LB500 instead prioritizes lower machine weight and a separately stated battery endurance.
| Selection Point | CSJ-HB500 | CSJ-LB500 |
|---|---|---|
| Machine Weight | 180 kg | 105 kg |
| Complete Machine Width | 900 mm | 880 mm |
| Cutting Height | 20–150 mm; remote lifting and lowering | 70 mm listed; no adjustment range supplied |
| Power-System Description | Self-powered continuous operation | Non-self-generating; 24 V / 70 Ah |
| Time / Output Figure | 1,500 m²/h listed mowing efficiency | 4–5 hours listed battery endurance |
| Listed Climbing Angle | 45° | 35° |
Choose the HB500 when remote cutting-height changes during the job and a self-powered arrangement are central requirements. Consider the LB500 when its 75 kg lower listed weight, 20 mm narrower body and 4–5 hour battery-endurance figure better match access and scheduling needs. Do not compare 1,500 m²/h directly with 4–5 hours: one is a theoretical area-rate figure and the other is a duration figure. The 45° and 35° values are also listed machine parameters, not universal safe working angles.
Plan Work Time from the Site, Not the Headline Output
At the listed 1,500 m²/h mowing efficiency, 3,000 m² represents two hours of theoretical cutting time before allowing for turning, overlap, obstacles, denser vegetation, refueling, inspection, or route repositioning. Buyers should apply those site allowances when estimating daily coverage.
The HB500 uses an RV225 standard power unit, a 24V 24Ah electrical system, and a self-powered continuous-operation arrangement. No battery-only runtime is stated, so runtime should not be calculated from the 24Ah figure alone.
Its listed climbing ability is 45°. Actual suitability depends on slope direction, surface grip, wetness, loose material, edges, hidden obstacles, and vegetation load. Provide real site measurements when asking CSTAR Machinery to review a slope application.
CSJ-HB500 Specifications
| Parameter | Specification |
|---|---|
| Model | CSJ-HB500 |
| Overall Dimensions | 930 × 900 × 640 mm |
| Packaging Dimensions | 990 × 990 × 810 mm |
| Machine Weight | 180 kg |
| Packing Weight | 216 kg |
| Cutting Width | 500 mm |
| Cutting Height | 20–150 mm |
| Travel Speed | 4 km/h |
| Voltage and Battery Capacity | 24V, 24Ah |
| Remote Functions | Remote start and stop |
| Climbing Ability | 45° |
| Cutter-Head Adjustment | Remote-control lifting and lowering |
| Standard Power Unit | RV225 |
| Fuel Tank Capacity | 1.2 L |
| Fuel Consumption | 1.2 L/h |
| Engine Oil Capacity | 0.6 L |
| Mowing Efficiency | 1,500 m²/h |
| Power-System Feature | Self-powered continuous operation |
| Controller | Brushless integrated-circuit controller |
| Travel Motor | Brushless motor |
CSJ-HB500 FAQ
When should the CSJ-HB500 be chosen instead of an 800 mm mower?
Choose it when the smaller overall dimensions, 500 mm cutting width, or 20–150 mm cutting-height range fits the route better than the higher hourly coverage of an 800 mm model.
What is the listed mowing efficiency?
The listed value is 1,500 m²/h. Real output depends on turning, overlap, vegetation, slope, obstacles, and other site conditions.
Does the CSJ-HB500 have remote height adjustment?

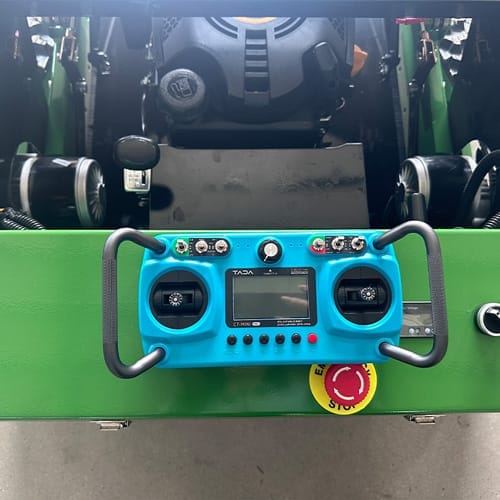

Yes. Remote cutter-head lifting and lowering are listed, together with remote start and stop.
How long does the 24V 24Ah system operate?
A battery-only runtime is not provided in the specification. The 24Ah value should not be converted into an operating-time claim without the complete electrical load and power-system details.
Request a Quote for the CSJ-HB500
Share the route width, total mowing area, vegetation condition, desired remaining grass height, steepest slope, surface type, working schedule, and shipping destination. CSTAR Machinery can use these details to review whether the compact HB500 matches the job.
