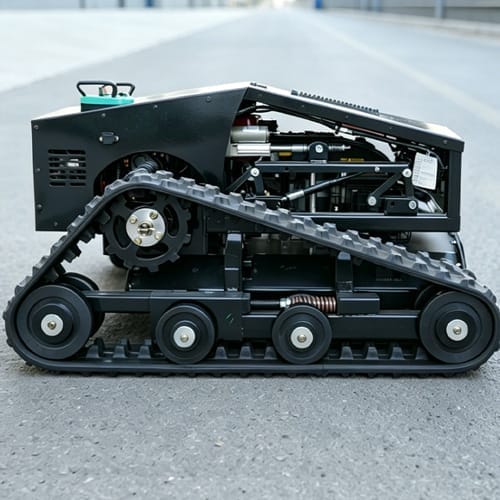

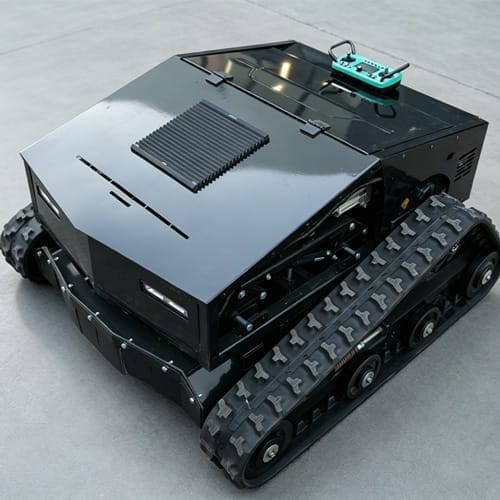

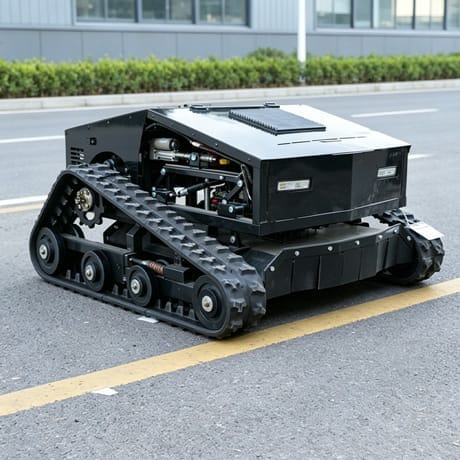

The CSTAR Machinery CSJ-HB800 crawler lawn mower is an 800 mm model with a 20–100 mm cutting-height range, remote cutter-head adjustment and a listed mowing efficiency of 3,800 m²/h. Its supplied specification explicitly identifies double-row load-bearing wheels, a brushless motor and 16 HP or 23 HP power options.
The supplied CSJ-QL800, CSJ-HS800 and CSJ-HB800 configurations share many headline figures, so cutting width and hourly output do not distinguish them. The useful buying checks are the complete machine envelope, the available power selection and which wheel and motor details are explicitly included in the quotation.
HB800, QL800 and HS800: Compare the Listed Configurations
All three supplied specifications list an 800 mm cutting width, 255 kg machine weight, 20–100 mm cutting-height range, 5 km/h travel speed, 24V 40Ah electrical system, remote cutter-head adjustment and 3,800 m²/h mowing efficiency. The table below therefore focuses only on the documented differences rather than repeating those shared values.
| Listed Configuration | Overall Dimensions (L × W × H) | Power | Double-Row Wheels | Brushless Motor |
|---|---|---|---|---|
| CSJ-HB800 | 1,180 × 1,150 × 670 mm | 16 HP / 23 HP | Explicitly listed | Explicitly listed |
| CSJ-QL800 | 1,150 × 1,200 × 600 mm | 23 HP | Explicitly listed | Explicitly listed |
| CSJ-HS800 | 1,100 × 1,270 × 650 mm | 16 HP / 23 HP | Not stated in the supplied specification | Not stated in the supplied specification |
“Not stated” means that the supplied parameter sheet does not identify the feature; it does not prove that the feature is unavailable. Confirm the final build and record it in the quotation.
Choose by Access and Documented Configuration
For the listed HB800, route planning should use the complete 1,180 × 1,150 × 670 mm dimensions rather than the 800 mm cutting width. Among the three records, the HB800 has the narrowest stated overall width at 1,150 mm, while the HS800 has the shortest stated overall length at 1,100 mm. Allow extra maneuvering clearance instead of treating either dimension as an exact gate limit.
The HB800 combines the 16 HP / 23 HP choice with explicit entries for double-row load-bearing wheels and a brushless motor. The QL800 sheet also explicitly lists both features but specifies 23 HP only. The HS800 sheet offers 16 HP / 23 HP, but its supplied data does not state the wheel arrangement or motor type. These entries should be treated as documented configuration differences, not as evidence that the model names represent different platforms.
For shipping and unloading, the HB800 packing envelope is 1,230 × 1,200 × 840 mm and its packing weight is 310 kg. The selected power unit, wheel arrangement, motor type and controller should all appear on the final quotation so that the delivered machine is defined by more than its model name.
The 45° value is a listed climbing ability, not a universal safe mowing angle. Surface grip, slope direction, cross-slope travel, vegetation, obstacles and ground firmness must be assessed for the actual site.
CSJ-HB800 Specifications
| Parameter | Specification |
|---|---|
| Model | CSJ-HB800 |
| Overall Dimensions | 1,180 × 1,150 × 670 mm |
| Packaging Dimensions | 1,230 × 1,200 × 840 mm |
| Machine Weight | 255 kg |
| Packing Weight | 310 kg |
| Cutting Width | 800 mm |
| Cutting Height | 20–100 mm |
| Travel Speed | 5 km/h |
| Voltage and Battery Capacity | 24V, 40Ah |
| Climbing Ability | 45° |
| Cutter-Head Adjustment | Remote-control lifting and lowering |
| Power Options | 16 HP / 23 HP |
| Fuel Tank Capacity | 7.1 L |
| Engine Oil Capacity | 1.2 L |
| Mowing Efficiency | 3,800 m²/h |
| Load-Bearing Wheel Arrangement | Double-row load-bearing wheels for heavy-duty mowing |

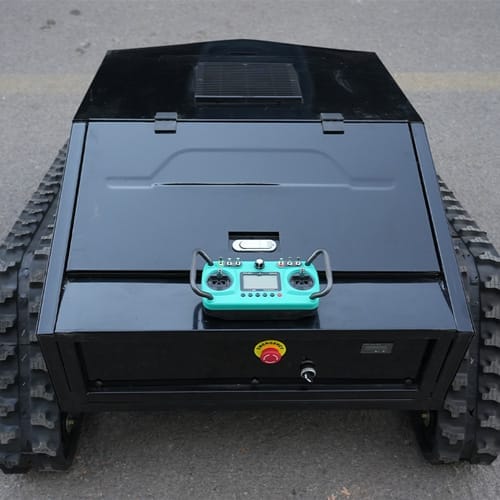

| Remote Functions | Remote start and stop |
| Control System | Wireless integrated control system |
| Working Feature | Self-powered continuous operation |
| Motor Type | Brushless motor |
CSJ-HB800 FAQ
How does the listed CSJ-HB800 configuration differ from the QL800 and HS800?
It has its own 1,180 × 1,150 × 670 mm envelope and lists both 16 HP and 23 HP options. Double-row load-bearing wheels and a brushless motor are explicitly stated for the HB800 and QL800; those two fields are not stated in the supplied HS800 specification.
What area can the CSJ-HB800 mow per hour?
The listed mowing efficiency is 3,800 m²/h. Actual output will vary with vegetation, slope, overlap between passes, turning time, and site obstacles.
Does the 45-degree figure apply to every slope?
No. It is the listed climbing ability, not a guarantee for every surface or travel direction. The actual site and operating method must be evaluated before slope work.
Which power option should be ordered?
Both 16 HP and 23 HP are listed. Select the version by vegetation load and working conditions, and make sure the chosen power unit is written into the quotation.
Request a Quote for the CSJ-HB800
Provide the mowing area, grass or brush condition, narrowest route dimensions, maximum slope, surface condition, target cutting height, preferred power output and shipping destination. Ask for the power unit, wheel arrangement, motor type and controller to be written into the quotation. CSTAR Machinery can then review the appropriate HB800 configuration.
