The CSHZ-25 2.5 ton electric forklift is the highest-capacity model on the compact CSHZ platform. It is intended for warehouse, manufacturing, and logistics applications handling loads of up to 2,500 kg at a 600 mm load center.
The CSHZ-25 retains the 2,320 mm chassis length and 1,160 mm width used by the CSHZ-15 and CSHZ-20, while increasing output to a 7.5 kW permanent-magnet synchronous traction motor and a 5 kW lifting motor. Power is supplied by a Tianneng 72V 70Ah battery.
CSHZ-25 or CSHZ-30: Compact Platform or Larger Chassis?
Compared with the CSHZ-20, the CSHZ-25 adds 500 kg of rated capacity, raises traction motor output from 5 kW to 7.5 kW, and raises lifting motor output from 4 kW to 5 kW. The listed external dimensions, 2,680 mm turning radius, and 72V 70Ah battery remain unchanged, while curb weight increases by 550 kg to 3.5 t.
Moving from the CSHZ-25 to the CSHZ-30 adds another 500 kg of capacity, but also moves the forklift to a larger platform. The CSHZ-30 is 450 mm longer without forks, 40 mm wider, and has a turning radius 320 mm larger. It also uses a 72V 140Ah battery instead of the 70Ah configuration.
Choose the CSHZ-25 when loads fall between 2,000 and 2,500 kg and the compact platform is valuable. If routine loads approach 2,500 kg or require additional capacity margin after accounting for load center, attachments, and lifting height, evaluate the CSHZ-30 before ordering.
CSHZ-25 Specifications
| Technical Parameter | Specification |
|---|---|
| Model | CSHZ-25 |
| Rated Load Capacity | 2,500 kg |
| Load Center Distance | 600 mm |
| Overall Length (Without Forks) | 2,320 mm |
| Overall Length (With Forks) | 3,520 mm |
| Overall Width | 1,160 mm |
| Overall Height | 2,160 mm |
| Wheelbase | 1,530 mm |
| Minimum Ground Clearance | 92 mm |
| Minimum Turning Radius | 2,680 mm |
| Maximum Lifting Height | 3,000 mm |
| Mast Tilt Angle | 6° / 15° |
| Gradeability | 15% |
| Traction Motor | 7.5 kW permanent-magnet synchronous motor |
| Lifting Motor | 5 kW permanent-magnet synchronous motor |
| Battery | Tianneng 72V 70Ah |
| Curb Weight | 3.5 t |
| Front Axle | 256 cast-steel axle |
| Rear Axle | Double-layer steering axle |

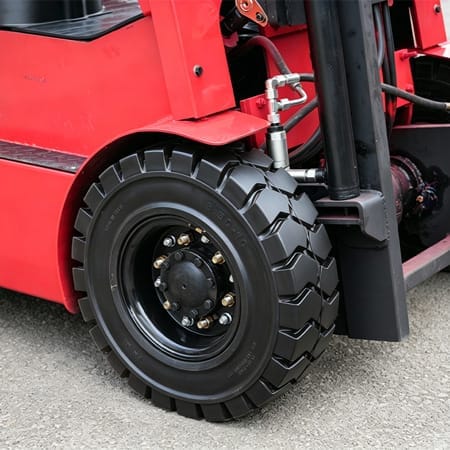

| Front Tire | 650-10 (Grade A) |
| Rear Tire | 500-8 (Grade A) |
Request a Quote for the CSHZ-25
Share your typical and maximum load weights, load center, pallet dimensions, lifting height, aisle width, and site conditions. We will help you compare the compact CSHZ-25 with the larger CSHZ-30 platform.
