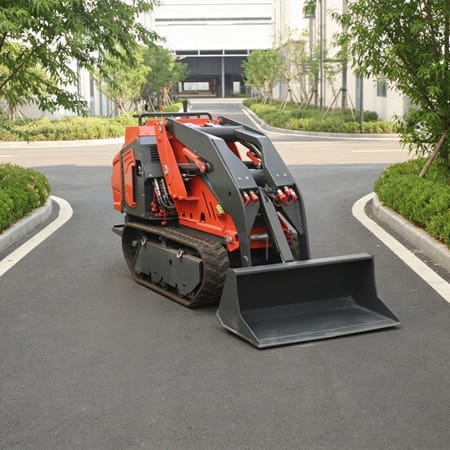

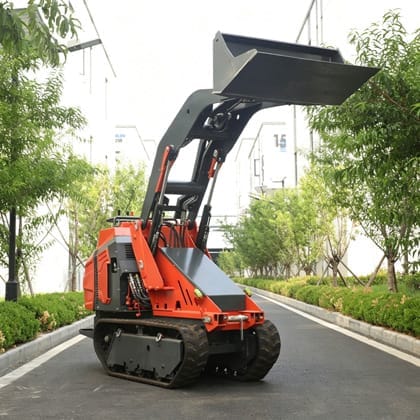

The CSTAR CSGL-C1200 Compact Track Loader combines a 440 kg rated load with a listed 865 mm vehicle width.
Its 833 mm dumping distance gives the C1200 a second clear specification advantage when the bucket must reach forward over the edge of a receiving point.
CSGL-C1200 Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| General | Model | CSGL-C1200 |
| Performance | Operating Weight | 1825kg |
| Performance | Bucket Capacity | 0.15m³ |
| Performance | Climbing Ability | 25° |
| Performance | Maximum Breakout Force | 5.1KN |
| Performance | Rated Load | 440kg |
| Performance | Maximum Load | 500kg |
| Performance | Travel Speed | 0-7km/h |
| Dimensions | Vehicle Width | 865mm |
| Hydraulic System | Rated Pressure | 18.8Mpa |
| Bucket | Bucket Width | 1045mm |
| Working Range | Max Loading Height | 1980mm |
| Working Range | Max Dumping Height | 1550mm |
| Working Range | Max Operating Height | 2606mm |
| Working Range | Height to Bucket Pin | 2155mm |
| Working Range | Max Height Bucket Dump Angle | 63° |
| Dimensions | Min Height | 1499mm |
| Chassis | Departure Angle | 34° |
| Chassis | Ground Clearance | 200mm |
| Working Range | Dumping Distance | 833mm |
| Track | Track Contact Length | 1664mm |
| Dimensions | Overall Dimensions | 2867*1045*1499mm |
| Dimensions | Length Including Bucket | 2867mm |
| Dimensions | Length Excluding Bucket | 2034mm |
| Track | Track Contact Length | 200*49*72 |
| Engine | Brand | Kubota |
| Engine | Model | D1105 |
| Engine | Rated Power | 18.5kw |
| Engine | Cylinder | 3 |
| Engine | Intake Method | Natural inhalation |
| Engine | Emission Standard | EPA/ERUO5 |
| Engine | Fuel Tank Capacity | 32L |
440 kg Rated Load on an 865 mm Vehicle Width
The combination of 440 kg rated load and 865 mm listed vehicle width is the main capacity-to-width argument for the C1200.
833 mm Forward Dumping Distance
The listed dumping distance is 833 mm, with a maximum dumping height of 1,550 mm. Compare both values with the actual receiving point rather than looking at dump height alone.
Request a CSGL-C1200 Quote
Send the material, typical load, site access, receiving height, required forward reach and destination country.
