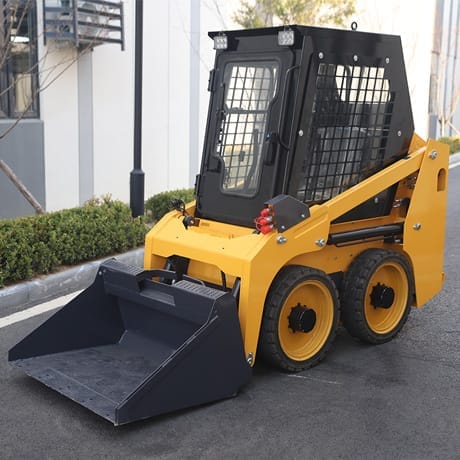

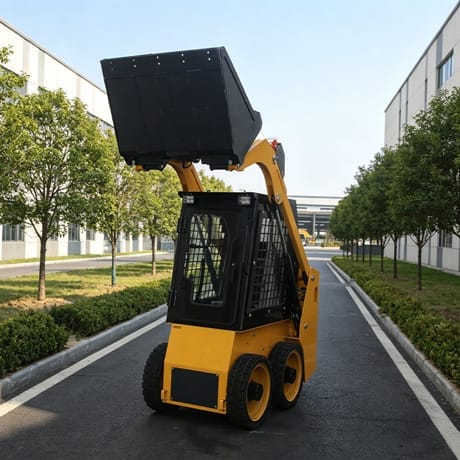

The CSTAR CSGL-S25 Skid Steer Loader carries a 450 kg rated load with a 0.22 m³ bucket and 14.5 kN maximum breakout force.
Unlike CSTAR’s compact tracked models, the S25 uses a wheeled chassis and reaches a listed travel speed of 12 km/h, giving it a different mobility profile for suitable hard and prepared working surfaces.
CSGL-S25 Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| General | Model | CSGL-S25 |
| Performance | Operating Weight | 1,665 kg |
| Performance | Bucket Capacity | 0.22 m³ |
| Performance | Climbing Ability | 25° |
| Performance | Maximum Breakout Force | 14.5 kN |
| Performance | Rated Load | 450 kg |
| Performance | Maximum Load | 850 kg |
| Performance | Travel Speed | 0–12 km/h |
| Dimensions | Vehicle Width | 900 mm |
| Hydraulic System | Rated Pressure | 18 MPa |
| Bucket | Bucket Width | 1,000 mm |
| Working Range | Maximum Loading Height | 2,284 mm |
| Working Range | Maximum Dumping Height | 1,890 mm |
| Working Range | Maximum Operating Height | 3,155 mm |
| Working Range | Height to Bucket Pin | 2,398 mm |
| Working Range | Bucket Dump Angle at Maximum Height | 22° |
| Dimensions | Minimum Height | 1,836 mm |
| Chassis | Departure Angle | 20° |
| Chassis | Ground Clearance | 245 mm |
| Working Range | Dumping Distance | 550 mm |
| Chassis | Wheelbase | 722 mm |
| Dimensions | Overall Dimensions | 2607 × 1000 × 1836 mm |
| Dimensions | Length Including Bucket | 2,607 mm |
| Dimensions | Length Excluding Bucket | 1,887 mm |
| Tires | Tire Model | 570 × 155 |
| Engine | Engine Brand | Kubota |
| Engine | Engine Model | D1105-E4B |
| Engine | Rated Power | 18.2 kW |
| Engine | Cylinder | 3 |
| Engine | Intake Method | Naturally Aspirated |
| Engine | Emission Standard | EPA / ERUO5 |
| Engine | Fuel Tank Capacity | 24 L |
Up to 12 km/h on a Wheeled Chassis
The S25 has a listed travel speed of 0–12 km/h.
For work that involves repeated movement between loading points on an appropriate surface, that higher travel speed is one of the clearest differences between the S25 and CSTAR’s smaller tracked machines.
Request a CSGL-S25 Quote
Send the material, typical load, working surface, travel requirement and destination country.
