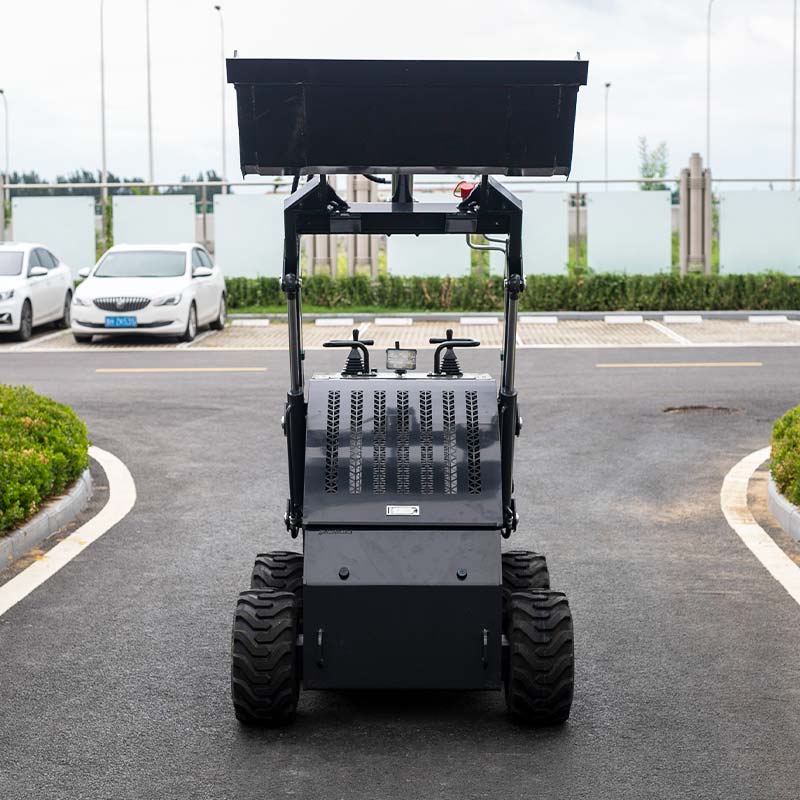

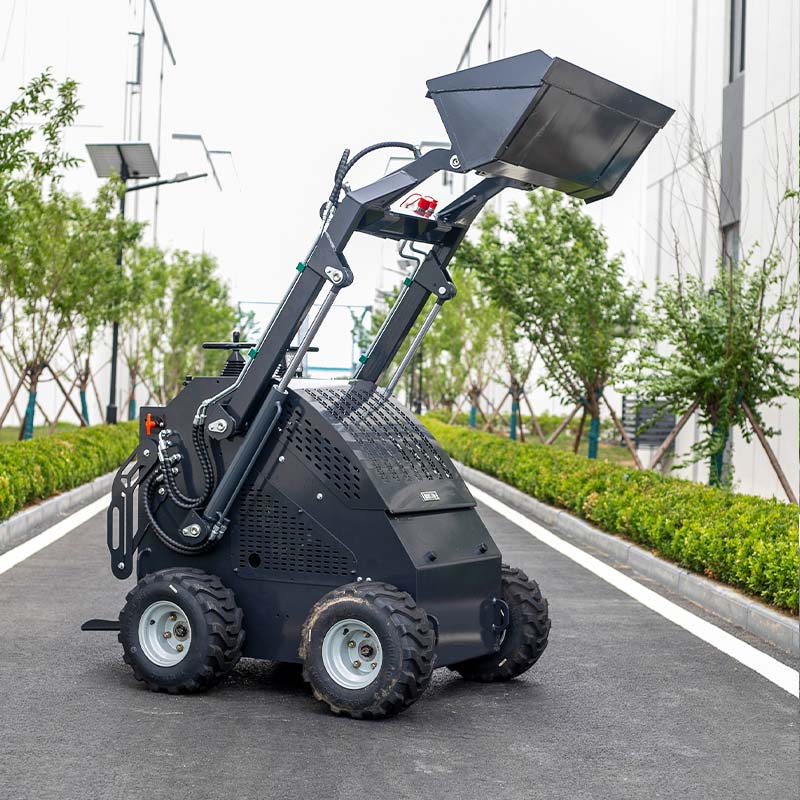

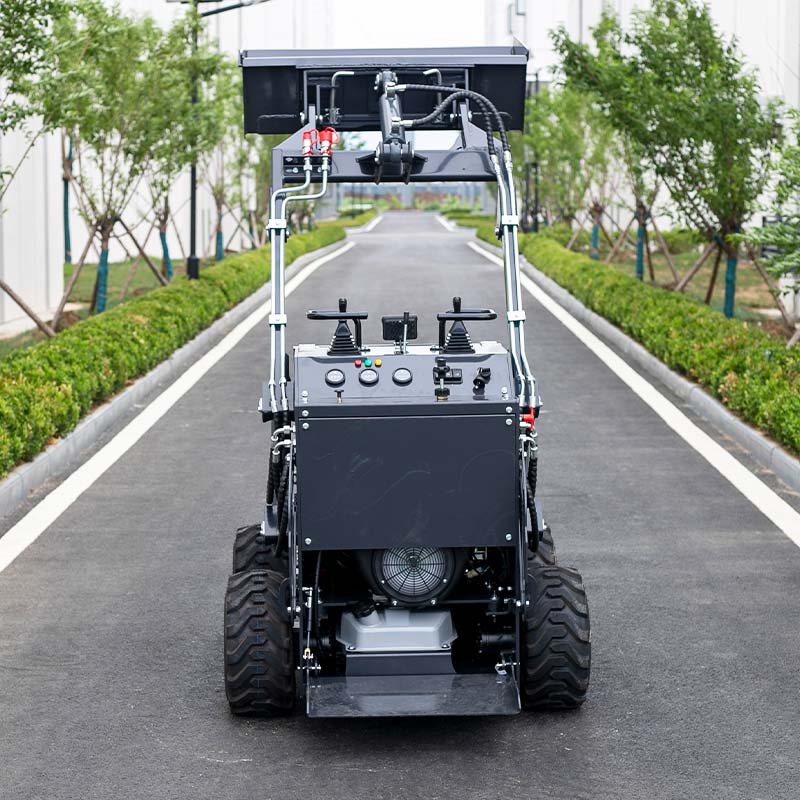

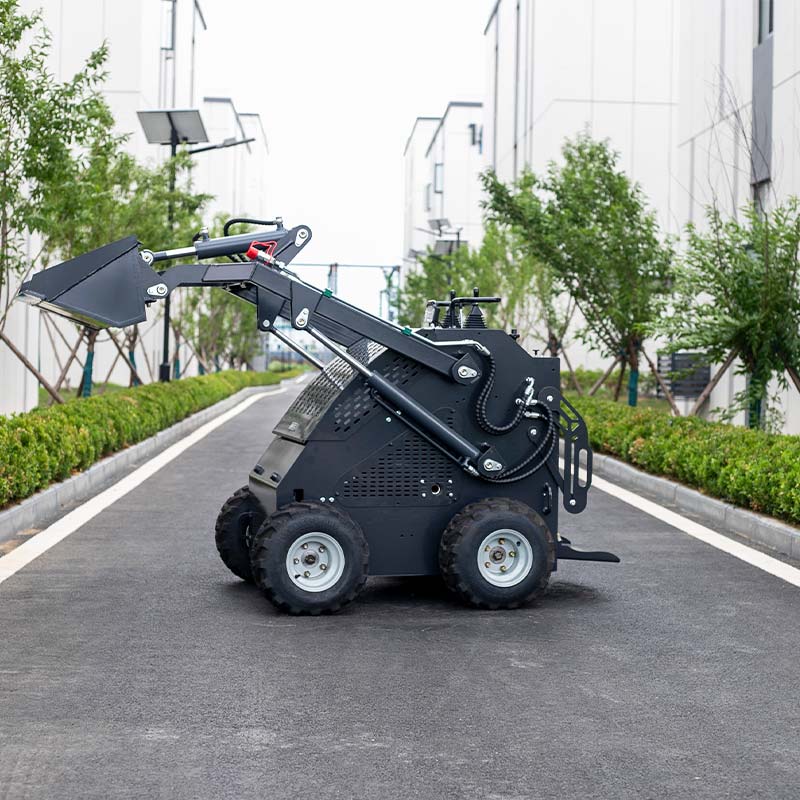

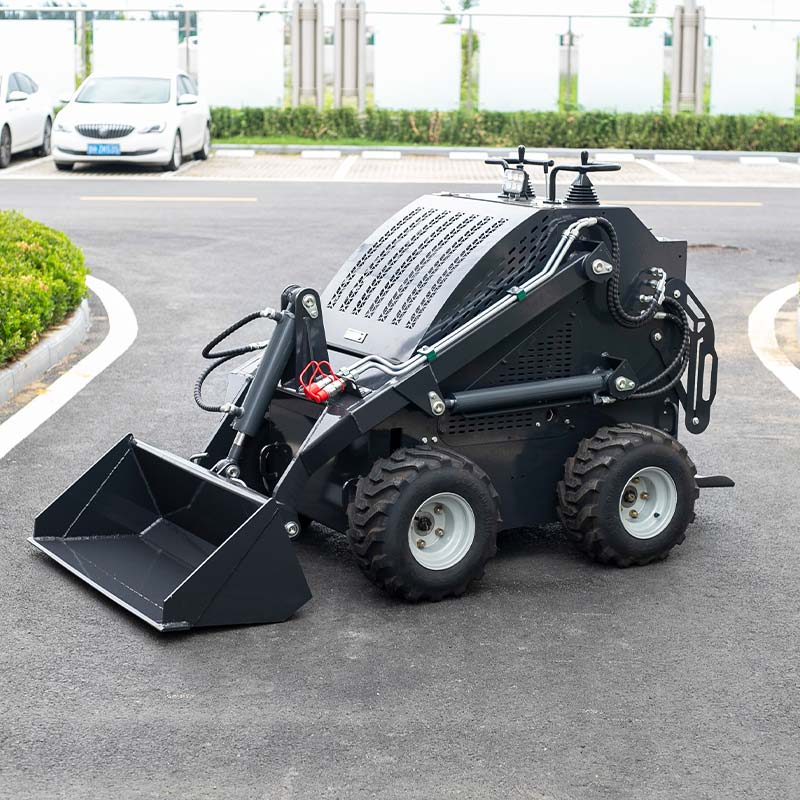

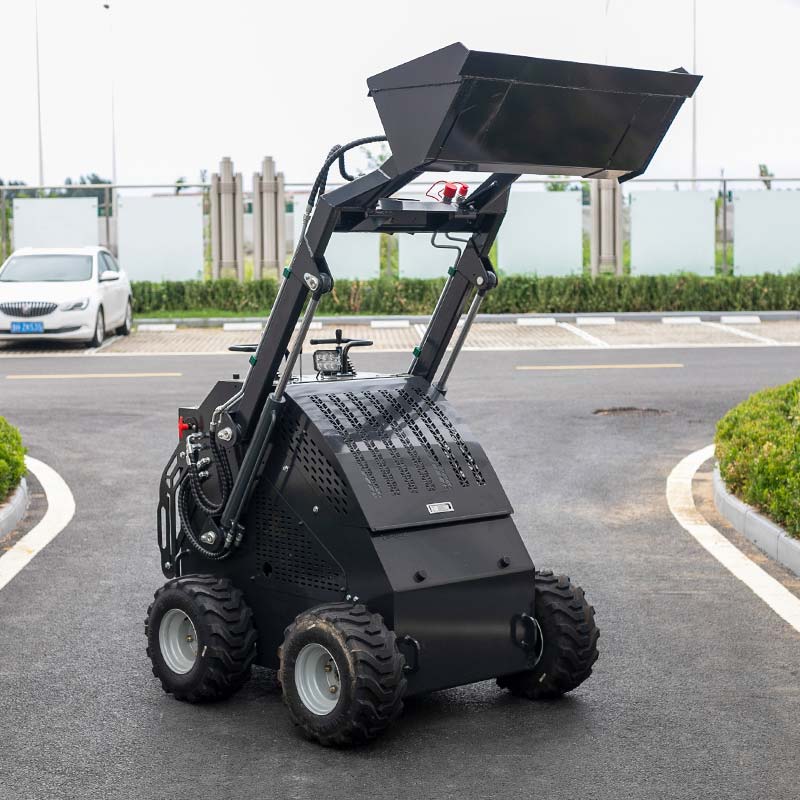

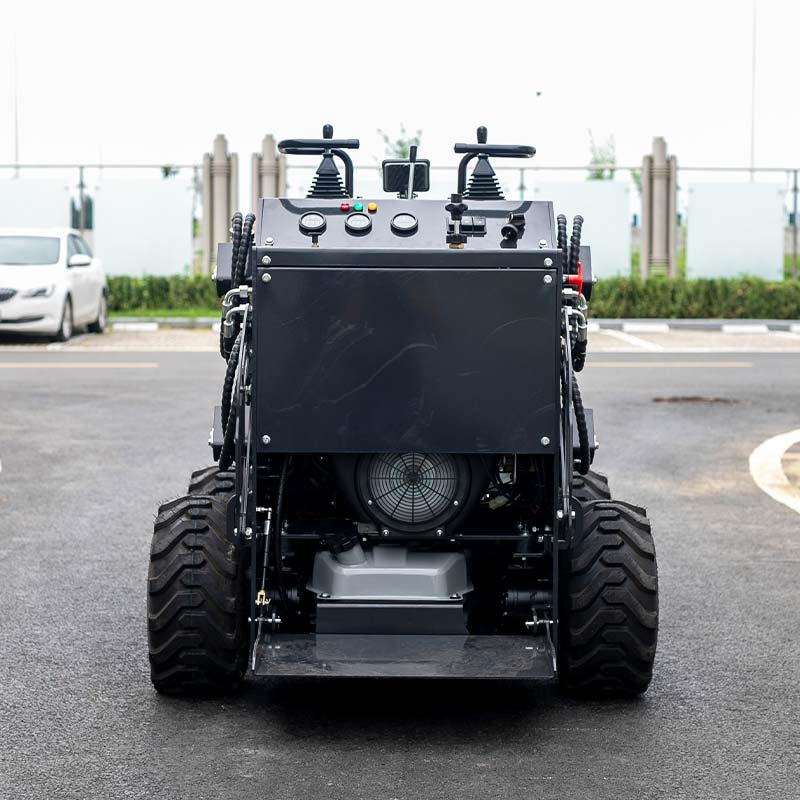

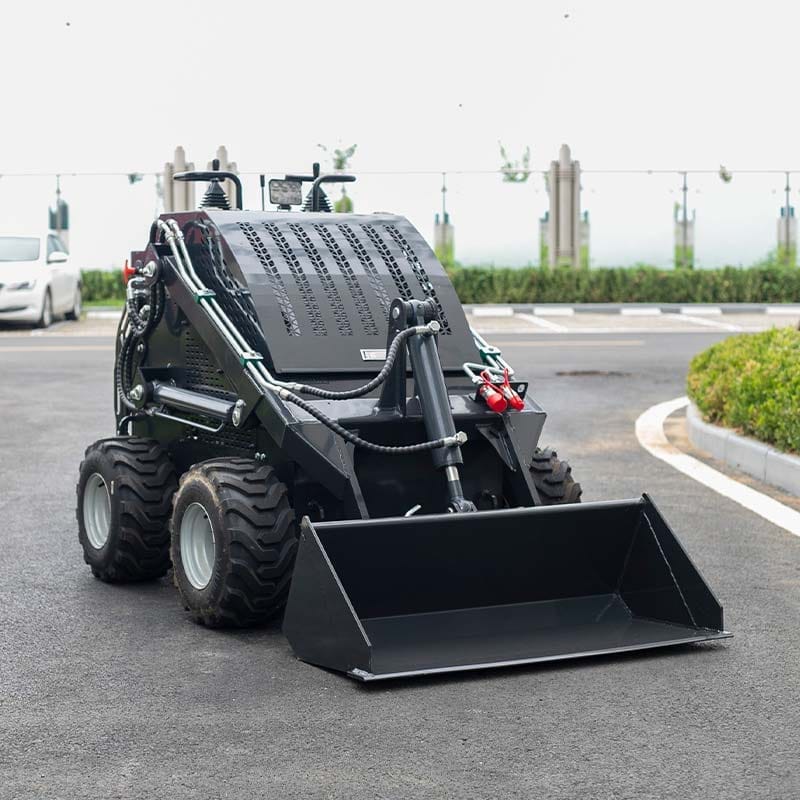

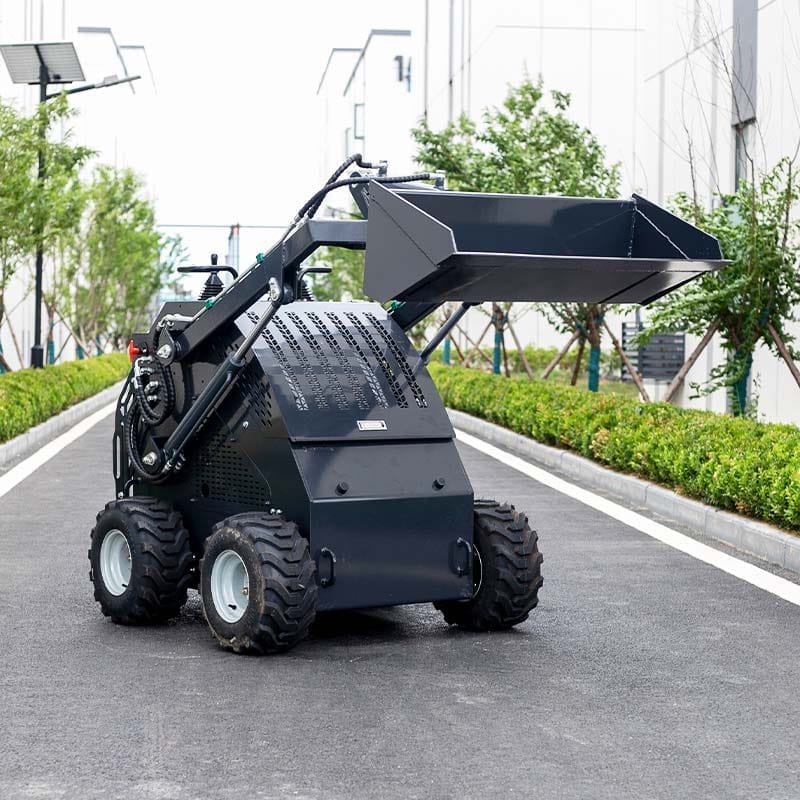

The CSTAR CSGL-S460 Mini Skid Steer Loader has a 300 kg rated load, a 0.1 m³ bucket and 4.5 kN maximum breakout force.
Its 300 kg rating places the S460 between CSTAR’s lighter 180–200 kg mini skid steers and the 350–450 kg models, giving buyers a clear middle-capacity wheeled option.
CSGL-S460 Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| General | Model | CSGL-S460 |
| Performance | Operating Weight | 1060kg |
| Performance | Bucket Capacity | 0.1m³ |
| Performance | Climbing Ability | 25° |
| Performance | Maximum Breakout Force | 4.5KN |
| Performance | Rated Load | 300kg |
| Performance | Maximum Load | 400kg |
| Performance | Travel Speed | 0-6km/h |
| Dimensions | Vehicle Width | 1110mm |
| Hydraulic System | Rated Pressure | 16Mpa |
| Bucket | Bucket Width | 1050mm |
| Working Range | Max Loading Height | 1680mm |
| Working Range | Max Dumping Height | 1370mm |
| Working Range | Max Operating Height | 2290mm |
| Working Range | Height to Bucket Pin | 1835mm |
| Working Range | Max Height Bucket Dump Angle | 63° |
| Dimensions | Min Height | 1300mm |
| Chassis | Departure Angle | 18° |
| Chassis | Ground Clearance | 125mm |
| Working Range | Dumping Distance | 261mm |
| Chassis | Wheelbase | 760mm |
| Dimensions | Overall Dimensions | 2194*1050*1300mm |
| Dimensions | Length Including Bucket | 2194mm |
| Dimensions | Length Excluding Bucket | 1770mm |
| Tires | Tire Model | 18*8.5-8 |
| Power System | Brand | Lithium electricity/KOOP/Rato/B&S |
| Power System | Model | Lithium iron phosphate/292f/R740/Vanguard23 |
| Power System | Rated Power | 8kw,72V,200ah/15/16.8/17kw |
| Engine | Cylinder | 2 |
| Engine | Intake Method | Natural inhalation |
| Engine | Emission Standard | EPA/ERUO5 |
| Engine | Fuel Tank Capacity | 10L |
A Middle Step in Rated Capacity
At 300 kg rated load, the S460 provides a clear step up from the 180–200 kg machines without moving directly to the S480’s 350 kg or S25’s 450 kg rating.
4.5 kN Breakout Force
The S460 bucket system is listed at 4.5 kN maximum breakout force, providing another useful comparison point for bucket filling work beyond rated load alone.
Request a CSGL-S460 Quote
Send the material, typical load, working surface, required dumping height and destination country.
