CSGL-S390

Rated loading weight：989kg

Bucket capacity：0.1m³

Engine：192FH/R420D/XR13.5

Dimension：2281*1050*1300mm

Mini Skid Steer Loaders are compact, versatile, and easy to maneuver in limited spaces. Compatible with multiple attachments, they can perform digging, lifting, and landscaping tasks, offering efficiency and flexibility for construction and agriculture.

Get a quote

CSGL-S390

Rated loading weight：989kg

Bucket capacity：0.1m³

Engine：192FH/R420D/XR13.5

Dimension：2281*1050*1300mm

Mini Skid Steer Loaders are compact, versatile, and easy to maneuver in limited spaces. Compatible with multiple attachments, they can perform digging, lifting, and landscaping tasks, offering efficiency and flexibility for construction and agriculture.

Contact Us
Get a quote

Product Categories

Get In Touch

官网询盘

CSGL-S390

ModelCSGL-S390
Basic performance parameters
Operating weight1050kg
Bucket capacity0.12m³
Climbing ability25°
Maximum breakout force3.5KN
Rated load200kg
Maximum load300kg
Travel speed0-6km/h
Three-item sum of work9s
Working system pressure17bar
Bucket width1050mm
Max loading height1830mm
Max dumping height1470mm
Max operating height2620mm
Height to bucket pin2000mm
Max height bucket dump angle63°
Min height1250mm
Tail length220mm
Ground clearance180mm
Dumping distance600mm
Wheelbase800mm
Dimensions
Overall dimensions2400*1050*1250mm
Length including bucket2400mm
Length excluding bucket1900mm

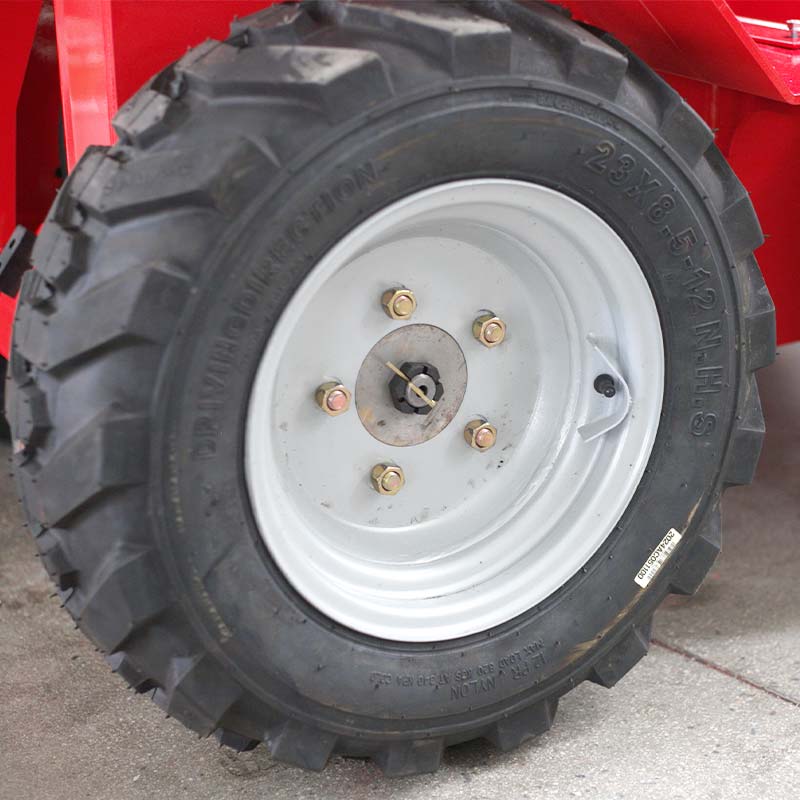

Tire model23*8.5-12
Engine
BrandLithium electricity/KOOP/Rato/B&S
ModelLithium iron phosphate/192FH/R420D/XR13.5
Rated power6kw、72V、125ah/7.5/8.6/9/9.9kw
Cylinder1
Intake methodNatural inhalation
Emission standardEPA/ERUO5
Fuel tank capacity5L

Attachments & Parts

Brush Cutter
Brush Cutter
Log Grapple
Log Grapple
Snow Blower
Snow Blower
Mixing Bucket
Mixing Bucket
Land Leveler
Land Leveler
Straight Dig
Straight Dig
Land Reclamation Machine
Land Reclamation Machine
Soil Conditioner
Soil Conditioner
Rotary Tiller
Rotary Tiller
Road Roller
Road Roller
Single Ripper
Single Ripper
Wood Splitter
Wood Splitter
Road Sweeper
Road Sweeper

our Advantages

neiye-3

Customization Supported

Logo, Color, Engine, Accessories, etc. We can provide you with exclusive customized services and produce the products you want according to your requirements, including but not limited to Logo customization, color customization, engine customization and accessories customization.

Widened Pedals More Comfortable and Safer

The widened and thickened pedal increases the operator's standing stability, especially when the equipment encounters bumps, vibrations, etc. during driving or operation, which can reduce the risk of the operator slipping and ensuring the operator's safety.

neiye-4

Widened Pedals More Comfortable and Safer

The widened and thickened pedal increases the operator's standing stability, especially when the equipment encounters bumps, vibrations, etc. during driving or operation, which can reduce the risk of the operator slipping and ensuring the operator's safety.

chanpinneiye-3

One-Stop Service

Delivery to your door, convenient and fast. The establishment of multiple overseas warehouses (Europe and North America) allows you to enjoy door-to-door delivery service without leaving your home, which is convenient, fast and efficient.

Retractable Crawler Easily Cope With Different Terrains

In complex terrain, telescopic crawlers can improve the operating efficiency of excavators. Proper length adjustment can help excavators avoid sinking into soft soil or landslides, enhancing safety. Good design and maintenance can extend the service life of telescopic crawlers.

chanpinneiye-2

Retractable Crawler Easily Cope With Different Terrains

In complex terrain, telescopic crawlers can improve the operating efficiency of excavators. Proper length adjustment can help excavators avoid sinking into soft soil or landslides, enhancing safety. Good design and maintenance can extend the service life of telescopic crawlers.

Application Industries

neiye-5

Cstar Machinery is a professional manufacturer of Mini Skid Steer Loader. We have comprehensive certifications, a dedicated after-sales team, and warehouses all over the world,stocking our equipment. We are looking for partners around the world to develop and progress together.
Cstar Mini Skid Steer Loader are easy to operate, offer excellent quality, and are available at competitive prices, making them an excellent choice for personal use, team use, or distribution.

Related Products

CSGL-S460

Rated loading weight：1060kg

Bucket capacity：0.1m³

Engine：LFP/292f/R740/Vanguard23

Dimension：2194*1050*1300mm

Get Quote
more >

CSGL-T460

Rated loading weight：1120kg

Bucket capacity：0.1m³

Engine：LFP/292f/R740/Pioneer 23

Dimension：2169*1050*1300mm

Get Quote
more >

CSGL-T360

Rated loading weight：941kg

Bucket capacity：0.1m³

Engine：LFP/192FH/R420D/XR13.5

Dimension：2092*1050*1300mm

Get Quote
more >

CSGL-S360

Rated loading weight ：880kg

Bucket capacity：0.1m³

Engine：LAB/192FH/R420D/XR13.5

Dimension：2130*1050*1300mm

Get Quote
more >
Why should you buy from us not from other suppliers?

The company adheres to the service philosophy of ‘quality first, long-term cooperation’ and provides high-quality productsand one-stop technical services to customers in over 150 countries.Our staff is a group of young people with highlytechnical knowledge, who can solve all your problems!

We can provide you with all services, including but not limited to: transportation, customization, expedited delivery, andmore.

Yes, we take pride in providing comprehensive after-sales service. Our team is available to assist you with any issues orquestions you may have regarding the operation, maintenance, or repair of your forklifts. We also offer spare parts andaccessories to ensure the continuous operation of your equipment.

Alwavs a pre-production sample before mass production; Alwavs final inspection before shipment; And before shipmentthere are three rounds of inspections covering over 180 specific tests! We guarantee that your vehicle will have no issuesupon delivery!

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES. Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF. Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow.

Yes, we offer a full range of genuine spare parts for our mini excavators. Please contact our Parts Department for more information.
