Cstar Machinery Co., Ltd.

CSGL-S25

CSGL-S25

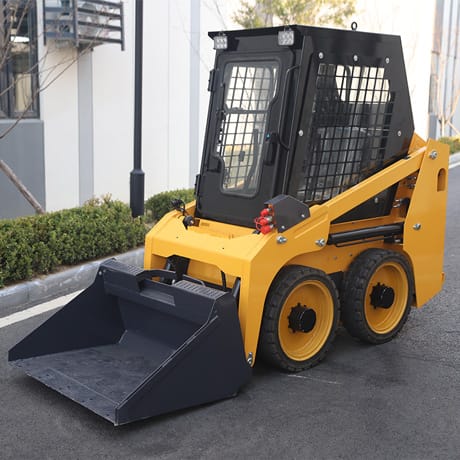

CSGL-S25 - Image 2

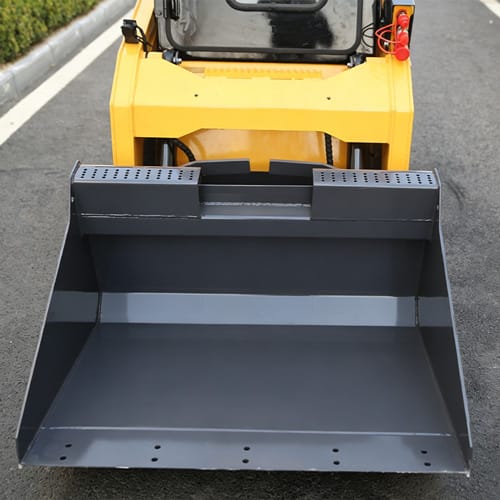

CSGL-S25 - Image 3

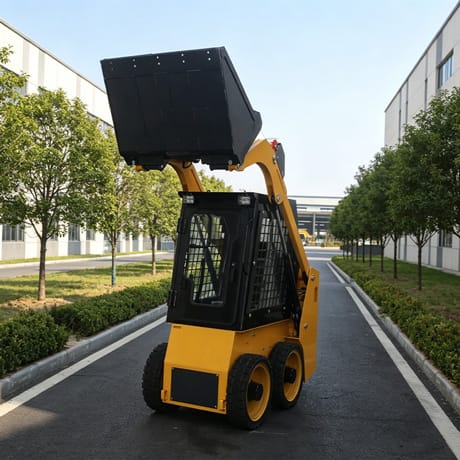

CSGL-S25 - Image 4

CSGL-S25

Rated loading weight  ：1665kg

Bucket capacity  ：0.22m³

Engine  ：D1105-E4B

Dimension  ：2607*1000*1836mm

Mini Skid Steer Loaders are compact, versatile, and easy to maneuver in limited spaces. Compatible with multiple attachments, they can perform digging, lifting, and landscaping tasks, offering efficiency and flexibility for construction and agriculture.

Get a quote

CSGL-S25

Rated loading weight  ：1665kg

Bucket capacity  ：0.22m³

Engine  ：D1105-E4B

Dimension  ：2607*1000*1836mm

Mini Skid Steer Loaders are compact, versatile, and easy to maneuver in limited spaces. Compatible with multiple attachments, they can perform digging, lifting, and landscaping tasks, offering efficiency and flexibility for construction and agriculture.

Contact Us
Get a quote

Product Categories

Get In Touch

官网询盘

CSGL-S25

ModelCSGL-S25
Basic performance parameters　
Operating weight1665kg
Bucket capacity0.22m³
Climbing ability25°
Maximum breakout force14.5KN
Rated load450kg
Maximum load850kg
Travel speed0-12km/h
Vehicle width900mm
Rated pressure18Mpa
Bucket width1000mm
Max loading height2284mm
Max dumping height1890mm
Max operating height3155mm
Height to bucket pin2398mm
Max height bucket dump angle22°
Min height1836mm
Departure angle20°
Ground clearance245mm
Dumping distance550mm
Wheelbase722mm
Dimensions　
Overall dimensions2607*1000*1836mm
Length including bucket2607mm
Length excluding bucket1887mm
Tire model570*155
Engine　
BrandKUBATA
ModelD1105-E4B
Rated power18.2kw
Cylinder3
Intake methodNaturally aspirated
Emission standardEPA/ERUO5
Fuel tank capacity24L

Attachments & Parts

Brush Cutter
Brush Cutter
Log Grapple
Log Grapple
Snow Blower
Snow Blower
Mixing Bucket
Mixing Bucket
Land Leveler
Land Leveler
Straight Dig
Straight Dig
Land Reclamation Machine
Land Reclamation Machine
Soil Conditioner
Soil Conditioner
Rotary Tiller
Rotary Tiller
Road Roller
Road Roller
Single Ripper
Single Ripper
Wood Splitter
Wood Splitter
Road Sweeper
Road Sweeper

our Advantages

Customization Supported

Logo, Color, Engine, Accessories, etc. We can provide you with exclusive customized services and produce the products you want according to your requirements, including but not limited to Logo customization, color customization, engine customization and accessories customization.

Widened Pedals More Comfortable and Safer

The widened and thickened pedal increases the operator's standing stability, especially when the equipment encounters bumps, vibrations, etc. during driving or operation, which can reduce the risk of the operator slipping and ensuring the operator's safety.

Widened Pedals More Comfortable and Safer

The widened and thickened pedal increases the operator's standing stability, especially when the equipment encounters bumps, vibrations, etc. during driving or operation, which can reduce the risk of the operator slipping and ensuring the operator's safety.

One-Stop Service

Delivery to your door, convenient and fast. The establishment of multiple overseas warehouses (Europe and North America) allows you to enjoy door-to-door delivery service without leaving your home, which is convenient, fast and efficient.

After-sales Service Team：24/7 Online One-to-One Service

Our enthusiastic and professional after-sales team is available 24/7 to provide dedicated one-to-one support and resolve your concerns promptly.

After-sales Service Team：24/7 Online One-to-One Service

Our enthusiastic and professional after-sales team is available 24/7 to provide dedicated one-to-one support and resolve your concerns promptly.

Application Industries

Cstar Machinery is a professional manufacturer of Mini Skid Steer Loader. We have comprehensive certifications, a dedicated after-sales team, and warehouses all over the world,stocking our equipment. We are looking for partners around the world to develop and progress together.
Cstar Mini Skid Steer Loader are easy to operate, offer excellent quality, and are available at competitive prices, making them an excellent choice for personal use, team use, or distribution.
