CSGL-T470

CSGL-T470

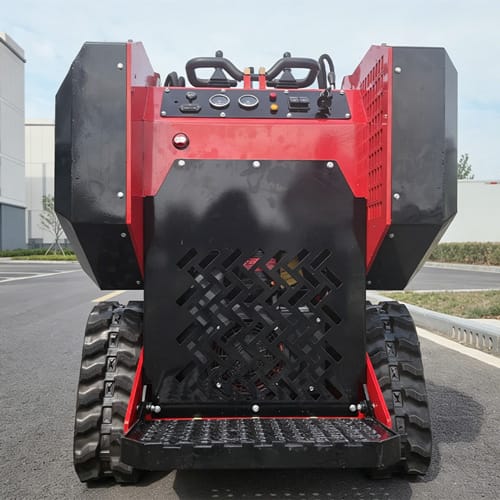

CSGL-T470 - Image 2

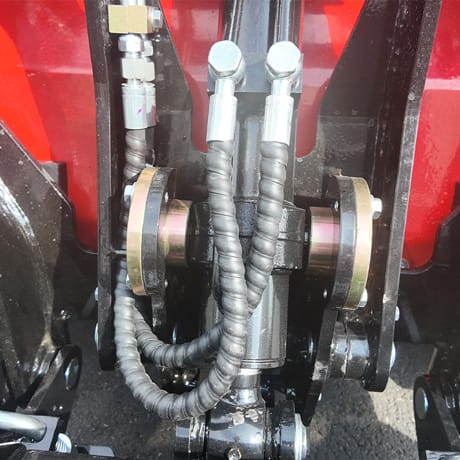

CSGL-T470 - Image 3

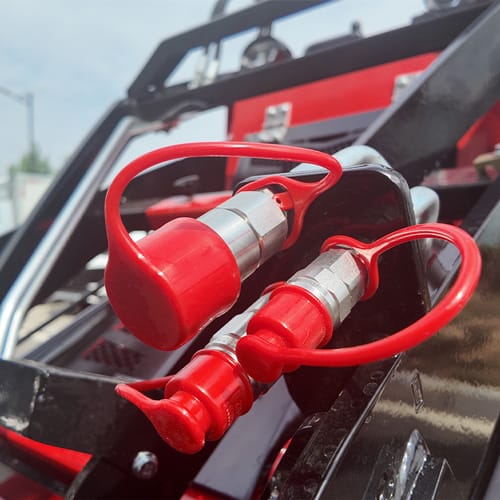

CSGL-T470 - Image 4

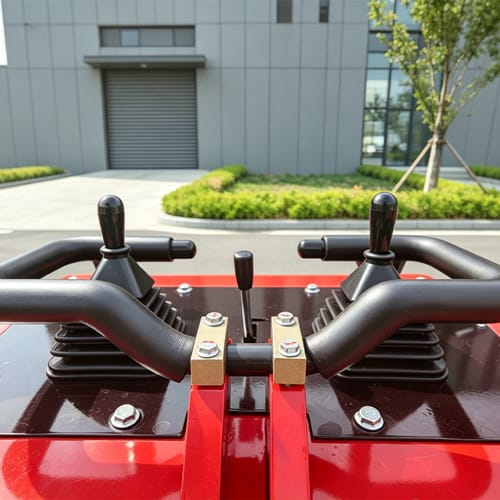

CSGL-T470 - Image 5

CSGL-T470

Rated loading weight  ：1291kg

Bucket capacity  ：0.12m³

Engine  ：R740/292F/Pioneer 23

Dimension  ： 2337*1050*1300mm

Mini Skid Steer Loaders are compact, versatile, and easy to maneuver in limited spaces. Compatible with multiple attachments, they can perform digging, lifting, and landscaping tasks, offering efficiency and flexibility for construction and agriculture.

Get a quote

CSGL-T470

Rated loading weight  ：1291kg

Bucket capacity  ：0.12m³

Engine  ：R740/292F/Pioneer 23

Dimension  ： 2337*1050*1300mm

Mini Skid Steer Loaders are compact, versatile, and easy to maneuver in limited spaces. Compatible with multiple attachments, they can perform digging, lifting, and landscaping tasks, offering efficiency and flexibility for construction and agriculture.

Contact Us
Get a quote

Product Categories

Get In Touch

官网询盘

CSGL-T470

ModelCSGL-T470
Basic performance parameters　
Operating weight1291kg
Bucket capacity0.12m³
Climbing ability25°
Maximum breakout force5.1KN
Rated load240kg
Maximum load400kg
Travel speed0-5km/h
Vehicle width1024mm
Rated pressure16Mpa
Bucket width1050mm
Max loading height2024mm
Max dumping height1376mm
Max operating height2561mm
Height to bucket pin2071mm
Max height bucket dump angle63°
Min height1300mm
Departure angle25°
Ground clearance195mm
Dumping distance231mm
Track contact length1300mm
Dimensions　
Overall dimensions2337*1050*1300mm
Length including bucket2337mm
Length excluding bucket1750mm
Track model180*72*35
Engine　
BrandRato/KOOP/B&S
ModelR740/292F/Vanguard23
Rated power16.8/15/17kw
Cylinder2
Intake methodNaturally aspirated
Emission standardEPA/ERUO5
Fuel tank capacity21L

Attachments & Parts

Brush Cutter
Brush Cutter
Log Grapple
Log Grapple
Snow Blower
Snow Blower
Mixing Bucket
Mixing Bucket
Land Leveler
Land Leveler
Straight Dig
Straight Dig
Land Reclamation Machine
Land Reclamation Machine
Soil Conditioner
Soil Conditioner
Rotary Tiller
Rotary Tiller
Road Roller
Road Roller
Single Ripper
Single Ripper
Wood Splitter
Wood Splitter
Road Sweeper
Road Sweeper

our Advantages

Customization Supported

Logo, Color, Engine, Accessories, etc. We can provide you with exclusive customized services and produce the products you want according to your requirements, including but not limited to Logo customization, color customization, engine customization and accessories customization.

Widened Pedals More Comfortable and Safer

The widened and thickened pedal increases the operator's standing stability, especially when the equipment encounters bumps, vibrations, etc. during driving or operation, which can reduce the risk of the operator slipping and ensuring the operator's safety.

Widened Pedals More Comfortable and Safer

The widened and thickened pedal increases the operator's standing stability, especially when the equipment encounters bumps, vibrations, etc. during driving or operation, which can reduce the risk of the operator slipping and ensuring the operator's safety.

One-Stop Service

Delivery to your door, convenient and fast. The establishment of multiple overseas warehouses (Europe and North America) allows you to enjoy door-to-door delivery service without leaving your home, which is convenient, fast and efficient.

After-sales Service Team：24/7 Online One-to-One Service

Our enthusiastic and professional after-sales team is available 24/7 to provide dedicated one-to-one support and resolve your concerns promptly.

After-sales Service Team：24/7 Online One-to-One Service

Our enthusiastic and professional after-sales team is available 24/7 to provide dedicated one-to-one support and resolve your concerns promptly.

Application Industries

Cstar Machinery is a professional manufacturer of Mini Skid Steer Loader. We have comprehensive certifications, a dedicated after-sales team, and warehouses all over the world,stocking our equipment. We are looking for partners around the world to develop and progress together.
Cstar Mini Skid Steer Loader are easy to operate, offer excellent quality, and are available at competitive prices, making them an excellent choice for personal use, team use, or distribution.

Related Products

CSGL-V1000

Rated loading weight  ：1892kg

Bucket capacity  ：0.19m³

Engine  ：3TNV80/D1105

Dimension  ：2691*1240*1548mm

Get Quote
more >

CSGL-S55

Rated loading weight  ：3845kg

Bucket capacity  ：0.4m³

Engine  ：4TNV80/HFC4DA1-2C3

Dimension  ：3450*1800*2095mm

Get Quote
more >

CSGL-C1200

Rated loading weight ：1825kg

Bucket capacity  ： 0.15m³

Engine ：D1105

Dimension  ：2867*1045*1499mm

Get Quote
more >

CSGL-T360

Rated loading weight：941kg

Bucket capacity：0.1m³

Engine：LFP/192FH/R420D/XR13.5

Dimension：2092*1050*1300mm

Get Quote
more >
Why should you buy from us not from other suppliers?

The company adheres to the service philosophy of ‘quality first, long-term cooperation’ and provides high-quality productsand one-stop technical services to customers in over 150 countries.Our staff is a group of young people with highlytechnical knowledge, who can solve all your problems!

We can provide you with all services, including but not limited to: transportation, customization, expedited delivery, andmore.

Yes, we take pride in providing comprehensive after-sales service. Our team is available to assist you with any issues orquestions you may have regarding the operation, maintenance, or repair of your forklifts. We also offer spare parts andaccessories to ensure the continuous operation of your equipment.

Alwavs a pre-production sample before mass production; Alwavs final inspection before shipment; And before shipmentthere are three rounds of inspections covering over 180 specific tests! We guarantee that your vehicle will have no issuesupon delivery!

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES. Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF. Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow.

Yes, we offer a full range of genuine spare parts for our mini excavators. Please contact our Parts Department for more information.
