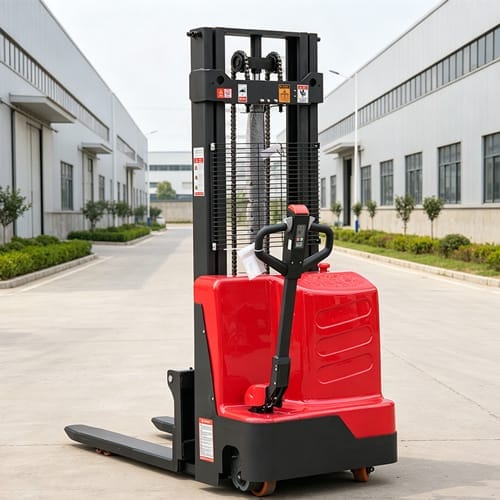

The CSHF-B15 1.5 ton walkie electric stacker combines powered travel and lifting in a 790 mm-wide pedestrian-operated chassis. It is rated for 1,500 kg at a 500 mm load center.
Lift-height options of 2,000, 2,500, and 3,000 mm are listed, with corresponding lowered mast heights of 1,560, 1,760, and 2,000 mm. The chassis has a 1,500 mm turning radius and 1,960 mm overall length.
A Lighter Walkie Stacker for 1.5 Ton Loads
The CSHF-B15 combines a 790 mm walkie chassis with a 510 kg service weight, 1.5 kW drive motor, and 2.2 kW lifting motor. It is intended for narrow indoor routes where pallet loads stay within 1,500 kg and a riding platform is unnecessary.
See the CSHF-B20 product page for the complete aisle-and-mast selection discussion and the 2,000 kg version. Before choosing either model, match the lift option to the lowest doorway and the highest storage level on the route.
CSHF-B15 Specifications
| Parameter | Specification |
|---|---|
| Model | CSHF-B15 |
| Operating Type | Walkie |
| Load Capacity | 1,500 kg |
| Load Center | 500 mm |
| Wheel Type | UP |
| Wheel Quantity — Drive/Balance/Load | 1 / 1 / 4 |
| Drive Wheel Size | Φ170 × 55 mm |
| Balance Wheel Size | Φ115 × 55 mm |
| Load Wheel Size | Φ80 × 70 mm |

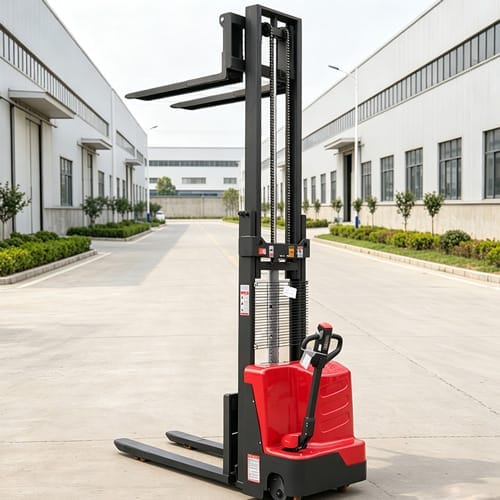

| Standard Lift Height Options | 2,000 / 2,500 / 3,000 mm |
| Mast Lowered Height by Lift Option | 1,560 / 1,760 / 2,000 mm |
| Minimum Fork Lowered Height | 85 mm |
| Outside Width Between Forks | 700 mm |
| Inside Width Between Forks | 340 mm |
| Fork Size — Length/Width/Thickness | 1,150 × 180 × 50 mm |
| Overall Length | 1,960 mm |
| Overall Width | 790 mm |
| Minimum Turning Radius | 1,500 mm |
| Travel Speed — Laden/Unladen | 5 / 6 km/h |
| Lift Speed — Laden/Unladen | 90 / 100 mm/s |
| Lowering Speed — Laden/Unladen | 90 / 100 mm/s |
| Gradeability — Laden/Unladen | 8% / 10% |
| Drive/Lift Motor | 1.5 / 2.2 kW |
| Battery | 48V; capacity not listed |
| Charger Specification | 48V / 8 |
| Brake Type | Electronic brake |
| Service Weight with Battery | 510 kg |
| Steering Type | Mechanical steering |
Request a Quote for the CSHF-B15
Send us the load weight and center, pallet dimensions, required lift height, doorway clearance, aisle width, and operating cycle. We will confirm the mast and battery configuration.
