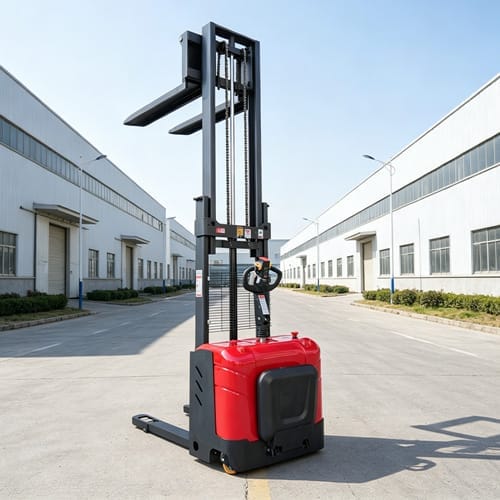

The CSHF-D15 1.5 ton double-lift electric stacker combines powered travel and lifting with electrically raised support legs. The adjustable clearance is intended for routes that include thresholds, ramps, or uneven transitions.
The listed model is rated for 1,500 kg, uses 1.5/2.2 kW drive and lifting power, and has an electronic brake. Fork ground clearance ranges from 90 to 160 mm, and the fork assembly measures 1,150 × 190 × 60 mm.
When Route Access Matters More Than Maximum Capacity
The CSHF-D15 combines a 1,500 kg rating with 90–160 mm adjustable clearance in an approximately 610 kg base machine. It is intended for lighter pallet work on routes where thresholds, short ramps, or raised floor joints make a conventional low-clearance chassis impractical.
The CSHF-D20 product page contains the expanded double-lift application guidance for heavier loads. For either version, provide the pallet opening, route obstruction height, required mast height, and battery duty when requesting a configuration.
CSHF-D15 Specifications
| Parameter | Specification |
|---|---|
| Model | CSHF-D15 |
| Load Capacity | 1,500 kg |
| Operation Type | Full-electric stand-on |
| Braking Method | Electronic brake |
| Vehicle Weight (Basic) | Approx. 610 kg |
| Fork Ground Clearance | 90–160 mm |
| Drive Motor Power | 48V / 1.5 kW |
| Lifting Pump Power | 48V / 2.2 kW |
| Fork Dimensions | 1,150 × 190 × 60 mm |
| Fork Outer Width | 700 mm |
| Fork Inner Width | 320 mm |
Request a Quote for the CSHF-D15
Send us the load weight, pallet opening, required lifting height, threshold or ramp dimensions, aisle width, and operating cycle. We will confirm the double-lift configuration.
