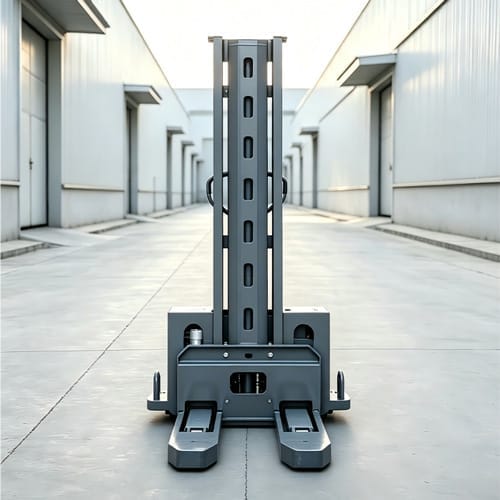

The CSHF-S10 1 ton electric self-lifting stacker is a pedestrian-operated machine designed for loading, unloading, and onboard transport with delivery vehicles. It is rated for 1,000 kg at a 400 mm load center and has a standard maximum lift height of 1,300 mm.
The CSHF-S10 measures 1,660 mm long and 890 mm wide, with a minimum turning radius of 1,080 mm. It uses a 48V 25Ah battery, a 0.8 kW drive motor, and a 2.2 kW lifting motor.
Where the CSHF-S10 Fits in Delivery-Vehicle Handling
The self-loading design is intended to reduce dependence on fixed loading equipment at each destination. Its 420 kg service weight, compact body, and automatic self-loading and unloading function make it relevant where the stacker must be carried with the delivery vehicle.
Compared with the CSHF-S15A, the S10 has 500 kg less rated capacity and a fixed listed 1,300 mm lift height rather than a range of mast options. It is 88 mm wider, while overall length is nearly the same. Both models list a 48V 25Ah battery and a 0.8 kW drive motor.
Choose the S10 when loads remain below 1,000 kg and the 1,300 mm standard lift height matches the vehicle deck. Confirm axle loads, vehicle payload, pallet dimensions, fork width, turning clearance, and loading procedure before ordering.
CSHF-S10 Specifications
| Parameter | Specification |
|---|---|
| Model | CSHF-S10 |
| Power Type | Electric |
| Operation Type | Pedestrian |
| Load Capacity | 1,000 kg |
| Load Center Distance | 400 mm |
| Front Overhang | 600 mm |
| Wheelbase | 905 mm |
| Service Weight (With Battery) | 420 kg |
| Axle Load — Laden Drive End/Load End | 330 / 1,100 kg |
| Axle Load — Unladen Drive End/Load End | 200 / 220 kg |
| Drive/Load Wheel Material | Polyurethane |
| Drive Wheel Size | Φ210×76 mm |
| Load Wheel Size | Φ80×50 mm |
| Balance Wheel Size | Φ65×30 mm |
| Front Track — Drive End | 755 mm |
| Rear Track — Load End | 420 mm |
| Minimum Mast Height | 1,647 mm |
| Standard Maximum Lift Height | 1,300 mm |
| Control Handle Height — Minimum/Maximum | 750 / 1,145 mm |
| Fork Surface Height After Lowering | 90 mm |
| Overall Length | 1,660 mm |
| Length to Fork Vertical Face | 460 mm |
| Overall Width | 890 mm |
| Fork Size | 70 / 190 / 1,200 mm (as supplied) |
| Fork Outside Width | 620 mm |
| Minimum Turning Radius | 1,080 mm |
Request a Quote for the CSHF-S10
Share the maximum load, pallet dimensions, delivery-vehicle floor height, vehicle payload, fork requirements, and loading method. We will verify whether the CSHF-S10 fits the application.
