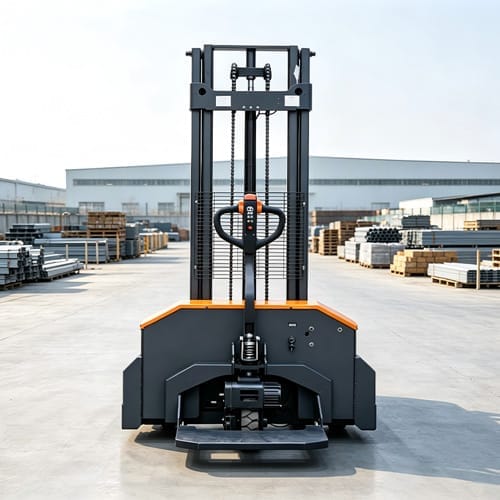

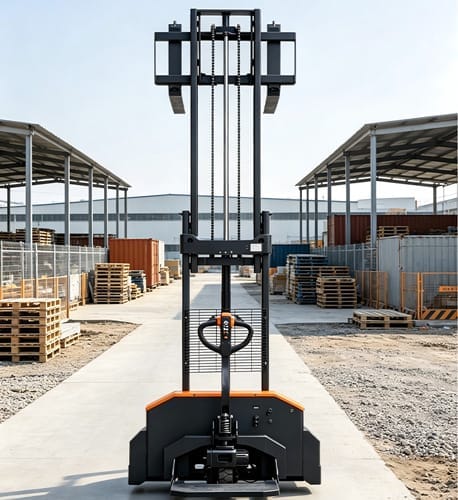

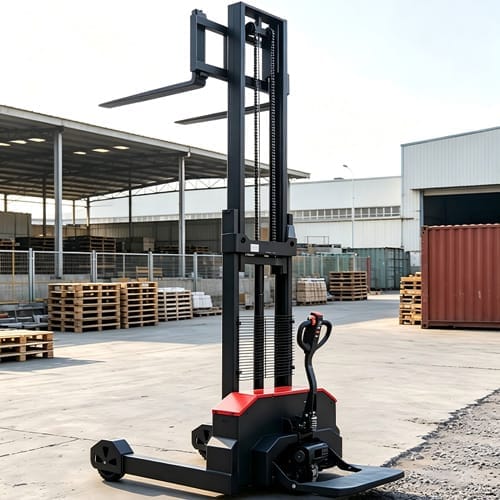

The CSHF-H15 1.5 ton all-terrain electric stacker is designed for outdoor factory areas, construction yards, open storage facilities, and cargo yards with uneven surfaces. Widened off-road wheels, a reinforced chassis, and a shock-absorbing structure are intended to improve travel over dirt, gravel, and uneven pavement.
The CSHF-H15 is rated for 1,500 kg and provides a 2,000 mm lifting height. It uses a 48V 1.5 kW drive motor and a 48V 2.2 kW lifting motor, with an overall length of 2,030 mm without the pedal and 2,405 mm with the pedal.
Choosing Between the CSHF-H15 and CSHF-H20
The H15 and H20 share the same listed chassis length, 2,000 mm lifting height, fork dimensions, wheel sizes, and 1,200 mm inner outrigger width. Their main differences are rated capacity and motor output.
The H20 adds 500 kg of rated capacity, raises drive motor output from 1.5 kW to 2 kW, and raises lifting motor output from 2.2 kW to 3 kW. Choose the H15 when loads remain comfortably below 1,500 kg; evaluate the H20 when loads approach that limit.
All-terrain capability still depends on surface condition, slope, load, tire condition, and operating procedure. Confirm the required ground clearance, overall width, battery capacity, travel speed, gradeability, and braking specification before finalizing an outdoor application, because these values are not included in the supplied table.
CSHF-H15 Specifications
| Parameter | Specification |
|---|---|
| Model | CSHF-H15 |
| Rated Load | 1,500 kg |
| Operation Type | Electric lifting |
| Overall Length — Without/With Pedal | 2,030 / 2,405 mm |
| Drive Motor Power | 48V / 1.5 kW |
| Lifting Motor Power | 48V / 2.2 kW |
| Lifting Height | 2,000 mm |
| Fork Size | 1,150 × 180 × 50 mm |
| Drive Wheel Size | Φ300×100 mm |
| Inner Width of Outriggers | 1,200 mm |
| Load Wheel Size | Φ300×80 mm |
Request a Quote for the CSHF-H15
Tell us the maximum load, ground surface, slope, travel distance, lifting height, pallet dimensions, and operating environment. We will help determine whether the CSHF-H15 has the required outdoor configuration.
