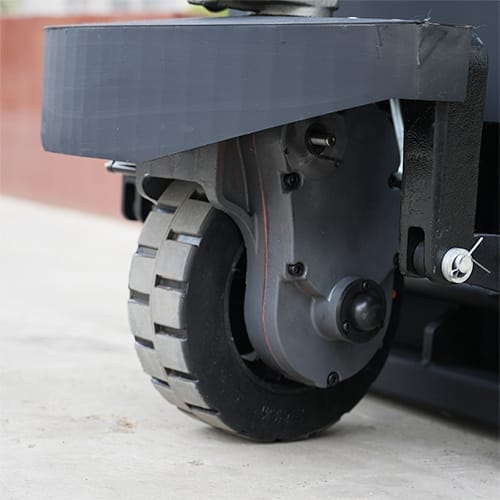

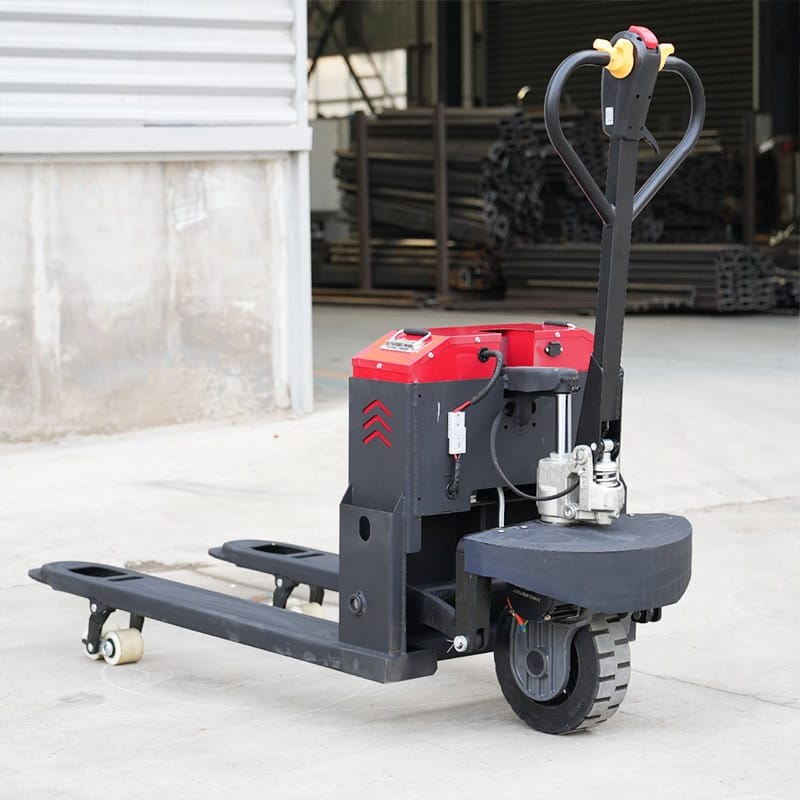

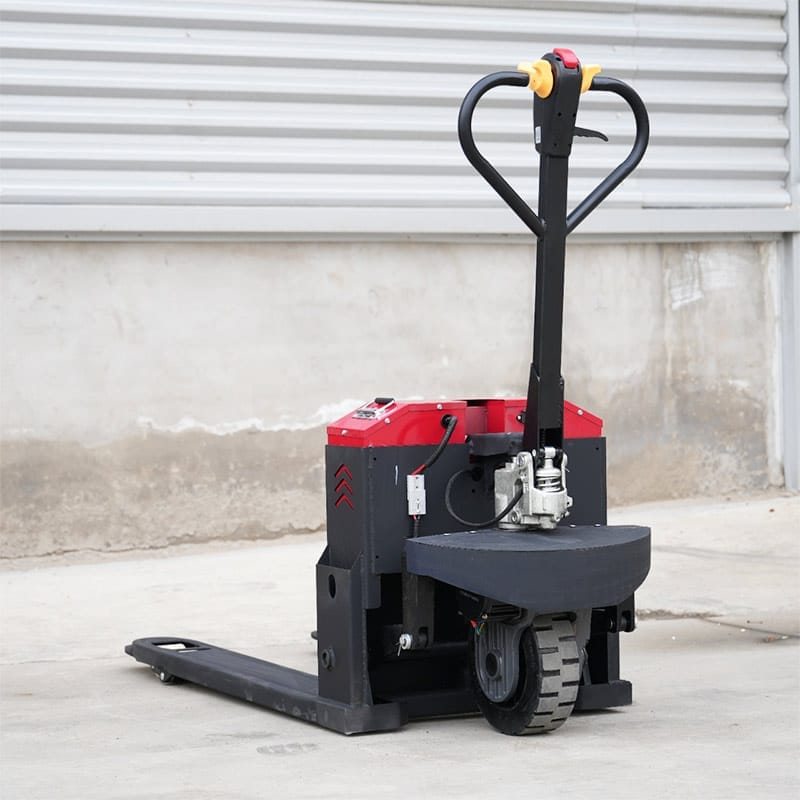

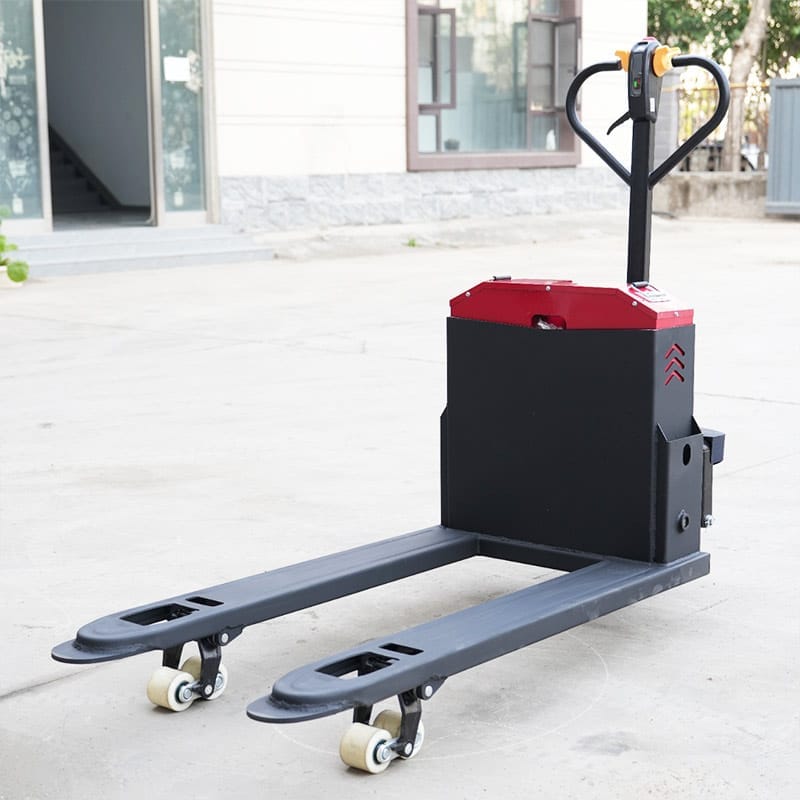

The CSTAR CSHP-BY30 3 ton semi-electric pallet truck combines powered travel with manual hydraulic lifting. A 300 × 100 mm off-road drive wheel differentiates it from the polyurethane-wheel BX30.
The BY30 is aimed at short outdoor or mixed-surface routes where electric travel reduces pushing effort but lift frequency remains suitable for manual operation.
CSHP-BY30 Specifications
| Parameter | Specification |
|---|---|
| Model | CSHP-BY30 |
| Rated Load Capacity | 3,000 kg |
| Load Center Distance | 500 mm |
| Operation Type | Semi-electric travel; manual lifting |
| Drive Wheel Type | Off-road rubber wheel |
| Drive Wheel Size | Φ300 × 100 mm |
| Load Wheel Size | Φ80 × 70 mm |
| Minimum Fork Height | 85 mm |
| Maximum Fork Height | 200 mm |
| Inner Width Between Forks | 230 / 365 mm |
| Outer Width Between Forks | 550 / 685 mm |
| Single Fork Width | 160 mm |
| Fork Length | 1,160 mm |
| Overall Length | 1,750 mm |
| Fork Thickness | 50 mm |
| Overall Height with Handle | 1,380 mm |
| Overall Width | 685 mm |
| Minimum Turning Radius | 1,550 mm |
| Overall Height without Handle | 700 mm |
| Gradeability — Laden/Unladen | 7% / 16% |
| Maximum Travel Speed — Laden/Unladen | 4 / 4.5 km/h |
| Battery | 48V / 20A |
| Drive Motor Power | 1,200 W |
| Overall Weight | 195 kg |
| Lifting Motor Power | / |
| Lifting Speed — Laden/Unladen | 2.2 / 3.3 cm/s |
A Semi-Electric Layout for Mixed-Surface Travel
The 1.2 kW drive motor handles horizontal movement, while the lifting system remains manual. This arrangement should be evaluated by travel distance and lift-cycle count separately: a long route may benefit from powered travel even when only a few pallets are raised during the shift.
At 195 kg with a 1,550 mm turning radius, the truck still needs adequate maneuvering space and a surface that remains within its laden gradeability and clearance limits.
BY30 or BX30: Start with the Floor
Choose the BY30 where the larger rubber wheel is required for outdoor paving and uneven transitions. The lighter BX30 uses a compact polyurethane wheel for suitable indoor floors; pallet dimensions and the 3,000 kg rated load remain separate checks in either case.
Request a Quote for the CSHP-BY30
Send the load weight, pallet opening, travel distance, lift frequency, outdoor surface condition, steepest gradient, charging location, and destination country.
