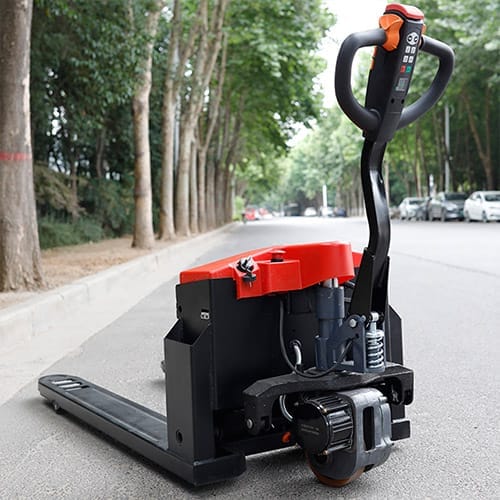

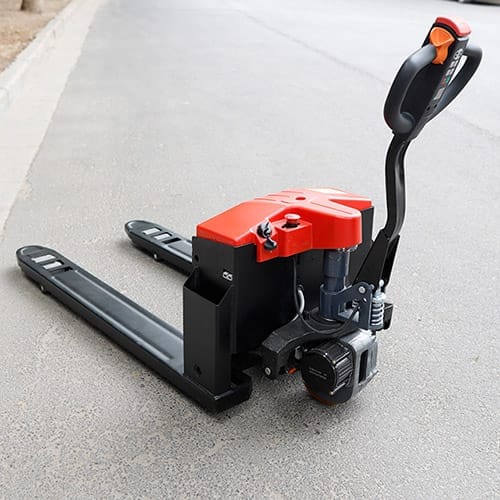

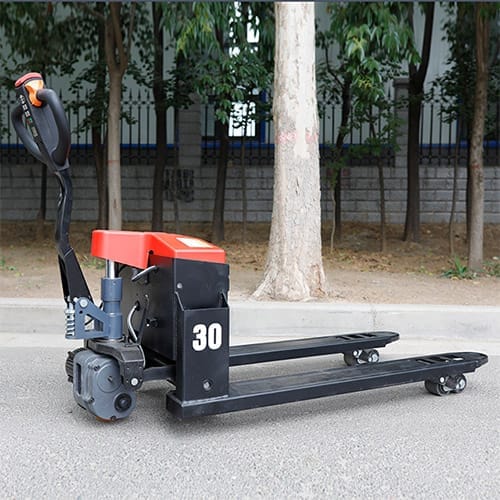

The CSTAR CSHP-XJ30 3 ton full-electric pallet truck combines a compact polyurethane drive wheel with powered travel and lifting. The drivetrain description highlights an integrated controller and fully sealed gear transmission.
This 165 kg, 685 mm-wide configuration is intended for flat-floor warehouse routes carrying loads up to the stated 3,000 kg rating.
CSHP-XJ30 Specifications
| Parameter | Specification |
|---|---|
| Model | CSHP-XJ30 |
| Rated Load Capacity | 3,000 kg |
| Operation Type | Full electric |
| Load Center Distance | 500 mm |
| Drive Wheel Type | PU |
| Drive Wheel Size | Φ175 × 55 mm |
| Load Wheel Size | Φ80 × 70 mm |
| Minimum Fork Height | 85 mm |
| Maximum Fork Height | 200 mm |
| Inner Width Between Forks | 230 / 365 mm |
| Outer Width Between Forks | 550 / 685 mm |
| Fork Length | 1,150 mm |
| Single Fork Width | 160 mm |
| Fork Thickness | 40 mm |
| Overall Length | 1,730 mm |
| Overall Width | 685 mm |
| Overall Height with Handle | 1,260 mm |
| Overall Height without Handle | 680 mm |
| Minimum Turning Radius | 1,550 mm |
| Maximum Travel Speed — Laden/Unladen | 4 / 4.5 km/h |
| Gradeability — Laden/Unladen | 7% / 16% |
| Battery | 48V / 20A |
| Drive Motor Power | 1,500 W |
| Lifting Motor Power | 1,200 W |
| Overall Weight | 165 kg |
| Lifting Speed — Laden/Unladen | 2.2 / 3.3 cm/s |
Define the Drivetrain for Service Planning
The controller, isolation circuit, sealed transmission, drive motor, and lift motor form one service package. Confirm component makes, diagnostic support, spare-parts availability, and warranty coverage for the destination market before finalizing the order.
This information is more useful for lifecycle planning than repeating general claims about reliability or reduced maintenance.
Check Pallet Geometry Before Capacity

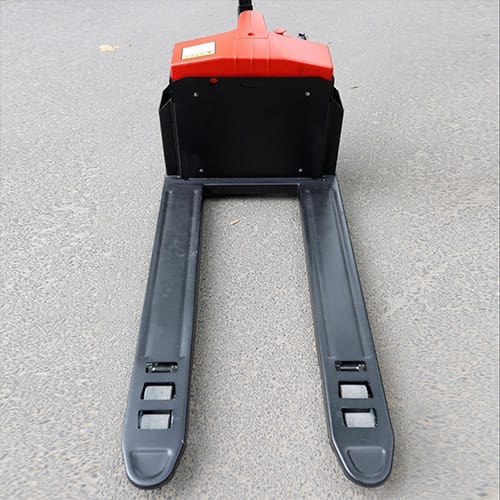

The truck offers 550 mm and 685 mm outer fork widths, an 85 mm minimum fork height, and 1,150 mm fork length. A 3,000 kg rating is only useful when the forks enter the pallet correctly and the load center remains within the specified 500 mm.
Request a Quote for the CSHP-XJ30
Send the load weight and center, pallet opening, floor condition, travel distance, service requirements, charging arrangement, and destination country.
