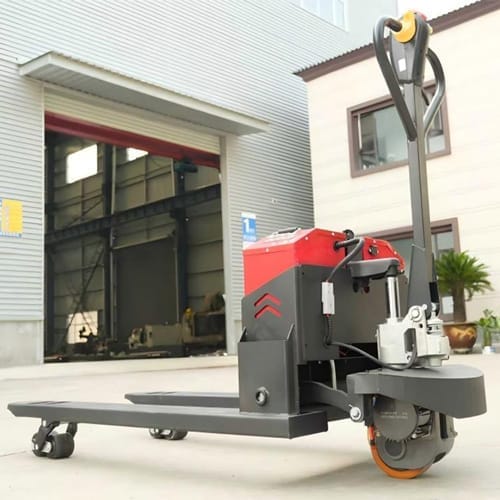

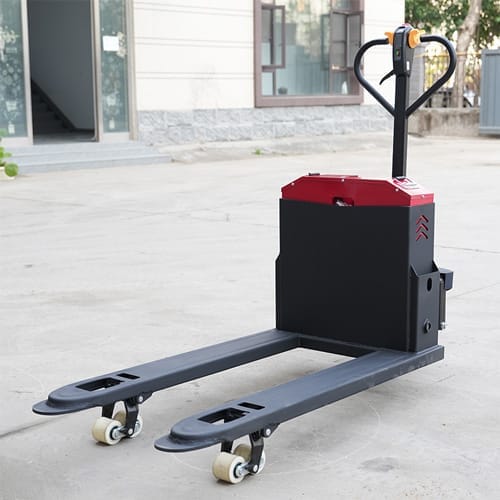

The CSTAR CSHP-BX30 3 ton semi-electric pallet truck uses powered travel with manual hydraulic lifting. Its polyurethane drive wheel and 685 mm maximum fork-outside width are intended for pallet movement on suitable indoor floors.
This configuration is useful when powered horizontal movement is needed but the operating frequency does not justify a fully powered lifting system.
CSHP-BX30 Specifications
| Parameter | Specification |
|---|---|
| Model | CSHP-BX30 |
| Rated Load Capacity | 3,000 kg |
| Operation Type | Semi-electric travel; manual lifting |
| Load Center Distance | 500 mm |
| Drive Wheel Type | PU |
| Drive Wheel Size | Φ170 × 55 mm |
| Load Wheel Size | Φ80 × 70 mm |
| Minimum Fork Height | 85 mm |
| Maximum Fork Height | 200 mm |
| Inner Width Between Forks | 230 / 365 mm |
| Outer Width Between Forks | 550 / 685 mm |
| Single Fork Width | 160 mm |
| Fork Length | 1,160 mm |
| Fork Thickness | 40 mm |
| Overall Length | 1,720 mm |
| Overall Width | 685 mm |
| Overall Height with Handle | 1,260 mm |
| Overall Height without Handle | 560 mm |
| Minimum Turning Radius | 1,550 mm |
| Gradeability — Laden/Unladen | 7% / 16% |
| Max. Travel Speed (Laden/Unladen) | 4 / 4.5 km/h |
| Battery | 48V / 20A |
| Drive Motor Power | 1,200 W |
| Lifting Motor Power | / |
| Overall Weight | 165 kg |
| Lifting Speed (Laden/Unladen) | 2.2 / 3.3 cm/s |
Powered Travel Without an Electric Lift Motor
The 1.2 kW drive motor moves the truck, while fork lifting remains manual. This division keeps the electrical system focused on travel and should be considered against the number of lift cycles required during a shift.

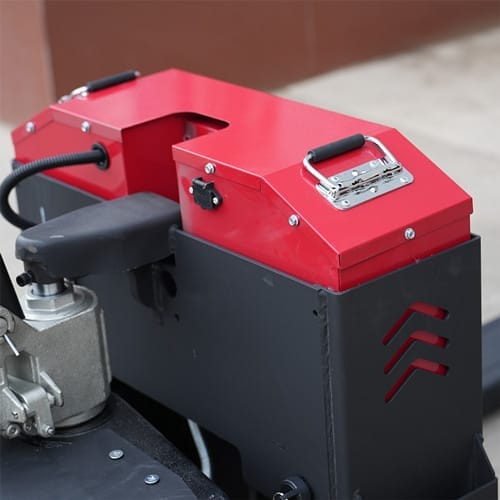

The removable 48V battery can be charged on or away from the truck, allowing charging arrangements to be planned around the warehouse rather than a fixed parking position.
Choose BX30 or BY30 by the Travel Surface
The BX30 uses a compact polyurethane drive wheel and weighs 165 kg. For outdoor transitions or rougher surfaces, the CSHP-BY30 uses a larger 300 × 100 mm off-road wheel and a heavier 195 kg chassis while retaining manual lifting.
Request a Quote for the CSHP-BX30
Send the pallet type, load weight, travel distance, floor condition, fork width, charging arrangement, and destination country.
