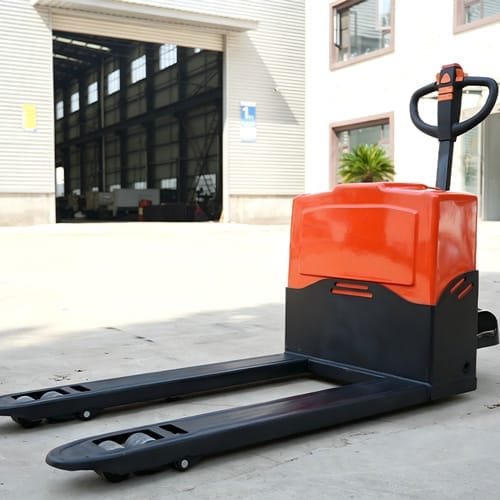

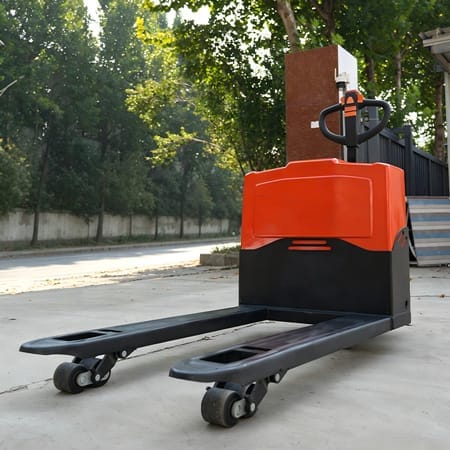

The CSTAR CSHP-N30 3 ton full-electric walkie pallet truck combines powered travel and powered lifting with a 1.5 kW drive motor and 1.2 kW lifting motor. Lead-acid and lithium battery configurations are listed as options.
Its 685 mm overall width, two available fork-outside widths, and walk-behind operating format are intended for warehouse pallet movement without a riding platform.
CSHP-N30 Specifications
| Parameter | Specification |
|---|---|
| Model | CSHP-N30 |
| Operation Type | Full-electric walkie |
| Rated Load Capacity | 3,000 kg |
| Load Center Distance | 500 mm |
| Wheel Type | PU |
| Drive Wheel Size | Φ170 × 55 mm |
| Load Wheel Size | Φ80 × 70 mm |
| Minimum Fork Height | 85 mm |
| Maximum Fork Height | 200 mm |
| Inner Width Between Forks | 230 / 365 mm |
| Outer Width Between Forks | 550 / 685 mm |
| Single Fork Width | 160 mm |
| Fork Length | 1,150 mm |
| Fork Thickness | 40 mm |
| Overall Length | 1,700 mm |
| Overall Width | 685 mm |
| Overall Height with Handle | 1,240 mm |
| Overall Height without Handle | 680 mm |
| Minimum Turning Radius | 1,550 mm |
| Maximum Travel Speed — Laden/Unladen | 4 / 4.5 km/h |
| Lifting Speed — Laden/Unladen | 2.2 / 3.3 cm/s |
| Gradeability — Laden/Unladen | 7% / 16% |
| Battery | 48V; lead-acid or lithium optional |
| Drive Motor Power | 1,500 W |
| Lifting Motor Power | 1,200 W |
| Overall Weight | 170 kg |
Choose the Battery Around the Shift
Battery chemistry affects charging routine, available working time, maintenance, replacement planning, and operating environment. State the required hours per shift, charging window, ambient temperature, and preferred battery type so the capacity can be specified rather than left open.
The quotation should list voltage, capacity, chemistry, charger input, and charging time as one matched package.

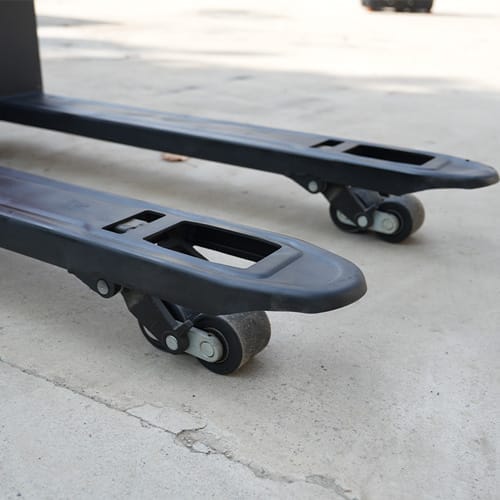

Two Fork-Width Layouts for Different Pallets
The truck offers 550 mm or 685 mm outside fork width with corresponding inner spacing of 230 mm or 365 mm. Confirm the pallet opening and bottom-board layout before selecting the fork position.
Request a Quote for the CSHP-N30
Send the load weight, pallet dimensions, travel distance, working hours per shift, charging window, preferred battery chemistry, and destination country.
