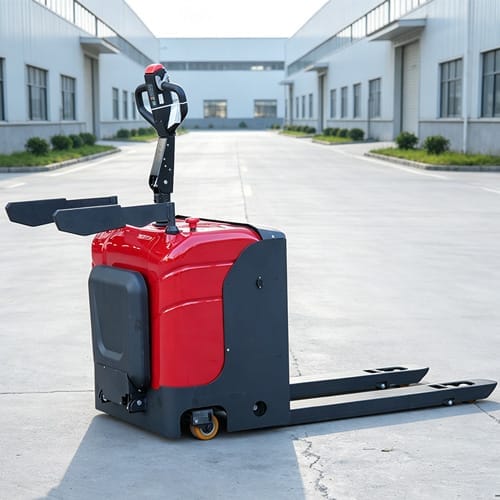

The CSTAR CSHP-Z30 3 ton stand-on electric pallet truck is designed for powered pallet travel with the operator riding on the truck. Guardrails, steering speed reduction, and reverse braking are listed as part of the operating configuration.
A 2 kW drive motor and 3 kW hydraulic lifting motor support the 3,000 kg version, while 1,200 mm forks and a 685 mm outside fork width define the supplied pallet interface.
CSHP-Z30 Specifications
| Parameter | Specification |
|---|---|
| Model | CSHP-Z30 |
| Load Capacity | 3,000 kg |
| Operation Type | Full Electric Stand-on |
| Vehicle Weight | 420 kg |
| Minimum Fork Height | 85 mm |
| Fork Lifting Height | 200 mm |
| Fork Dimensions | 1,200 × 160 × 50 mm |
| Drive Motor Power | 48V / 2,000 W |
| Hydraulic Lifting Motor Power | 48V / 3,000 W |
| Outer Width Between Forks | 685 mm |
| Gradeability (Laden/Unladen) | 10%/15% |
Stand-On Operation for Repeated Internal Routes
A riding platform becomes relevant when the same operator repeatedly travels between storage, production, and loading points. Route length, intersection visibility, pedestrian traffic, stopping frequency, and protected operating space should be assessed before choosing stand-on operation over a walkie model.
The listed 420 kg vehicle weight also needs to be included when checking floor and lift capacity.
Use the 3 Ton Version Only Where the Load Requires It
The Z30 is the higher-capacity version with 2/3 kW drive and lifting motors. For sites limited to 2,000 kg, the Z20 uses lower-output motors on the same listed fork layout; the exact battery and chassis dimensions should be confirmed for either quotation.
Request a Quote for the CSHP-Z30
Send the load weight, pallet dimensions, route length, aisle and intersection layout, gradients, required safety equipment, and destination country.
