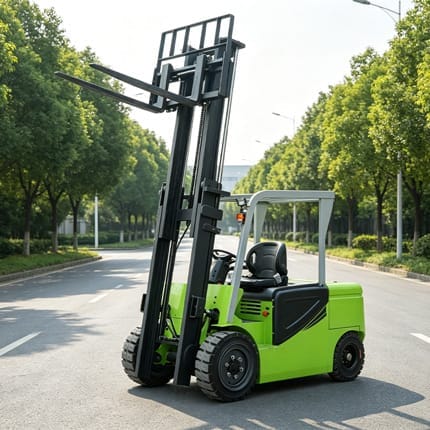

The CSHZ-30 3 ton electric forklift is the entry model on the larger CSHZ platform. It is designed for warehouse, manufacturing, and logistics operations handling loads of up to 3,000 kg at a 600 mm load center.
The CSHZ-30 uses a 72V 140Ah Tianneng battery, a 10 kW permanent-magnet synchronous traction motor, and a 7.5 kW lifting motor. Its chassis measures 2,770 mm without forks, and the maximum lifting height is 3,000 mm.
Moving from the CSHZ-25 to the CSHZ-30 Platform
The CSHZ-30 adds 500 kg of rated capacity over the CSHZ-25 and increases both traction and lifting motor output by 2.5 kW. Battery capacity rises from 70Ah to 140Ah, while curb weight increases from 3.5 t to 3.8 t.
That capacity increase comes with a larger footprint. Compared with the CSHZ-25, the CSHZ-30 is 450 mm longer without forks, 40 mm wider, and has a minimum turning radius 320 mm larger. These differences should be checked against aisle layout, door clearances, floor capacity, and transport requirements.
Choose the CSHZ-30 when loads exceed the practical range of the 2.5-ton model and the site can accommodate the larger chassis. If normal loads regularly approach 3,000 kg, compare the CSHZ-35 to determine whether additional capacity margin is required.
CSHZ-30 Specifications
| Technical Parameter | Specification |
|---|---|
| Model | CSHZ-30 |
| Rated Load Capacity | 3,000 kg |
| Load Center Distance | 600 mm |
| Overall Length (Without Forks) | 2,770 mm |
| Overall Length (With Forks) | 3,999 mm |
| Overall Width | 1,200 mm |
| Overall Height | 2,145 mm |
| Wheelbase | 1,835 mm |
| Minimum Ground Clearance | 145 mm |
| Minimum Turning Radius | 3,000 mm |

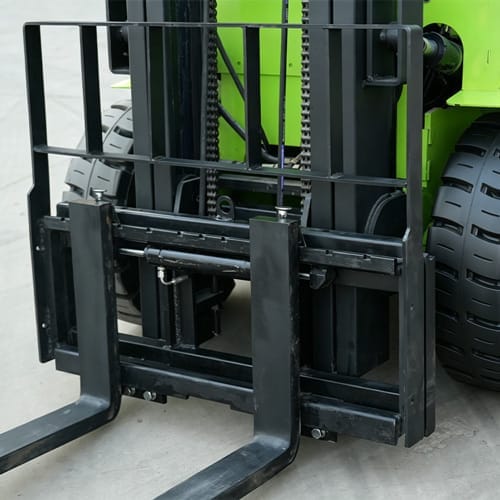

| Maximum Lifting Height | 3,000 mm |
| Mast Tilt Angle | 6° / 15° |
| Gradeability | 15% |
| Traction Motor | 10 kW permanent-magnet synchronous motor |
| Lifting Motor | 7.5 kW permanent-magnet synchronous motor |
| Battery | Tianneng 72V 140Ah |
| Curb Weight | 3.8 t |
| Front Axle | 310 cast-steel axle |
| Rear Axle | Double-layer steering axle |

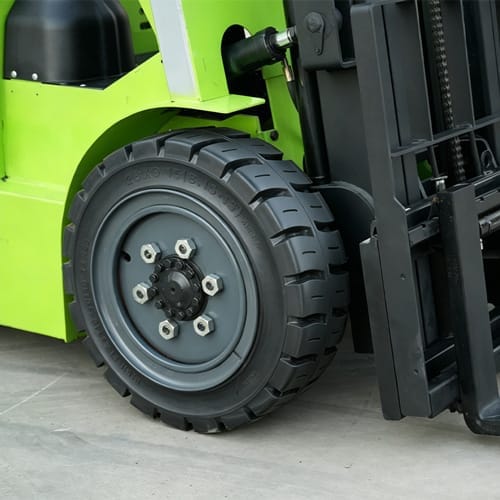

| Front Tire | 28-9-15 (Grade A) |
| Rear Tire | 650-10 (Grade A) |
Request a Quote for the CSHZ-30
Send us your normal and maximum load weights, load center, pallet dimensions, lifting height, aisle width, and site conditions. We will help determine whether the CSHZ-25, CSHZ-30, or CSHZ-35 best matches the application.
