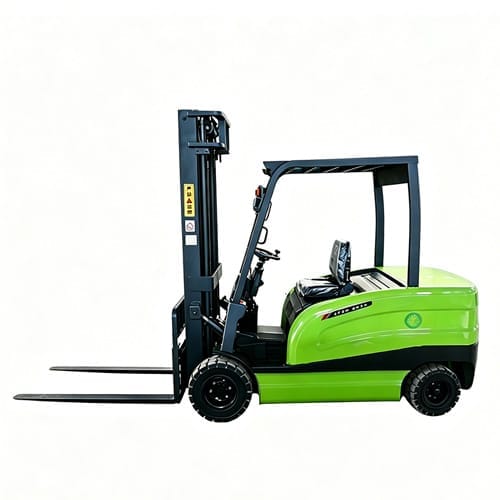

The CSAF-35 3.5 ton electric forklift combines a 3500kg rated lifting capacity with a 72V electrical system. It uses a 10000W AC travel motor and an 8000W AC hydraulic lifting motor.
Standard lifting height is 3m, chassis length is 2800mm excluding the forks and total vehicle weight is 4600kg.
The Motor and Tire Specifications Move Up With the 3.5 Ton Platform
Compared with the CSAF-30, rated capacity rises by 500kg while travel motor output increases from 7.5kW to 10kW and hydraulic lifting motor output from 5kW to 8kW.

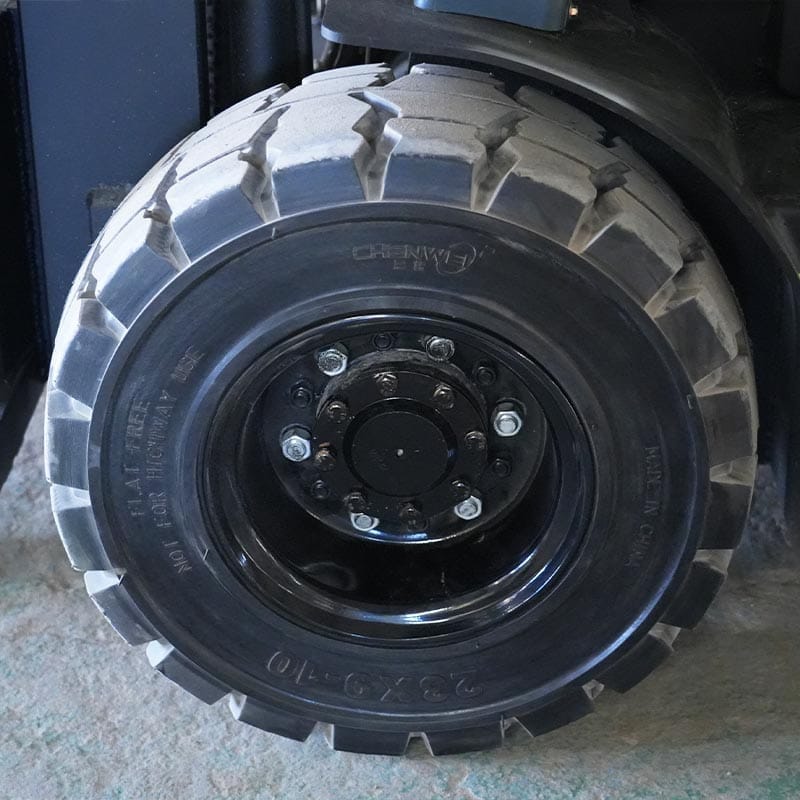

The wheel specification also changes from the smaller 650-10 front tire used on the CSAF-30 to 28×9-15 at the front and 15×6-10 at the rear. These are concrete configuration changes buyers can compare when deciding whether the 3 ton platform is sufficient or the 3.5 ton chassis is required.
CSAF-35 Specifications
| Category | Parameter | Specification |
|---|---|---|
| Technical Parameters | Rated Lifting Weight | 3500kg |
| Length (excluding forks) | 2800mm | |
| Width | 1200mm | |
| Height | 2150mm | |
| Vehicle Weight | 4600kg | |
| Lifting Height | 3m | |
| Body Material | New Stamped Shell | |
| Electrical System | Travel Motor | 10000W AC Travel Motor |
| Voltage | 72V | |
| Controller | Anti-slope High-power Controller | |
| Battery | 10 × 70Ah Maintenance-free Lead-acid Batteries | |
| Lights & Signals | Headlight, Left/Right Turn Signal, Brake Light, Driving Light, Instrument, Electric Horn, etc. | |
| Chassis System | Drive Axle | Cast Steel 380 Axle |
| Tires | Front: 28×9-15, Rear: 15×6-10, Premium Solid Tires | |
| Steering Axle | Heavy-duty Forklift-specific Rear Axle | |
| Braking System | Hand Brake, Hydraulic Brake | |
| Other Configurations | Lifting Cylinder | Enhanced Sealed Dual Cylinders |
| Fork Length | 1220mm Ultra-thick Forged Forks | |
| Hydraulic Lifting Motor | 8000W AC Hydraulic Motor | |
| Mast Material | Widened Special Steel Mast | |
| Steering Mode | Hydraulic Power Steering | |
| Turning Radius | 90° In-place Turning | |
| Charging Time | 4-6 hours | |
| Continuous Working Time | 6-8 hours | |
| Gradeability | 15° |
Note: Body dimensions, lifting height and other configurations can be customized according to customer requirements.
This table is for reference only, subject to the actual configuration.
Send the normal load, lifting height, working surface and destination so the final configuration can be confirmed.
