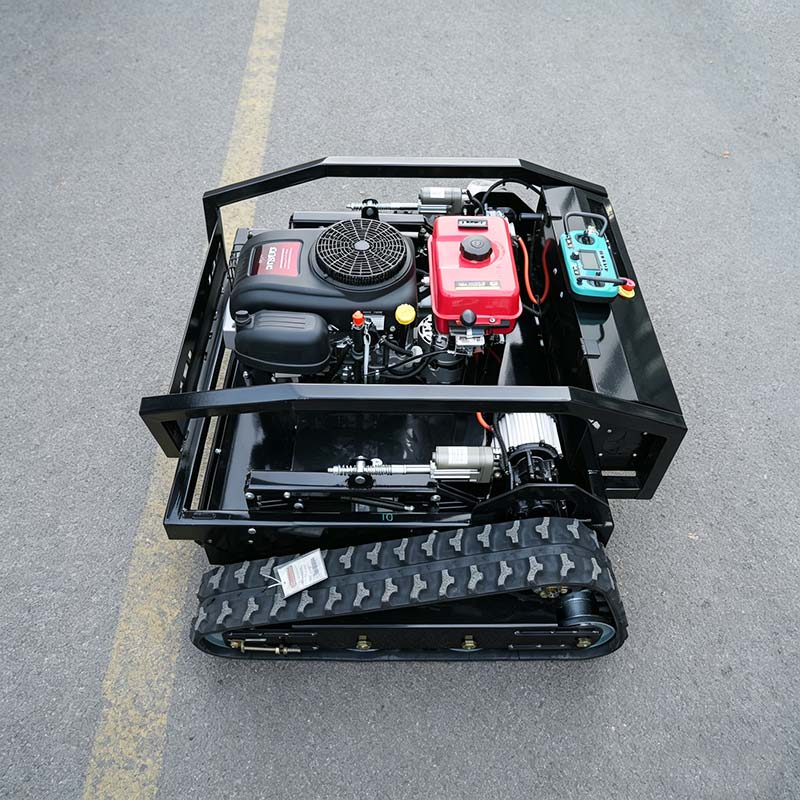

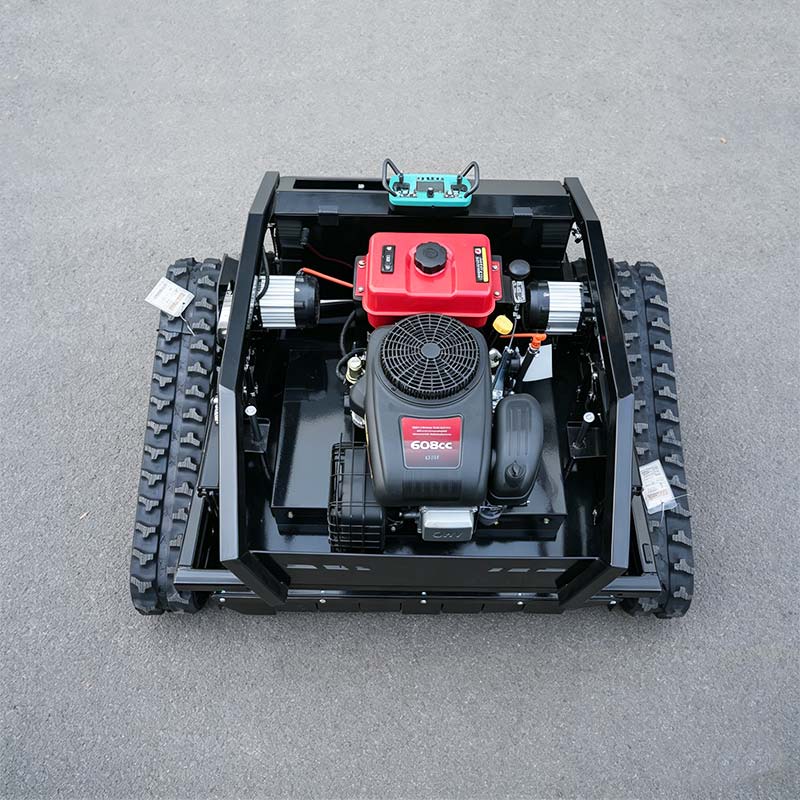

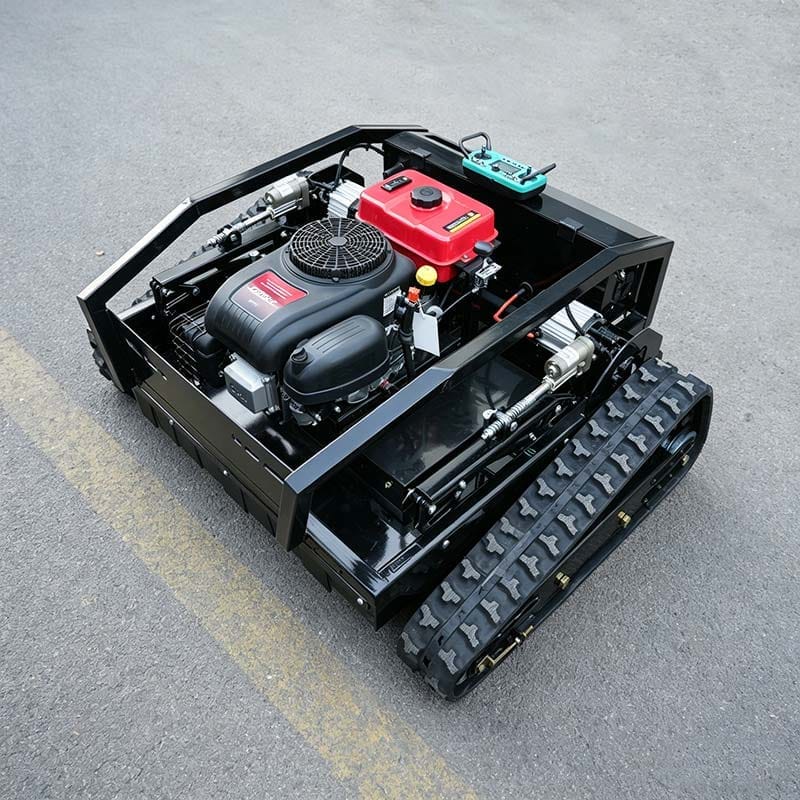

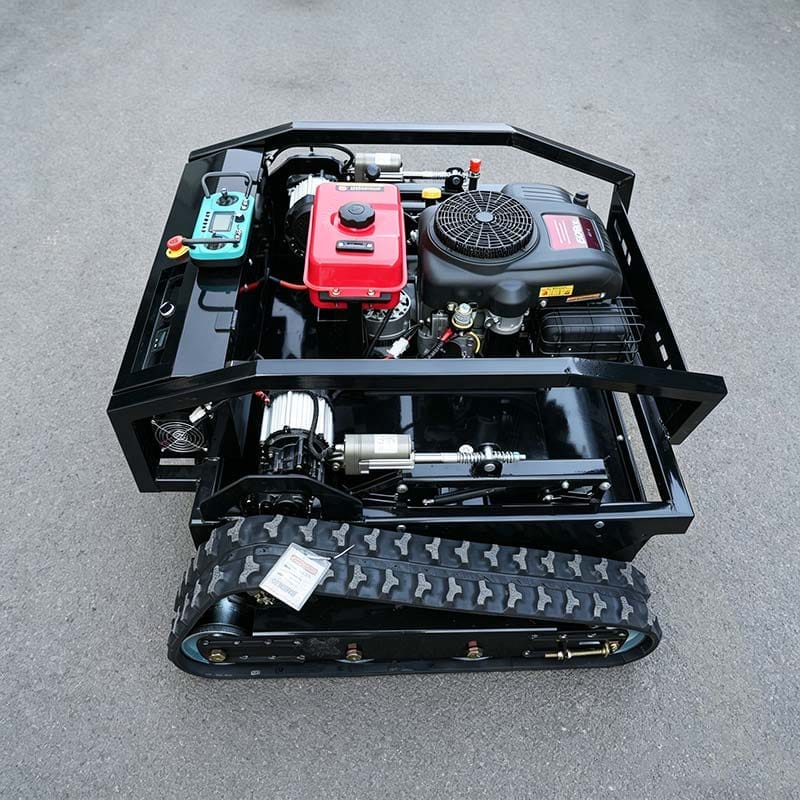

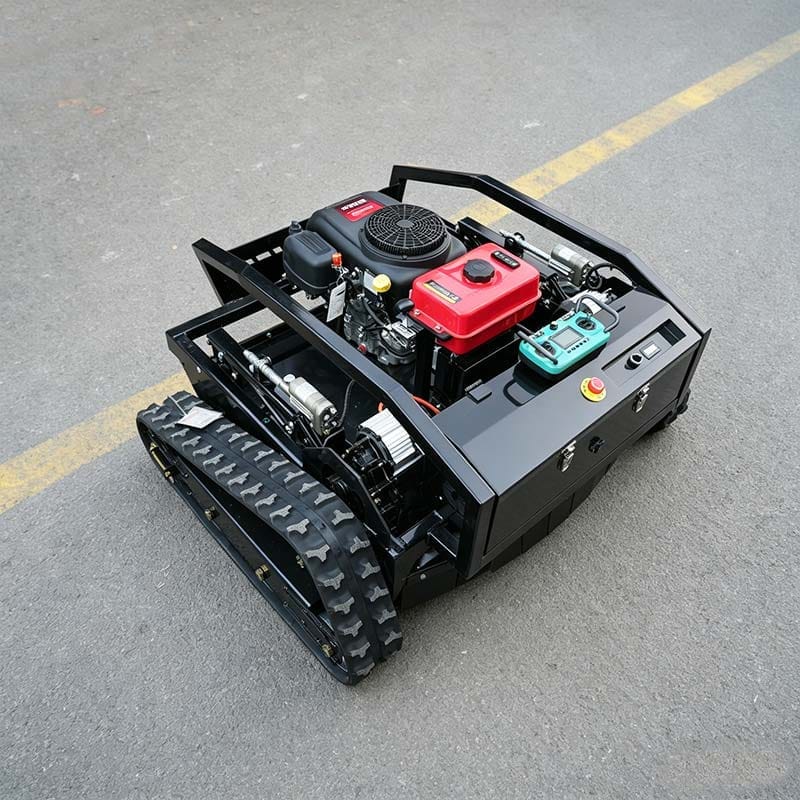

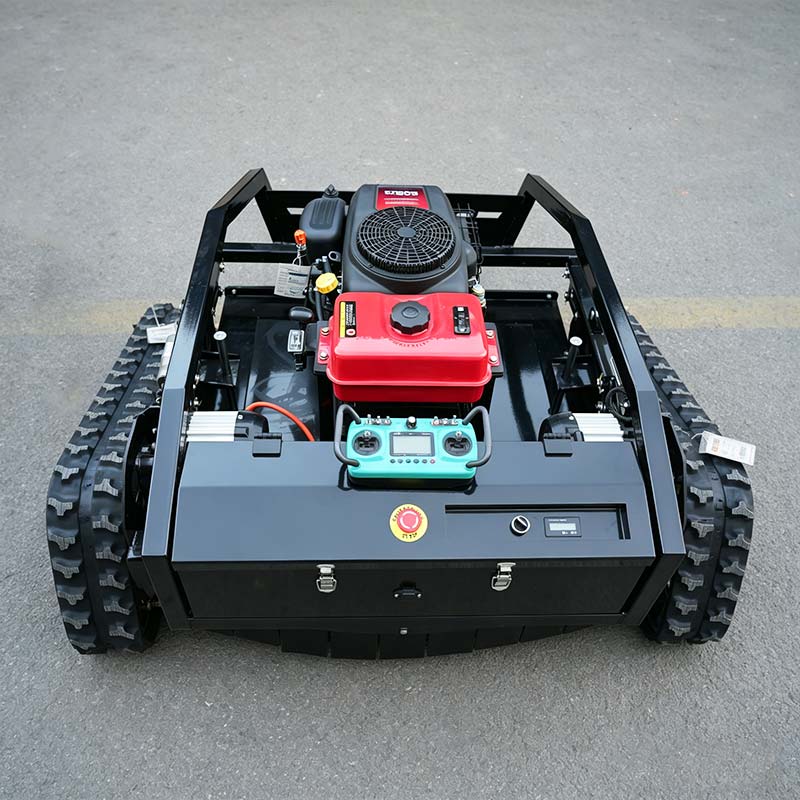

The CSTAR Machinery CSJ-HS1000 crawler lawn mower combines a 1,000 mm cutting width with a listed mowing efficiency of 4,000 m²/h. Its crawler platform, 23 HP power unit and remote-control functions are intended for larger mowing areas where coverage per pass and separation between the operator and machine are important.
The cutting height can be set from 20 to 100 mm, while the cutter head can be lifted by remote control. Travel speed is listed at 5 km/h, and the machine measures 1,430 × 1,250 × 650 mm with a machine weight of 300 kg.
Prioritize Coverage Rate and Transport Access
A 1,000 mm cutting width reduces the number of passes required across open sites, but the cutting width is not the machine’s access width. Gates, paths, loading ramps and trailer space must accommodate the full 1,250 mm machine width. For shipping and unloading planning, use the packed dimensions of 1,480 × 1,300 × 820 mm and the 360 kg packing weight.
The 20–100 mm cutting range is a more important selection point than engine output when the finished grass height is tightly specified. Sites requiring a setting above 100 mm should use that limit when comparing mower configurations.

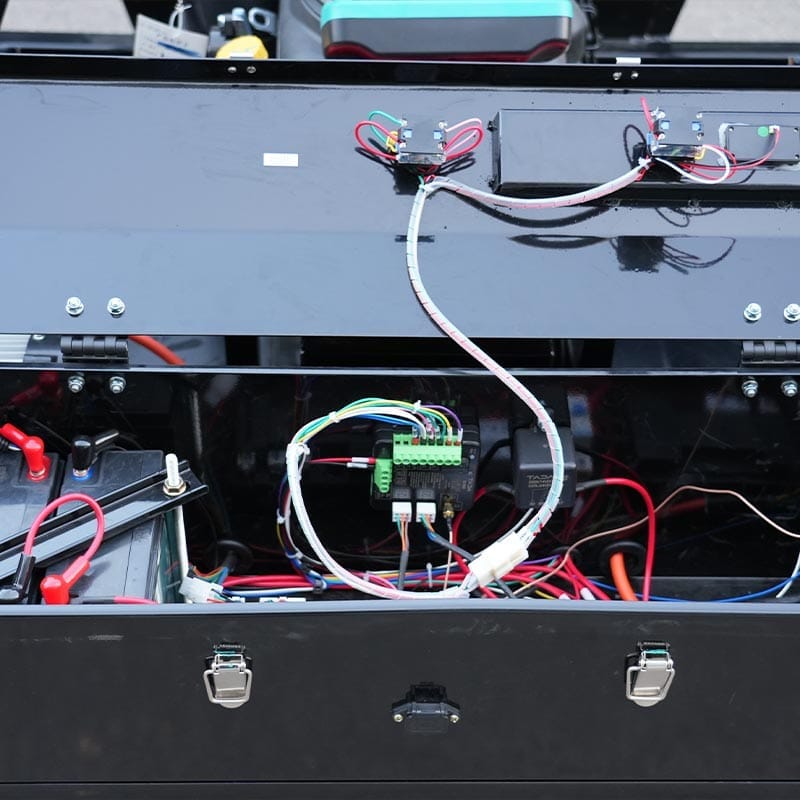

The 24V 40Ah electrical system supports the wireless integrated controls, including remote start, engine stop and cutter-head lifting. The self-generating system is listed for sustained operation. The stated 45° climbing figure should be treated as a machine specification, not as a universal safe working slope; actual suitability depends on surface grip, cross-slope, vegetation, obstacles and operating conditions.
CSJ-HS1000 Specifications
| Parameter | Specification |
|---|---|
| Model | CSJ-HS1000 |
| Overall Dimensions | 1,430 × 1,250 × 650 mm |
| Packaging Dimensions | 1,480 × 1,300 × 820 mm |
| Machine Weight | 300 kg |
| Packing Weight | 360 kg |
| Cutting Width | 1,000 mm |
| Cutting Height | 20–100 mm |
| Travel Speed | 5 km/h |
| Electrical System | 24V, 40Ah |
| Listed Climbing Angle | 45° |
| Cutter-Head Adjustment | Remote-control lifting |
| Power | 23 HP |
| Fuel Tank Capacity | 7.1 L |
| Engine Oil Capacity | 1.2 L |
| Listed Mowing Efficiency | 4,000 m²/h |
| Remote-Control Functions | Remote start and engine stop |
| Control System | Wireless integrated control system |
| Self-Generating System | Yes |
CSJ-HS1000 FAQ
What cutting range does the CSJ-HS1000 provide?
It has a listed cutting width of 1,000 mm and an adjustable cutting-height range of 20–100 mm.
Which functions are remotely controlled?
The specification lists remote start, remote engine stop and remote-control cutter-head lifting through a wireless integrated control system.
What dimensions should be checked for transport?
Use the 1,430 × 1,250 × 650 mm machine dimensions for site access and the 1,480 × 1,300 × 820 mm packaged dimensions with a 360 kg packing weight for freight and unloading plans.
Request a Quote for the CSJ-HS1000
Share the mowing area, vegetation type, required cutting height, maximum slope, access width, transport method and expected daily operating time. CSTAR Machinery can confirm the appropriate crawler mower configuration for the site.
