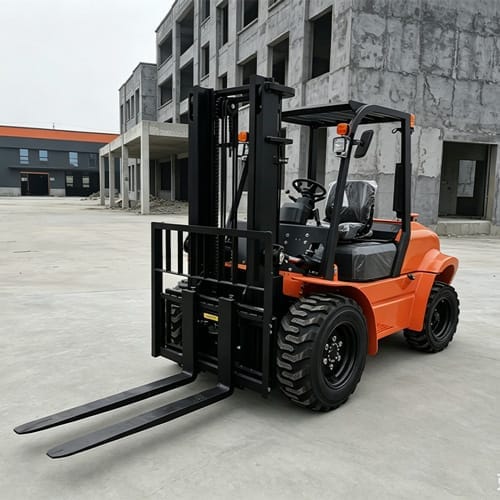

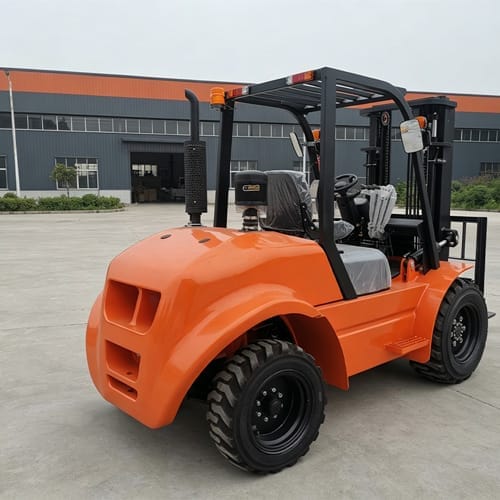

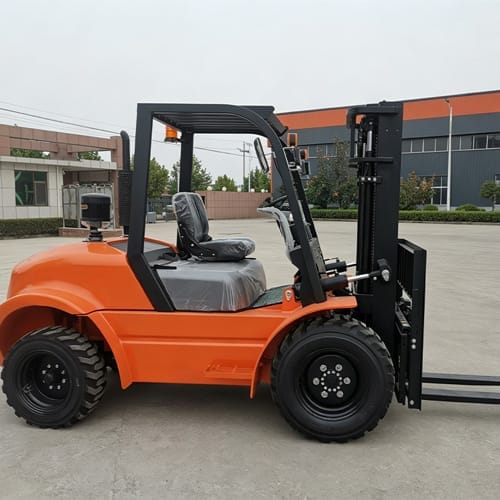

The CSTAR CSQ-30T 3 Ton 2WD Rough Terrain Diesel Forklift is rated for 3,000 kg at a 500 mm load center with a standard lift height of 3,000 mm. Its rough-terrain chassis, tire configuration and increased ground clearance distinguish it from a conventional warehouse-oriented diesel forklift.
The CSQ-30T uses a Xinchai A495BPG diesel engine rated at 36.8 kW at 2,500 rpm, with 2.85 L displacement and 185 Nm maximum torque at 1,800–2,000 rpm. Ground clearance is 220 mm at the mast and 310 mm at the midpoint.
CSQ-30T Technical Specifications
| Rated Capacity | 3,000 kg @ 500 mm |
| Lift Height | 3,000 mm |
| Dimensions without Forks | 2,980 × 1,550 × 2,185 mm |
| Wheelbase | 1,850 mm |
| Fork Overhang | 545 mm |
| Front / Rear Tread | 1,250 / 1,205 mm |
| Mast Tilt | 8° / 12° |
| Full-Load Lift Speed | 440 mm/s |
| Lowering Speed | With Load <600 mm/s; No Load >300 mm/s |
| No-Load Travel Speed | 22 km/h |
| Gradeability | 16% |
| Service Weight | 4,800 kg |
| Front Tire | 12-16.5-12-TL (L2B) |
| Rear Tire | 27×10.5-15PR |
| Fork Class | IIIB |
| Fork Size | 45 × 122 × 1070 mm |
| Mast Extended Height | 4,350 mm |
| Overhead Guard Height | 2,210 mm |
| Turning Radius | 2,910 mm |
| Ground Clearance, Mast / Midpoint | 220 / 310 mm |
| Engine | Xinchai A495BPG |
| Rated Power | 36.8 kW @ 2500 rpm |
| Maximum Torque | 185 Nm @ 1800–2000 rpm |
| Displacement | 2.85 L |
| Transmission | Hydraulic, 1 Forward / 1 Reverse |
| Battery | 12 V / 80 Ah |
What Makes the CSQ-30T a Rough Terrain Forklift
The CSQ-30T combines a 3 ton rated capacity with a rough-terrain chassis, larger tire specification and 220 / 310 mm ground clearance. These characteristics are more relevant than capacity alone when the truck operates outside smooth warehouse floors.
The truck is 1,550 mm wide, has a 1,850 mm wheelbase and a 2,910 mm turning radius. These dimensions should be checked against site entrances, loading areas and turning space before ordering.
2WD Configuration and Site Conditions
The CSQ-30T is a 2WD rough terrain forklift. Its chassis and tire configuration are intended for more demanding outdoor material handling than a conventional warehouse forklift, while remaining different from a four-wheel-drive rough-terrain model.
For this reason, the operating surface should be described when requesting a quotation. Ground condition, access points, gradients and turning space can all affect whether the 2WD configuration is appropriate for the intended job.
Ground Clearance and Machine Dimensions
The CSQ-30T lists 220 mm ground clearance at the mast and 310 mm at the midpoint. The machine measures 2,980 × 1,550 × 2,185 mm without forks.
These figures help when checking entrances, surface transitions and restricted working areas. Ground clearance should be considered together with the 1,850 mm wheelbase, tire arrangement and 2,910 mm turning radius rather than as a stand-alone specification.
3 Ton Capacity at a 500 mm Load Center
The CSQ-30T is rated for 3,000 kg at a 500 mm load center. The actual load dimensions still matter because long or irregular loads can move the center of gravity farther from the fork face.
For non-standard loads or attachment applications, provide the load weight, dimensions, lifting position and required lift height so the proposed configuration can be reviewed against the intended application.
Xinchai A495BPG Diesel Engine
The CSQ-30T uses the Xinchai A495BPG diesel engine, rated at 36.8 kW at 2,500 rpm. Published engine data also lists 185 Nm maximum torque at 1,800–2,000 rpm and 2.85 L displacement.
The truck uses a hydraulic transmission with 1 forward and 1 reverse gear. When comparing rough-terrain forklifts, the engine and transmission should be considered together with machine weight, travel speed, gradeability and site conditions.
What to Confirm Before Ordering
Before requesting a CSQ-30T quotation, provide the maximum load weight, load dimensions, required lift height and a brief description of the working surface.
Also include the narrowest access point, available turning space, gradients where relevant and any attachment requirements. This information helps determine whether the 2WD rough-terrain configuration fits the actual site.
Common Ordering Questions
What is the difference between a 2WD rough terrain forklift and a standard diesel forklift?
The CSQ-30T uses a rough-terrain chassis, larger tire configuration and higher ground clearance for more demanding outdoor operating conditions. It remains a 2WD truck, so the working surface, gradients and access conditions should be reviewed before selection.
What information should I provide for a long or non-standard load?
The CSQ-30T is rated at a 500 mm load center. For long, irregular or attachment-handled loads, provide the load weight, dimensions, lifting position and required lift height so the configuration can be evaluated correctly.
What site information should I provide for a CSQ-30T quotation?
Provide the working surface conditions, narrowest access point, available turning space, gradients where relevant, maximum load weight, required lift height and any attachment requirements.
Send the maximum load weight, required lift height, working surface conditions, available operating space, attachment requirements and destination country.
