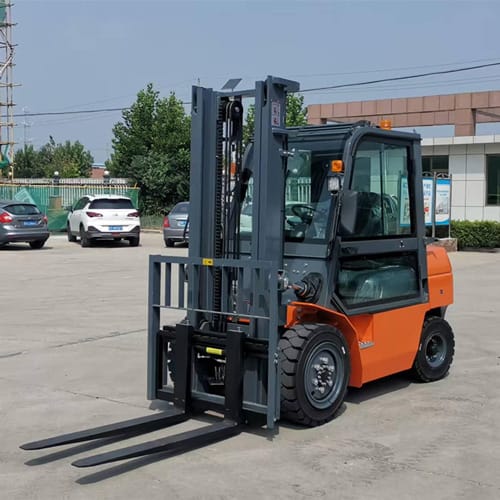

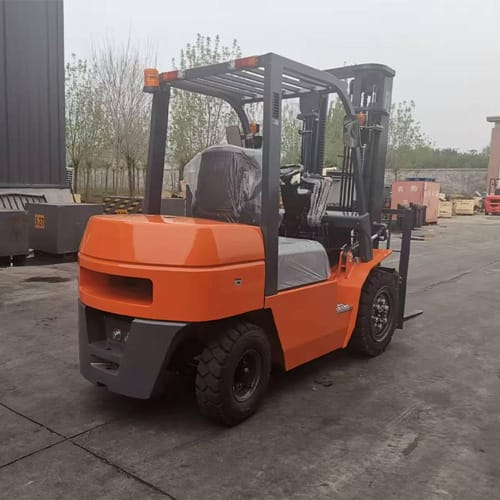

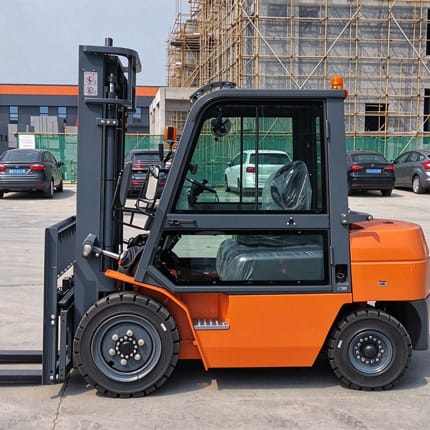

The CSTAR CSQD-35 3.5 Ton Diesel Forklift Truck is rated for 3,500 kg at a 500 mm load center with a listed maximum no-load lift height of 3,000 mm. The truck uses pneumatic tires, mechanical-shift transmission and a seated driving position.
Two engine options are listed for the CSQD-35: Quanchai QC490GP or Xinchai C490BPG, both specified as China II in the supplied configuration. For site planning, the truck is 1,210 mm wide with a 2,240 mm minimum outer turning radius.
CSQD-35 Technical Specifications
| Technical Parameter | Unit | CSQD-35 |
|---|---|---|
| Model | — | CSQD-35 |
| Power | — | Diesel |
| Rated lifting load | kg | 3500 |
| Load center distance | mm | 500 |
| Driving mode | — | Seat driving |
| Length (With fork) | mm | 3930 |
| Length (Without fork) | mm | 2690 |
| Width | mm | 1210 |
| Height when the mast not raised | mm | 2130 |
| Overhead guard height | mm | 2100 |
| Wheelbase | mm | 1700 |
| Front overhang | mm | 479 |
| Rear overhang | mm | 520 |
| Minimum ground clearance | mm | 110 |
| No-load maximum lifting height | mm | 3000 |
| Free lifting height | mm | 160 |
| Minimum turning radius (outer side) | mm | 2240 |
| Mast tilt angle (front/rear) | (°) | 6°/12° |
| No-load maximum lifting speed | mm/s | 505 |
| Full-load maximum lifting speed | mm/s | 485 |
| No-load maximum working speed | Km/h | 20 |
| Full-load maximum working speed | Km/h | 18 |
| Full-load maximum gradeability | % | 20 |
| Forklift weight under standard no-load condition | Kg | 4450 |
| Tire no. (F/R) | — | 2/2 |
| Tire type (F/R) | — | Pneumatic tire |
| Tire size (F) | — | 28×9-15 |
| Tire size (R) | — | 6.50-10 |
| Brake/service brake | — | Power brake-pedal |
| Parking brake | — | Mechanical-manual |
| Battery voltage/capacity | V/Ah | 12/80 |
| Engine model | — | Quanchai QC490GP or Xinchai C490BPG, China II |
| Engine fuel tank capacity | L | 60 |
| Transmission box | — | Mechanical shift |
| Number of gear lever | — | 2 |
3.5 Ton Capacity at a 500 mm Load Center
The CSQD-35 is rated for 3,500 kg at a 500 mm load center. That rating is tied to the position of the load’s center of gravity, so the same weight can place a different demand on the truck when the load becomes longer or sits farther forward on the forks.
For long, irregular or attachment-handled loads, provide the total load weight, dimensions, lifting position and required placement height. These details are more useful than the weight alone when confirming the required configuration.
Dimensions and Turning Space
The CSQD-35 measures 2,690 mm without forks and 3,930 mm with forks, with an overall width of 1,210 mm. Its wheelbase is 1,700 mm.
The listed minimum outer turning radius is 2,240 mm. This figure describes the truck’s turning geometry, but it is not the same as a right-angle stacking aisle requirement. For warehouse or rack planning, also provide the pallet dimensions, fork-entry direction and available clear aisle width.
Mast Height and Doorway Clearance
The listed mast provides a 3,000 mm maximum no-load lifting height, 160 mm free lift and mast tilt of 6° forward / 12° backward.
For doorway access, compare the fixed heights carefully. The mast height when not raised is 2,130 mm, while the overhead guard height is 2,100 mm. In the listed configuration, the mast is therefore the taller of these two components.
Engine and Mechanical-Shift Configuration
The supplied specification lists two engine options: Quanchai QC490GP or Xinchai C490BPG, with China II listed for the engine configuration. Fuel tank capacity is 60 L.
The CSQD-35 uses a mechanical-shift transmission, and the specification lists 2 gear levers. Confirm the engine option required for the destination market when requesting a quotation.
Pneumatic Tires and Operating Figures
The truck uses a 2/2 front-to-rear tire arrangement with pneumatic tires. Front tire size is 28×9-15, while rear tire size is 6.50-10. Minimum ground clearance is listed as 110 mm.
Maximum working speed is listed as 20 km/h without load and 18 km/h under full load. Maximum lifting speed is 505 mm/s without load and 485 mm/s under full load. Full-load maximum gradeability is listed as 20%.
Machine Weight and Transport Planning
The CSQD-35 weighs 4,450 kg under the stated standard no-load condition. This is the truck’s own listed weight and should not be confused with its 3,500 kg rated lifting capacity.
Before arranging transport, confirm the final engine and machine configuration as well as any attachments or separately packed components so the shipping information reflects the actual unit being supplied.
CSQD-35 Ordering Questions
What load information should I provide for a CSQD-35 quotation?
Provide the maximum load weight, load dimensions, fork-entry direction and required lifting or placement height. Include any attachment requirements if the truck will not use standard forks alone.
Which engine is available for the CSQD-35?
The supplied specification lists two engine options: Quanchai QC490GP or Xinchai C490BPG, with China II listed for the engine configuration. Confirm the required engine when requesting a quotation.
Which height should I use when checking doorway access?
Check both the 2,130 mm mast height when not raised and the 2,100 mm overhead guard height. The mast is the taller of these two listed dimensions.
Can the 2,240 mm turning radius be used as the required warehouse aisle width?
No. The 2,240 mm figure is the listed minimum outer turning radius. Right-angle stacking space also depends on the truck-and-load arrangement, including pallet dimensions and fork-entry direction.
Send your load weight and dimensions, required lift height, available working space, preferred engine option, attachment requirements, destination country and order quantity.
