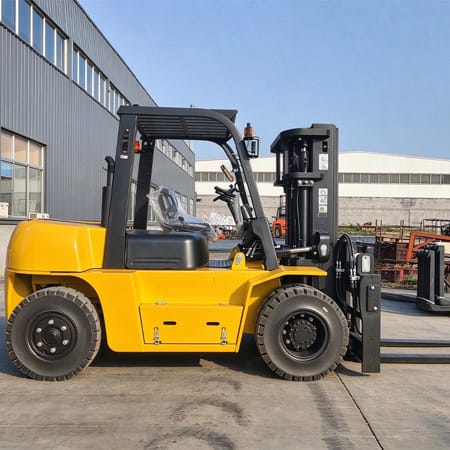

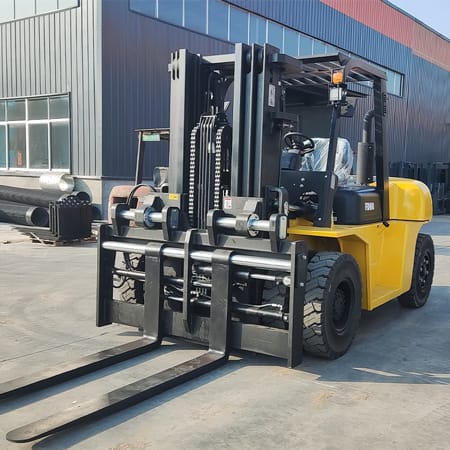

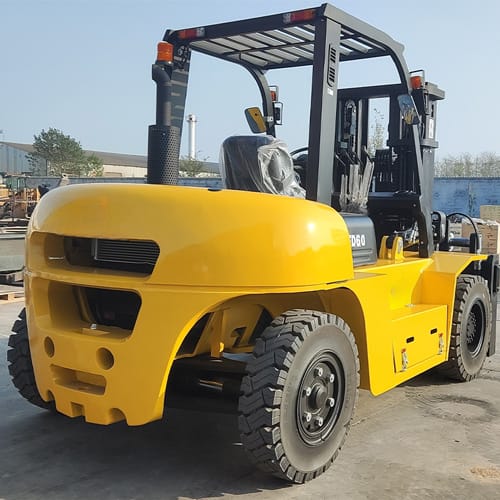

The CSTAR CSQD-60 6 Ton Diesel Forklift is rated for 6,000 kg at a 600 mm load center with a listed maximum no-load lift height of 3,000 mm. It uses a Xichai CA6110 Euro II engine and a 4/2 front-to-rear pneumatic tire arrangement.
For buyers comparing 6 ton forklifts, the CSQD-60 also provides the dimensions needed for site planning, including overall length, truck width, turning radius, right-angle aisle requirement, mast height and overhead-guard height.
CSQD-60 Technical Specifications
| Technical Parameter | Unit | CSQD-60 |
|---|---|---|
| Model | — | CSQD-60 |
| Power | — | Diesel |
| Rated lifting load | kg | 6000 |
| Load center distance | mm | 600 |
| Driving mode | — | Seat driving |
| Length with forks | mm | 4730 |
| Length without forks | mm | 3560 |
| Width | mm | 1970 |
| Mast lowered height | mm | 2450 |
| Overhead guard height | mm | 2500 |
| Wheelbase | mm | 2250 |
| Front overhang | mm | 600 |
| Rear overhang | mm | 670 |
| Minimum ground clearance | mm | 230 |
| No-load maximum lifting height | mm | 3000 |
| Free lifting height | mm | 210 |
| Minimum turning radius, outer side | mm | 4110 |
| Minimum right-angle aisle width | mm | 5310 |
| Mast tilt angle, forward / backward | ° | 6 / 12 |
| No-load maximum lifting speed | mm/s | 530 |
| Full-load maximum lifting speed | mm/s | 500 |
| No-load maximum travel speed | km/h | 29 |
| Full-load maximum travel speed | km/h | 24 |
| Full-load maximum gradeability | % | 15 |
| Forklift weight under standard no-load condition | kg | 8900 |
| Tire quantity, front / rear | — | 4 / 2 |
| Tire type, front / rear | — | Pneumatic tires |
| Front tire size | — | 8.25-15NHS |
| Rear tire size | — | 8.25-15NHS |
| Service brake | — | Power brake-pedal |
| Parking brake | — | Mechanical-manual |
| Battery voltage / capacity | V/Ah | 12 / 80 |
| Engine model | — | Xichai CA6110 Euro II Engine |
| Fuel tank capacity | L | 160 |
6 Ton Capacity at a 600 mm Load Center
The CSQD-60 is rated for 6,000 kg at a 600 mm load center. For an evenly distributed load positioned against the fork face, a load depth of 1,200 mm places the center approximately 600 mm forward.
A compact pallet and a long machinery component can have the same total weight while placing their centers of gravity in different positions. For long, irregular or attachment-handled loads, provide the load dimensions and lifting position rather than relying on the 6 ton rating alone.
Truck Dimensions, Turning Radius and Aisle Space
The CSQD-60 measures 3,560 mm without forks and 4,730 mm with forks, with an overall width of 1,970 mm. Use the with-forks dimension when checking straight approaches, parking positions and access routes, then add the actual load outline when reviewing loaded movements.
The listed 4,110 mm outer turning radius describes the truck’s turning path, while the 5,310 mm minimum right-angle aisle width is a separate specification for right-angle handling. For rack planning, also provide the pallet dimensions and fork-entry direction because the load affects the space needed for the maneuver.
For more detail on turning radius, Ast and real site clearance, see the
forklift aisle width guide
.
Mast Height, Free Lift and Doorway Clearance
The listed mast has a 3,000 mm maximum no-load lift height, 210 mm free lift and mast tilt of 6° forward / 12° backward.
For doorway access, check both fixed heights. The lowered mast is 2,450 mm, while the overhead guard is 2,500 mm. In this configuration, the overhead guard is the taller component.
Engine, Tires and Operating Configuration
The CSQD-60 uses a Xichai CA6110 Euro II engine with a 160 L fuel tank. The chassis uses four front tires and two rear tires, with 8.25-15NHS pneumatic tires at both ends and 230 mm minimum ground clearance.
The specification lists different travel and lifting speeds for loaded and unloaded conditions. When comparing the CSQD-60 with another 6 ton forklift, compare figures under the same load condition rather than mixing loaded and unloaded values.
CSQD-60 Weight for Transport Planning
The CSQD-60 weighs 8,900 kg under standard no-load conditions. This is the truck’s stated machine weight and is separate from its 6,000 kg lifting capacity.
For shipment planning, confirm the final machine configuration and whether forks or other components will travel separately. Where floor, dock plate or ramp loading needs to be checked, request the relevant axle and wheel loads for the intended operating condition.
CSQD-60 Ordering Questions
What load information is needed for a CSQD-60 quotation?
Provide the total load weight, including its pallet or support, together with the dimensions, fork-entry direction and required placement height. Add any attachment requirements so the quotation covers the complete handling configuration.
Can I use the 5,310 mm aisle figure for my rack layout?
Use it as the listed right-angle aisle specification, then confirm the pallet dimensions and measurement conditions with CSTAR. Send your clear aisle width and pallet orientation so the configuration can be reviewed against the layout.
Which height should I check for doorway access?
Check both the 2,450 mm lowered mast height and the 2,500 mm overhead guard height. The overhead guard is the taller of these two components in the listed configuration.
Send your load details, required lift height, working-area measurements, destination country and order quantity. CSTAR can then discuss the CSQD-60 configuration and prepare a quotation around your handling requirements.
