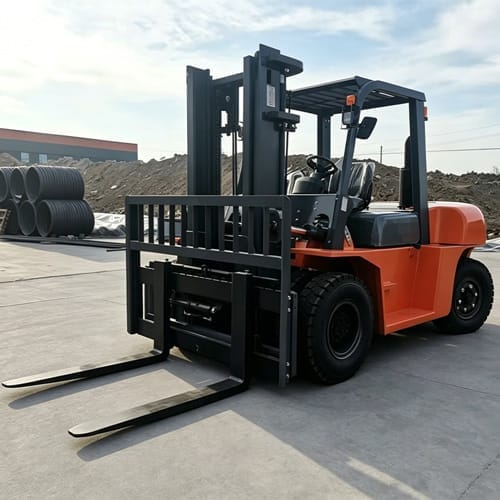

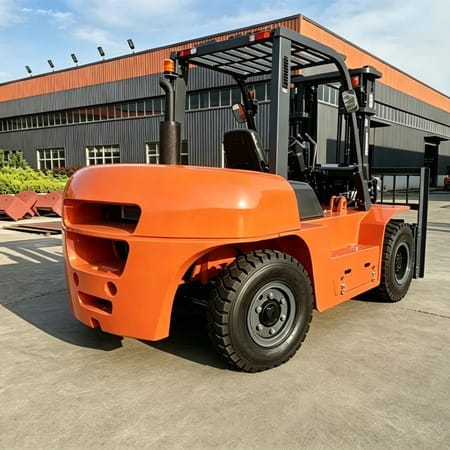

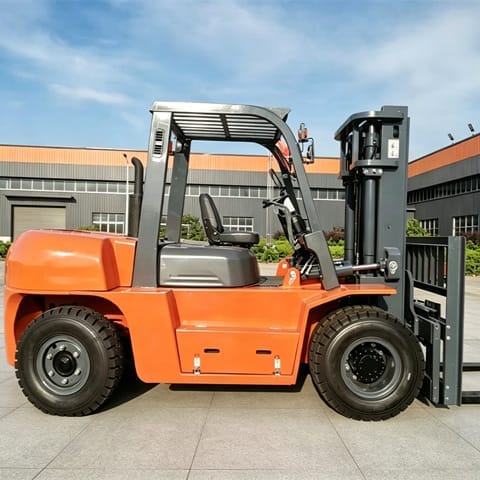

The CSTAR CSQD-70 7 Ton Diesel Forklift Truck is rated for 7,000 kg at a 600 mm load center with a standard lift height of 3,000 mm.
The CSQD-70 has a service weight of 9,600 kg, a width of 1,970 mm and a CA6110 diesel engine.
CSQD-70 Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Capacity | Rated Capacity | 7,000 kg |
| Capacity | Load Center | 600 mm |
| Lifting | Lift Height | 3,000 mm |
| Lifting | Free Lift | 210 mm |
| Dimensions | Length with / without Forks | 4,780 / 3,600 mm |
| Dimensions | Width | 1,970 mm |
| Dimensions | Mast Lowered Height | 2,450 mm |
| Dimensions | Overhead Guard Height | 2,500 mm |
| Chassis | Wheelbase | 2,250 mm |
| Chassis | Ground Clearance | 230 mm |
| Maneuverability | Turning Radius | 4,150 mm |
| Maneuverability | Aisle Width | 5,390 mm |
| Lifting | Mast Tilt | 6° / 12° |
| Performance | Lift Speed | 530 / 500 mm/s |
| Performance | Travel Speed | 29 / 24 km/h |
| Performance | Gradeability | 15% |
| Weight | Service Weight | 9,600 kg |
| Tires | Tires | 4 Front / 2 Rear Pneumatic, 8.25-15NHS |
| Engine | Engine | CA6110 |
| Fuel System | Fuel Tank | 160 L |
7 Ton or 8 Ton?
If 7,000 kg covers the regular load with enough margin, the CSQD-70 keeps the truck
smaller than the 8 ton class. Compared with the CSQD-80, it is
130 mm narrower, 1,200 kg lighter in service weight
and has a 390 mm smaller turning radius.
A Different Performance Profile from the 8 Ton Model
The CSQD-70 specification lists lift speed at
530 / 500 mm/s and travel speed at
29 / 24 km/h. The corresponding CSQD-80 figures are lower,
so buyers who do not need the extra 1,000 kg of rated capacity should compare
operating performance as well as headline capacity.
Common Ordering Questions
When does the CSQD-70 make more sense than the CSQD-80?
When regular loads remain comfortably within the 7,000 kg rating, the CSQD-70
offers a smaller chassis and lower service weight without moving unnecessarily
into the 8 ton capacity class.
How much maneuvering space does the CSQD-70 require?
The specification lists a 4,150 mm turning radius and a 5,390 mm aisle width.
Use these figures together with the actual load dimensions when checking the
working area.
Send the maximum regular load, load dimensions, required lift height,
available working space and destination country.
