The CSHZ-35 3.5 ton electric forklift is the middle-capacity model on the larger CSHZ platform. It is intended for industrial warehouses, manufacturing facilities, and logistics operations handling loads of up to 3,500 kg at a 600 mm load center.
The CSHZ-35 uses a Tianneng 72V 140Ah battery with 10 kW permanent-magnet synchronous traction and lifting motors. Its listed chassis dimensions, turning radius, and lifting height are shared with the CSHZ-30 and CSHZ-40.
Choosing Between the CSHZ-30, CSHZ-35, and CSHZ-40
Compared with the CSHZ-30, the CSHZ-35 adds 500 kg of rated capacity and increases lifting motor output from 7.5 kW to 10 kW. Traction motor output remains 10 kW, while curb weight increases by 400 kg from 3.8 t to 4.2 t.
Moving to the CSHZ-40 adds a further 500 kg of capacity and raises traction motor output from 10 kW to 13 kW. The CSHZ-35 and CSHZ-40 otherwise share the same listed external dimensions, 140Ah battery capacity, 10 kW lifting motor, axles, and tire sizes; the 4-ton model adds another 400 kg of curb weight.
The CSHZ-35 is the balanced choice when routine loads exceed 3,000 kg but remain below 3,500 kg. If loads frequently approach the rated capacity, confirm the load center, attachment, and lift-height requirements before deciding whether the CSHZ-40 is necessary.
CSHZ-35 Specifications
| Technical Parameter | Specification |
|---|---|
| Model | CSHZ-35 |
| Rated Load Capacity | 3,500 kg |
| Load Center Distance | 600 mm |
| Overall Length (Without Forks) | 2,770 mm |
| Overall Length (With Forks) | 3,999 mm |
| Overall Width | 1,200 mm |
| Overall Height | 2,145 mm |
| Wheelbase | 1,835 mm |
| Minimum Ground Clearance | 145 mm |
| Minimum Turning Radius | 3,000 mm |
| Maximum Lifting Height | 3,000 mm |
| Mast Tilt Angle | 6° / 15° |
| Gradeability | 15% |
| Traction Motor | 10 kW permanent-magnet synchronous motor |
| Lifting Motor | 10 kW permanent-magnet synchronous motor |
| Battery | Tianneng 72V 140Ah |
| Curb Weight | 4.2 t |
| Front Axle | 310 cast-steel axle |
| Rear Axle | Double-layer steering axle |

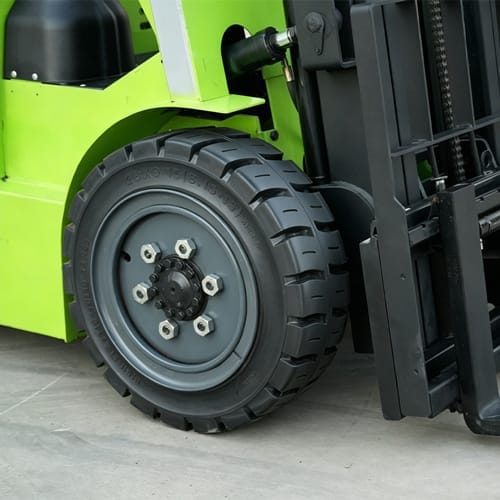

| Front Tire | 28-9-15 (Grade A) |
| Rear Tire | 650-10 (Grade A) |
Request a Quote for the CSHZ-35
Tell us your typical and maximum load weights, load center, pallet dimensions, lifting height, aisle width, and site conditions. We can help compare the CSHZ-30, CSHZ-35, and CSHZ-40.
