The CSAH-30 3 ton lithium electric forklift is rated for 3000kg and uses a 300Ah lithium battery with a 72V electrical system. Standard lifting height is 3 meters.
The listed configuration includes a Curtis controller, 7500W AC travel motor, 5000W hydraulic lift motor, 1220mm forks and solid tires.
When to Step Up From CSAH-25 to CSAH-30
The biggest practical reason to move to the CSAH-30 is capacity. It increases maximum lifting capacity from 2500kg to 3000kg, while vehicle weight rises from 3400kg to 3700kg and chassis length increases from 2450mm to 2700mm excluding the difference in how length is stated in the source specifications.
The CSAH-30 also moves from the CSAH-25’s 60V lead-acid configuration to a 72V, 300Ah lithium battery system and increases travel motor output from 5000W to 7500W.
For buyers who need the full 3 ton lifting capacity or prefer a lithium battery platform, the CSAH-30 is the stronger fit. If 2500kg is sufficient, the CSAH-25 remains the shorter and lighter machine in this pair.
What the Lithium Battery Changes
Compared with a lead-acid battery system, lithium batteries are generally better suited to operations that want more flexible charging and less routine battery maintenance. This can matter in higher-frequency warehouse use where charging opportunities occur during breaks or between operating periods. The final battery decision should still be based on the actual shift schedule, charger availability and purchase configuration rather than battery chemistry alone.
CSAH-30 Specifications
| Category | Parameter | Specification |
|---|---|---|
| Technical Parameters | Max Lifting Capacity | 3000kg |
| Length | 2700mm (without forks) | |
| Width | 1200mm | |
| Height | 2150mm | |
| Vehicle Weight | 3700kg | |
| Lifting Height | 3m | |
| Body Material | New Stamped Shell | |
| Electrical System | Travel Motor | 7500W AC Travel Motor |
| Voltage | 72V | |
| Controller | Curtis Controller | |
| Battery | 300Ah Lithium Battery | |
| Lights & Signals | Headlight, Turn Signals, Brake Lights, Position Lights, Instrument, Horn, etc. | |
| Drive Axle | Cast Steel 310 Axle | |

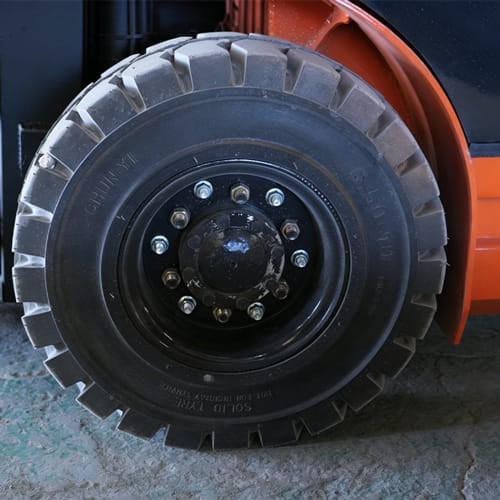

| Tires | Front: 650-10; Rear: 500-8, Grade A Solid Tires | |
| Steering Axle | Heavy-duty Forklift-specific Rear Axle | |
| Braking System | Hand Brake + Hydraulic Brake | |
| Other Configurations | Lift Cylinder | Reinforced Sealed Dual Cylinders |
| Fork Length | 1220mm, Extra Thick Forged Forks | |
| Hydraulic Lift Motor | 5000W Hydraulic Motor | |
| Mast Material | Widened Special Steel Mast | |
| Steering Mode | Hydraulic Power Steering | |
| Turning Radius | 90° In-place Turning | |
| Charging Time | 4-6 hours | |
| Continuous Working Time | 6-8 hours | |
| Gradeability | 15° |
