The CSAH-25 2.5 ton electric forklift has a 2500kg maximum lifting capacity, 3 meter lifting height and 2450mm chassis length excluding forks.
Its electrical system uses ten 70Ah maintenance-free lead-acid batteries at 60V. The listed charging time is 4-6 hours and continuous working time is 6-8 hours.
When Does the CSAH-25 Make More Sense Than the CSAH-30?
The decision is not only about battery chemistry. The CSAH-25 is rated at 2500kg, measures 2450mm long excluding forks and weighs 3400kg. The CSAH-30 moves up to 3000kg capacity, 2700mm length and 3700kg vehicle weight.
For an operation that does not require 3 ton capacity, the CSAH-25 keeps the machine shorter and lighter while retaining the same 3 meter lifting height and 1200mm overall width.
The CSAH-25 also uses a maintenance-free lead-acid battery system, while the CSAH-30 uses lithium. In general, lithium batteries are more convenient for frequent opportunity charging and require less routine battery attention, while lead-acid remains a familiar battery format for many forklift operators. Actual battery choice should still be based on the required shift pattern, charger setup and purchase configuration.
CSAH-25 Specifications
| Category | Parameter | Specification |
|---|---|---|
| Technical Parameters | Max. Lifting Capacity | 2500kg |
| Length | 2450mm (excluding forks) | |
| Width | 1200mm | |
| Height | 2150mm | |
| Total Vehicle Weight | 3400kg | |
| Lifting Height | 3 meters | |
| Body Material | New Stamped Shell | |
| Electrical System | Travel Motor | 5000W AC Travel Motor |
| Voltage | 60V | |
| Controller | Anti-slope High-power Controller | |
| Battery | 10×70Ah Maintenance-free Lead-acid Batteries | |
| Lighting & Signals | Headlight, Left/Right Turn Signals, Brake Lights, Position Lights, Instrument Horn, etc. | |
| Chassis System | Drive Axle | 256 Cast Steel Axle |
| Tires | Front: 650-10, Rear: 500-8, Grade C Solid Tires | |
| Steering Axle | Heavy-duty Forklift-specific Rear Axle | |
| Braking System | Hand Brake, Oil Brake | |

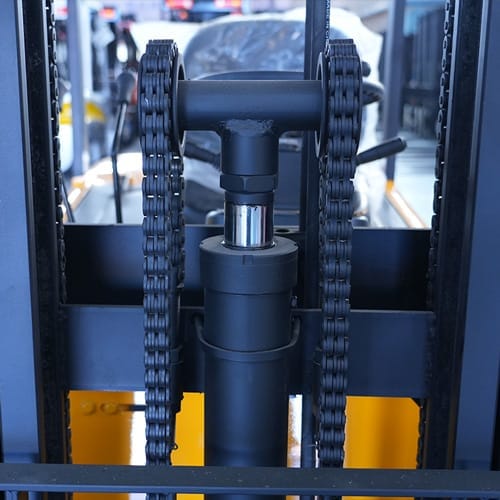

| Other Configurations | Lift Cylinder | Reinforced Sealed Double Cylinder |
| Fork Length | 1220mm Extra Thick Forged Forks | |
| Hydraulic Lifting Motor | 4000W AC Hydraulic Motor | |
| Mast Material | Special Steel Mast | |
| Steering Mode | Hydraulic Power Steering | |
| Turning Radius | 90° In-place Turning | |
| Charging Time | 4-6 hours | |
| Continuous Working Time | 6-8 hours | |
| Gradeability | 15° |
Send us your normal load weight, lifting height, daily working hours, destination and quantity.
