CSGL-T480

CSGL-T480

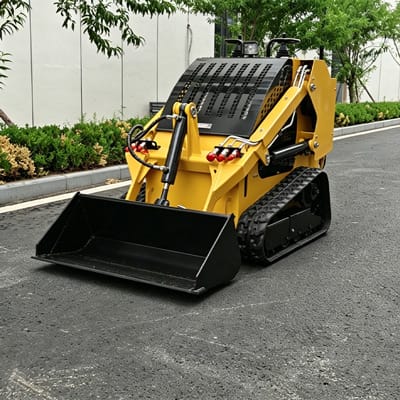

CSGL-T480 - Image 2

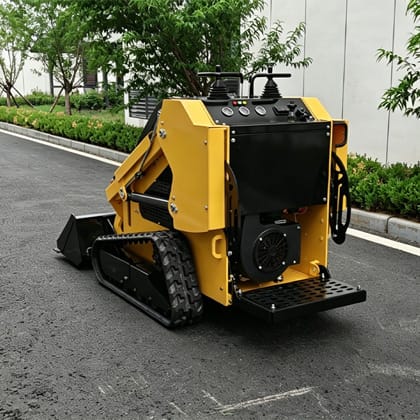

CSGL-T480 - Image 3

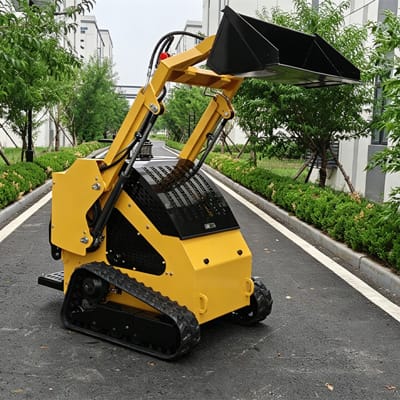

CSGL-T480 - Image 4

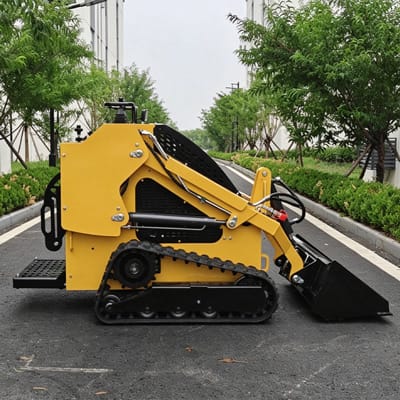

CSGL-T480 - Image 5

CSGL-T480

Rated loading weight  ：1321kg

Bucket capacity  ：0.1m³

Engine  ：3TNV80/D1105

Dimension  ：2169*1120*1300mm

Mini Skid Steer Loaders are compact, versatile, and easy to maneuver in limited spaces. Compatible with multiple attachments, they can perform digging, lifting, and landscaping tasks, offering efficiency and flexibility for construction and agriculture.

Get a quote

CSGL-T480

Rated loading weight  ：1321kg

Bucket capacity  ：0.1m³

Engine  ：3TNV80/D1105

Dimension  ：2169*1120*1300mm

Mini Skid Steer Loaders are compact, versatile, and easy to maneuver in limited spaces. Compatible with multiple attachments, they can perform digging, lifting, and landscaping tasks, offering efficiency and flexibility for construction and agriculture.

Contact Us
Get a quote

Product Categories

Get In Touch

官网询盘

CSGL-T480

ModelCSGL-T480
Basic performance parameters　
Operating weight1321kg
Bucket capacity0.1m³
Climbing ability25°
Maximum breakout force4.5KN
Rated load350kg
Maximum load450kg
Travel speed0-5km/h
Vehicle width1040mm
Rated pressure16Mpa
Bucket width1050mm
Max loading height1720mm
Max dumping height1401mm
Max operating height2110mm
Height to bucket pin1870mm
Max height bucket dump angle63°
Min height1300mm
Departure angle22°
Ground clearance157mm
Dumping distance295mm
Track contact length900mm
Dimensions　
Overall dimensions2169*1120*1300mm
Length including bucket2169mm
Length excluding bucket1850mm
Track model180*72*35
Engine　
BrandYanmar/Kubota
Model3TNV80/D1105
Rated power15.2(17.8)/17.1kw
Cylinder3
Intake methodNaturally aspirated
Emission standardEPA/ERUO5
Fuel tank capacity13L

Attachments & Parts

Brush Cutter
Brush Cutter
Log Grapple
Log Grapple
Snow Blower
Snow Blower
Mixing Bucket
Mixing Bucket
Land Leveler
Land Leveler
Straight Dig
Straight Dig
Land Reclamation Machine
Land Reclamation Machine
Soil Conditioner
Soil Conditioner
Rotary Tiller
Rotary Tiller
Road Roller
Road Roller
Single Ripper
Single Ripper
Wood Splitter
Wood Splitter
Road Sweeper
Road Sweeper

our Advantages

Customization Supported

Logo, Color, Engine, Accessories, etc. We can provide you with exclusive customized services and produce the products you want according to your requirements, including but not limited to Logo customization, color customization, engine customization and accessories customization.

Widened Pedals More Comfortable and Safer

The widened and thickened pedal increases the operator's standing stability, especially when the equipment encounters bumps, vibrations, etc. during driving or operation, which can reduce the risk of the operator slipping and ensuring the operator's safety.

Widened Pedals More Comfortable and Safer

The widened and thickened pedal increases the operator's standing stability, especially when the equipment encounters bumps, vibrations, etc. during driving or operation, which can reduce the risk of the operator slipping and ensuring the operator's safety.

One-Stop Service

Delivery to your door, convenient and fast. The establishment of multiple overseas warehouses (Europe and North America) allows you to enjoy door-to-door delivery service without leaving your home, which is convenient, fast and efficient.

After-sales Service Team：24/7 Online One-to-One Service

Our enthusiastic and professional after-sales team is available 24/7 to provide dedicated one-to-one support and resolve your concerns promptly.

After-sales Service Team：24/7 Online One-to-One Service

Our enthusiastic and professional after-sales team is available 24/7 to provide dedicated one-to-one support and resolve your concerns promptly.

Application Industries

Cstar Machinery is a professional manufacturer of Mini Skid Steer Loader. We have comprehensive certifications, a dedicated after-sales team, and warehouses all over the world,stocking our equipment. We are looking for partners around the world to develop and progress together.
Cstar Mini Skid Steer Loader are easy to operate, offer excellent quality, and are available at competitive prices, making them an excellent choice for personal use, team use, or distribution.
