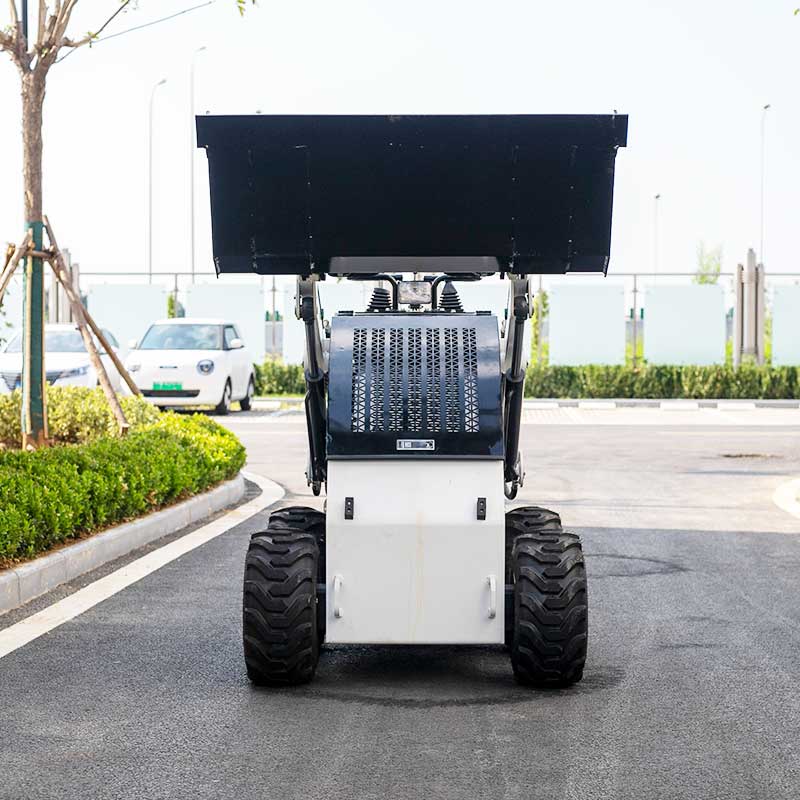

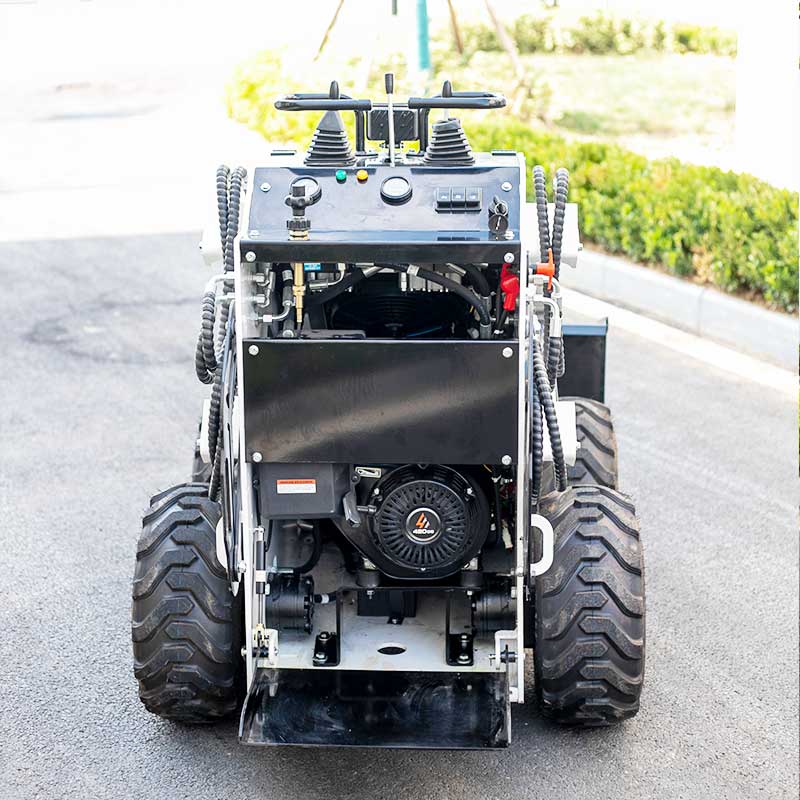

CSGL-S360

CSGL-S360
CSGL-S360 - 图片 2
CSGL-S360 - 图片 3
CSGL-S360 - 图片 4
CSGL-S360 - 图片 5
CSGL-S360 - 图片 6
CSGL-S360 - 图片 7
CSGL-S360 - 图片 8

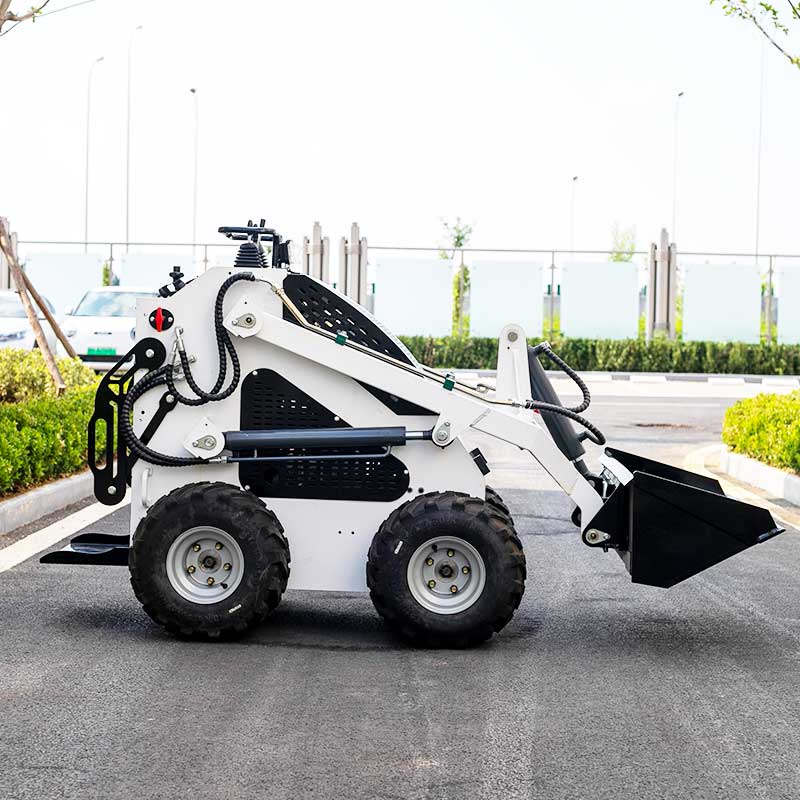

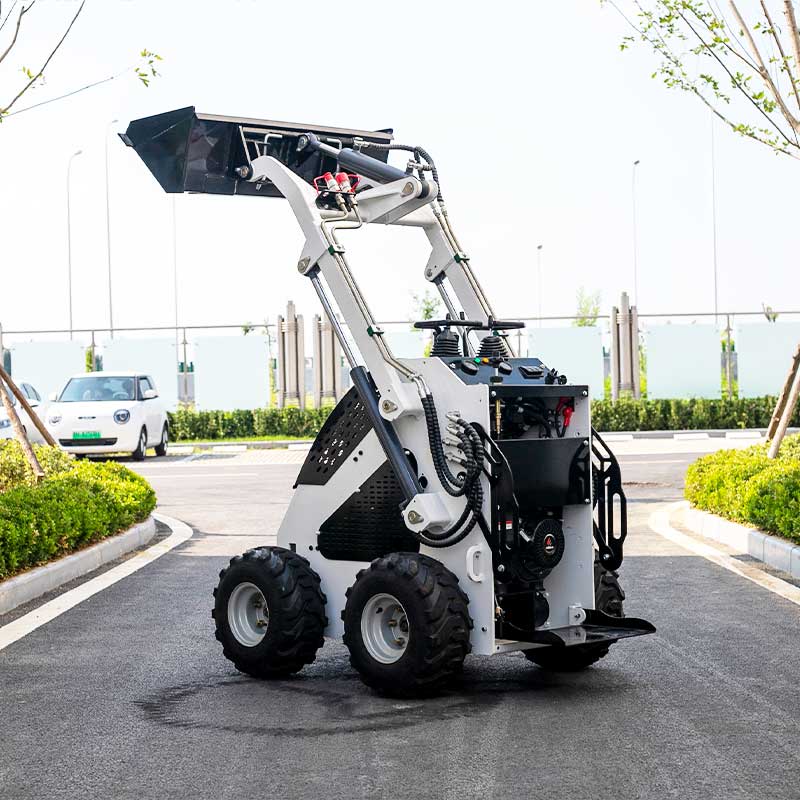

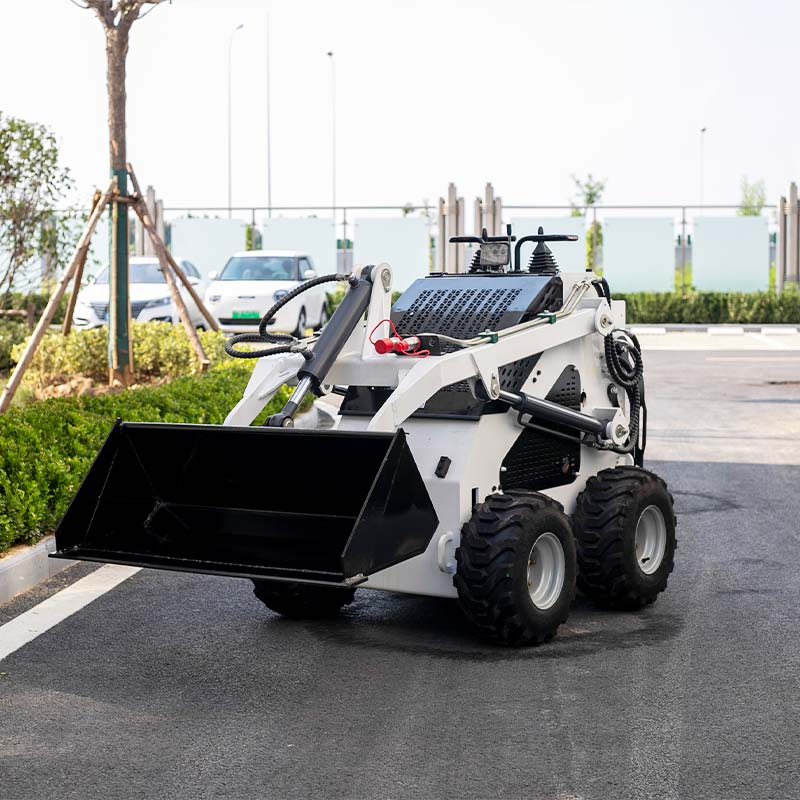

CSGL-S360

Rated loading weight ：880kg

Bucket capacity：0.1m³

Engine：LAB/192FH/R420D/XR13.5

Dimension：2130*1050*1300mm

Mini Skid Steer Loaders are compact, versatile, and easy to maneuver in limited spaces. Compatible with multiple attachments, they can perform digging, lifting, and landscaping tasks, offering efficiency and flexibility for construction and agriculture.

Get a quote

CSGL-S360

Rated loading weight ：880kg

Bucket capacity：0.1m³

Engine：LAB/192FH/R420D/XR13.5

Dimension：2130*1050*1300mm

Mini Skid Steer Loaders are compact, versatile, and easy to maneuver in limited spaces. Compatible with multiple attachments, they can perform digging, lifting, and landscaping tasks, offering efficiency and flexibility for construction and agriculture.

Contact Us
Get a quote

Product Categories

Get In Touch

官网询盘

CSGL-S360

ModelCSGL-S360
Basic performance parameters
Operating weight880kg
Bucket capacity0.1m³
Climbing ability25°
Maximum breakout force3.5KN
Rated load200kg
Maximum load300kg
Travel speed0-6km/h
Vehicle width1000mm
Rated pressure16Mpa
Bucket width1050mm
Max loading height1680mm
Max dumping height1367mm
Max operating height2400mm
Height to bucket pin1840mm
Max height bucket dump angle63°
Min height1300mm
Departure angle21°
Ground clearance130mm
Dumping distance258mm
Wheelbase710mm
Dimensions
Overall dimensions213010501300mm
Length including bucket2130mm
Length excluding bucket1726mm
Tire model18*8.5-8
Engine
BrandLithium electricity/KOOP/Rato/B&S
ModelLead-acid battery/192FH/R420D/XR13.5
Rated power6kw,72V,125ah/7.6(7)/7.9/9.92kw
Cylinder1
Intake methodNatural inhalation
Emission standardEPA/ERUO5
Fuel tank capacity5L


Attachments & Parts

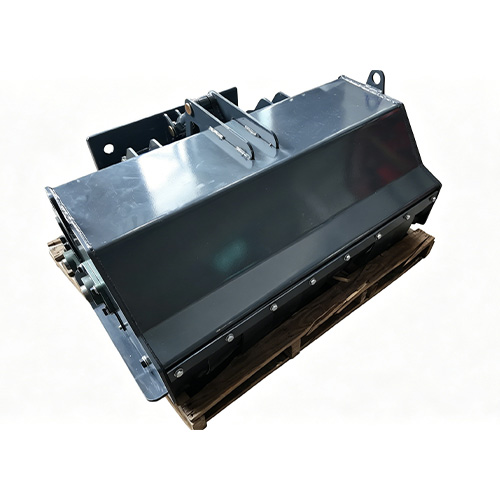

Brush Cutter
Brush Cutter

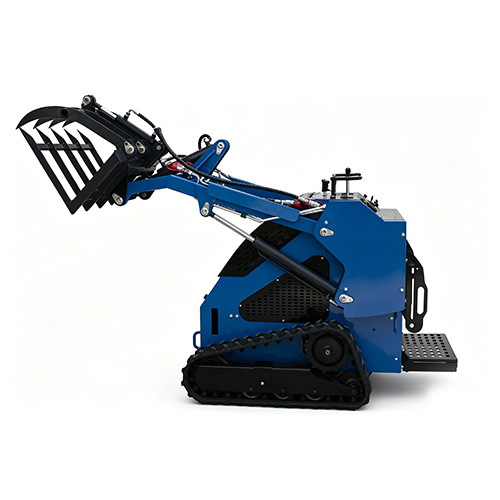

Log Grapple
Log Grapple

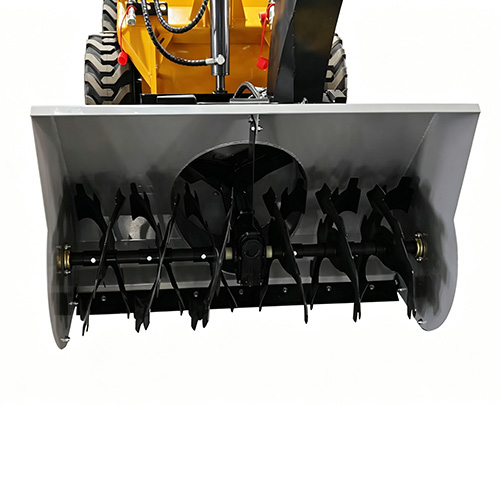

Snow Blower
Snow Blower

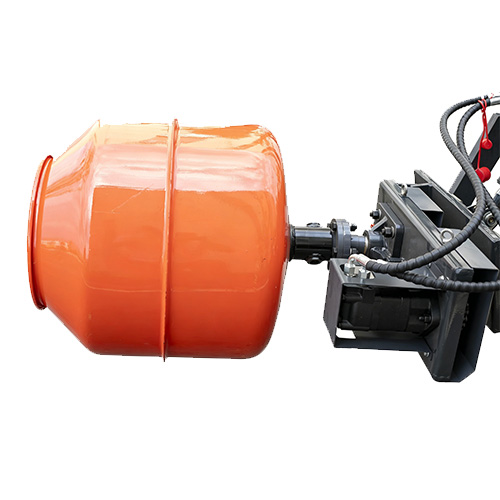

Mixing Bucket
Mixing Bucket

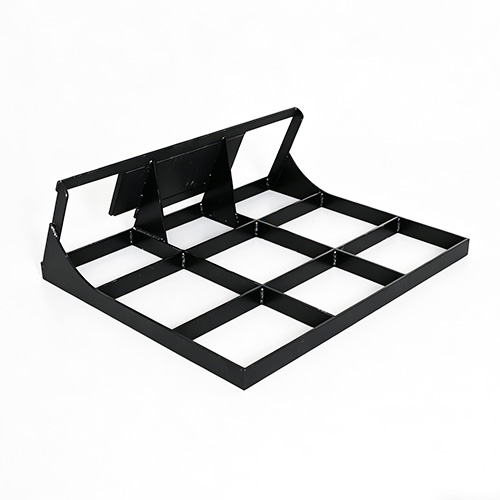

Land Leveler
Land Leveler

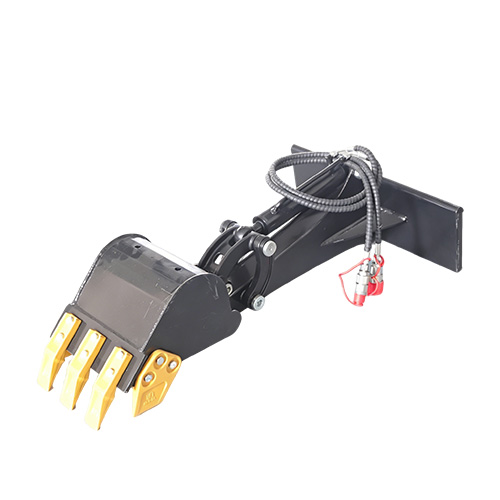

Straight Dig
Straight Dig

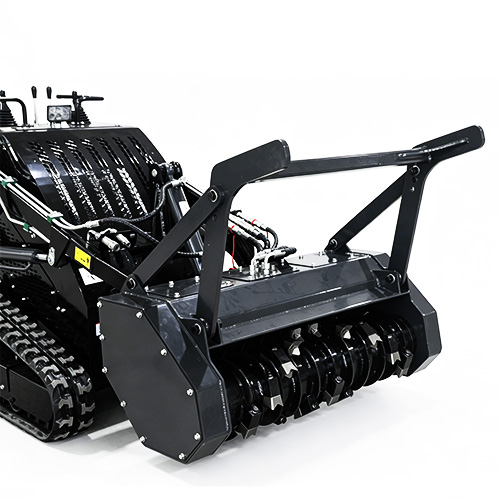

Land Reclamation Machine
Land Reclamation Machine

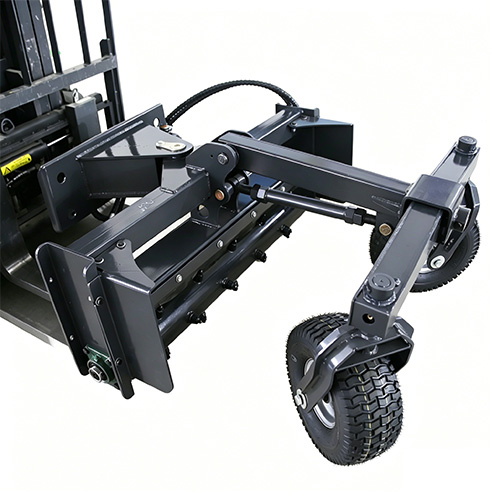

Soil Conditioner
Soil Conditioner

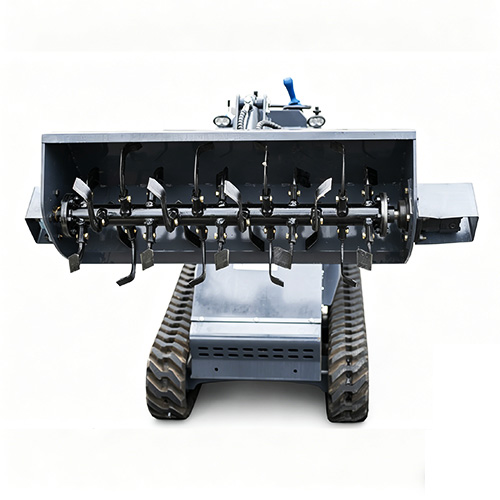

Rotary Tiller
Rotary Tiller

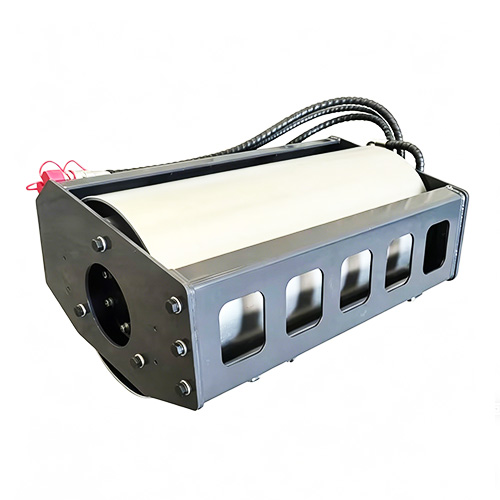

Road Roller
Road Roller

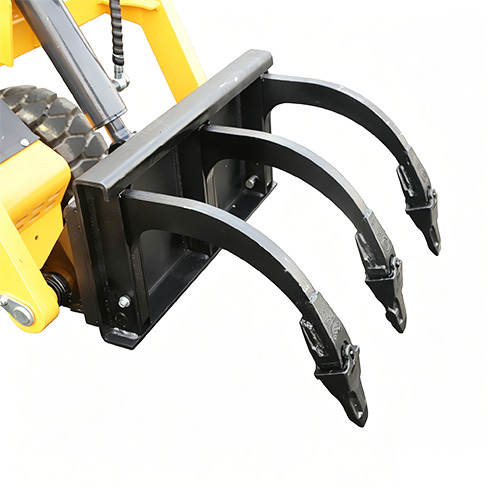

Single Ripper
Single Ripper

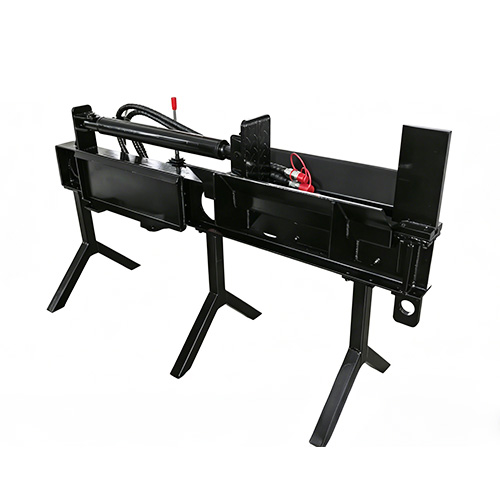

Wood Splitter
Wood Splitter

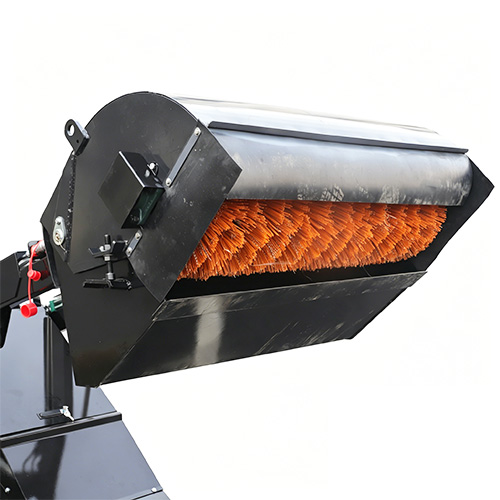

Road Sweeper
Road Sweeper

our Advantages

neiye-3

Customization Supported

Logo, Color, Engine, Accessories, etc. We can provide you with exclusive customized services and produce the products you want according to your requirements, including but not limited to Logo customization, color customization, engine customization and accessories customization.

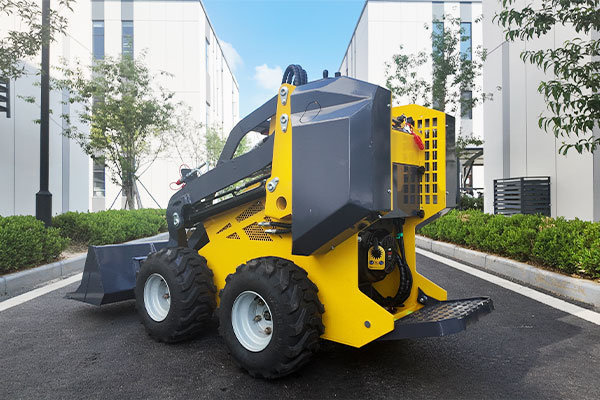

Widened Pedals More Comfortable and Safer

The widened and thickened pedal increases the operator's standing stability, especially when the equipment encounters bumps, vibrations, etc. during driving or operation, which can reduce the risk of the operator slipping and ensuring the operator's safety.

neiye-4

Widened Pedals More Comfortable and Safer

The widened and thickened pedal increases the operator's standing stability, especially when the equipment encounters bumps, vibrations, etc. during driving or operation, which can reduce the risk of the operator slipping and ensuring the operator's safety.

chanpinneiye-3

One-Stop Service

Delivery to your door, convenient and fast. The establishment of multiple overseas warehouses (Europe and North America) allows you to enjoy door-to-door delivery service without leaving your home, which is convenient, fast and efficient.

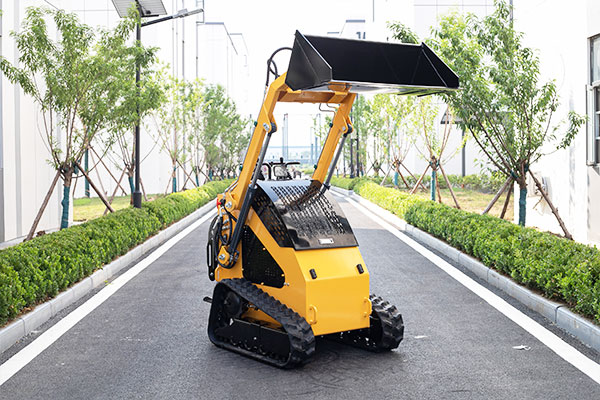

Retractable Crawler Easily Cope With Different Terrains

In complex terrain, telescopic crawlers can improve the operating efficiency of excavators. Proper length adjustment can help excavators avoid sinking into soft soil or landslides, enhancing safety. Good design and maintenance can extend the service life of telescopic crawlers.

chanpinneiye-2

Retractable Crawler Easily Cope With Different Terrains

In complex terrain, telescopic crawlers can improve the operating efficiency of excavators. Proper length adjustment can help excavators avoid sinking into soft soil or landslides, enhancing safety. Good design and maintenance can extend the service life of telescopic crawlers.

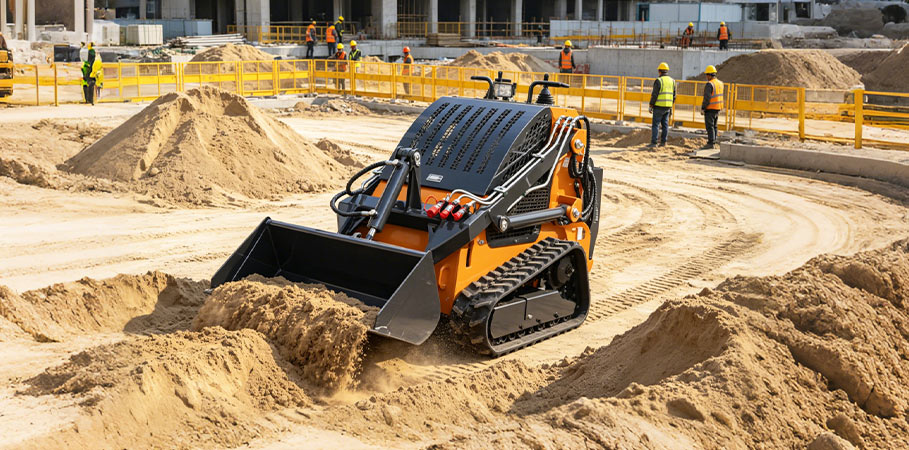

Application Industries

neiye-5

Cstar Machinery is a professional manufacturer of Mini Skid Steer Loader. We have comprehensive certifications, a dedicated after-sales team, and warehouses all over the world,stocking our equipment. We are looking for partners around the world to develop and progress together.
Cstar Mini Skid Steer Loader are easy to operate, offer excellent quality, and are available at competitive prices, making them an excellent choice for personal use, team use, or distribution.
