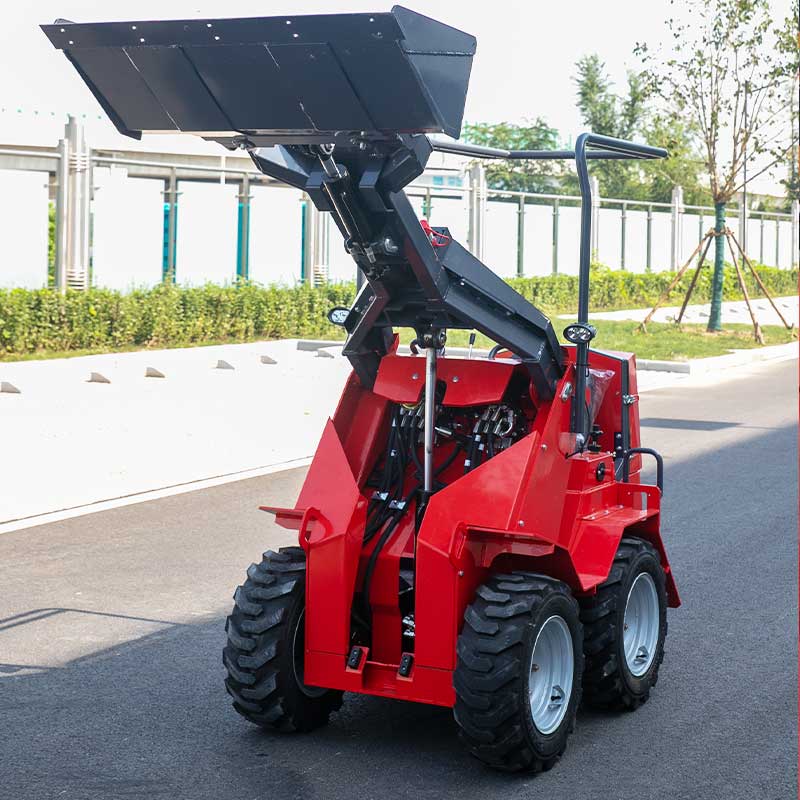

The CSTAR CSGL-S390 Mini Skid Steer Loader has a 200 kg rated load, a 0.12 m³ bucket and a listed 9 s three-item working cycle.
It also provides a listed 600 mm dumping distance, giving the S390 two useful comparison figures that do not rely on rated load alone.
CSGL-S390 Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| General | Model | CSGL-S390 |
| Performance | Operating Weight | 1050kg |
| Performance | Bucket Capacity | 0.12m³ |
| Performance | Climbing Ability | 25° |
| Performance | Maximum Breakout Force | 3.5KN |
| Performance | Rated Load | 200kg |
| Performance | Maximum Load | 300kg |
| Performance | Travel Speed | 0-6km/h |
| Performance | Three-item Sum of Work | 9s |
| Hydraulic System | Working System Pressure | 17bar |
| Bucket | Bucket Width | 1050mm |
| Working Range | Max Loading Height | 1830mm |
| Working Range | Max Dumping Height | 1470mm |
| Working Range | Max Operating Height | 2620mm |
| Working Range | Height to Bucket Pin | 2000mm |
| Working Range | Max Height Bucket Dump Angle | 63° |
| Dimensions | Min Height | 1250mm |
| Dimensions | Tail Length | 220mm |
| Chassis | Ground Clearance | 180mm |
| Working Range | Dumping Distance | 600mm |
| Chassis | Wheelbase | 800mm |
| Dimensions | Overall Dimensions | 2400*1050*1250mm |
| Dimensions | Length Including Bucket | 2400mm |
| Dimensions | Length Excluding Bucket | 1900mm |

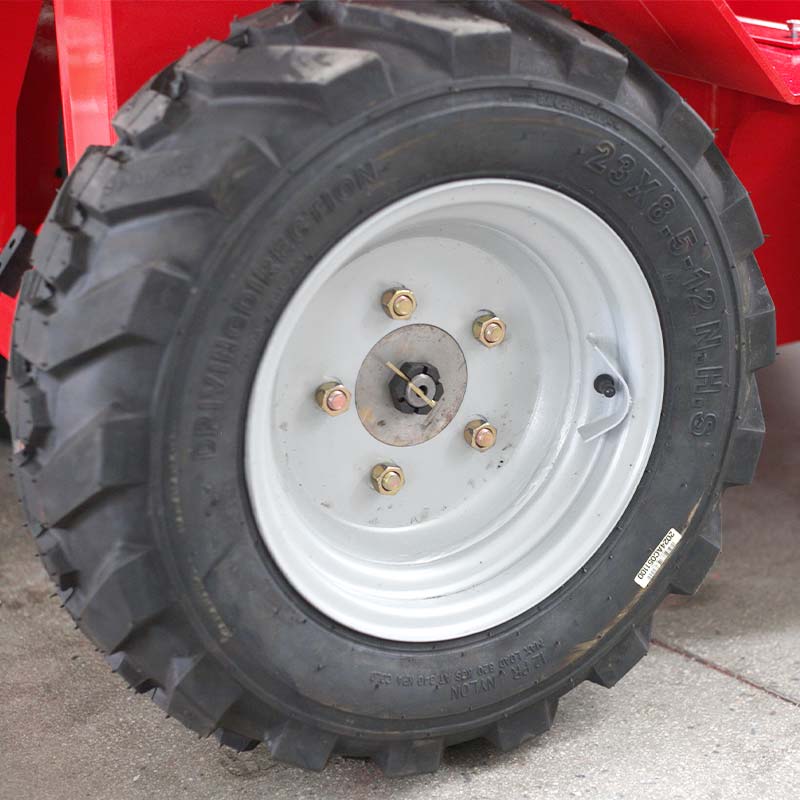

| Tires | Tire Model | 23*8.5-12 |
| Power System | Brand | Lithium electricity/KOOP/Rato/B&S |
| Power System | Model | Lithium iron phosphate/192FH/R420D/XR13.5 |
| Power System | Rated Power | 6kw、72V、125ah/7.5/8.6/9/9.9kw |
| Engine | Cylinder | 1 |
| Engine | Intake Method | Natural inhalation |
| Engine | Emission Standard | EPA/ERUO5 |
| Engine | Fuel Tank Capacity | 5L |
9-Second Working Cycle
The specification lists a 9-second three-item working cycle. For repetitive bucket work, this gives a direct cycle-time figure that most of the smaller models in this range do not list.
600 mm Dumping Distance
The 600 mm dumping distance can matter when the bucket needs to reach past the edge of a cart, bin or receiving point.
Request a CSGL-S390 Quote
Send the material, required cycle frequency, receiving point dimensions and destination country.
